Overview

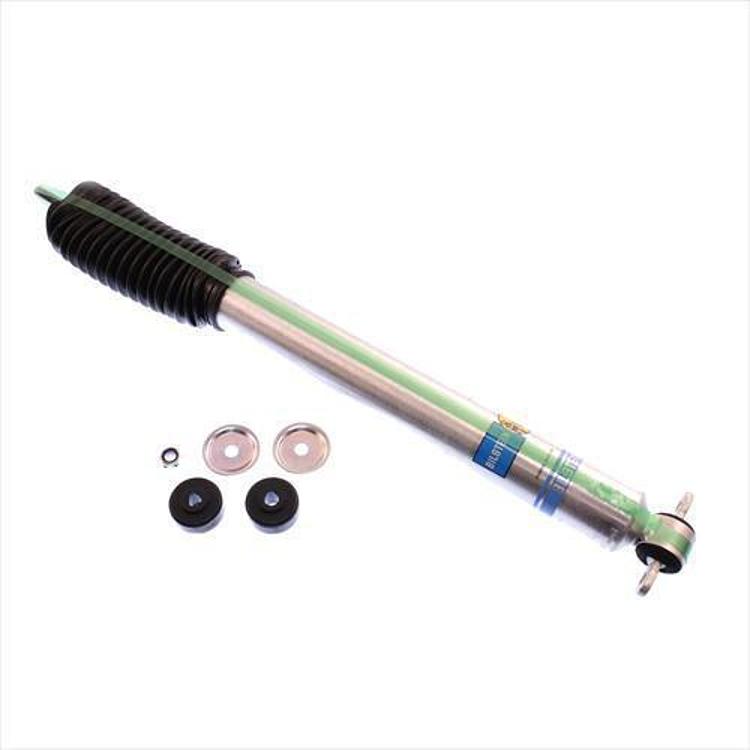

The Bilstein 24-187190 is a 5100 Series front shock absorber for the Jeep Wrangler. It fits the 1997 to 2006 TJ and the 2004 to 2006 LJ generation, including Unlimited and Rubicon trims. It has a w/4.5 in lift range, a bar pin lower mount, a stem upper mount and a 14mm shaft.
This smooth-body, non-coilover model has a 46mm ID body, monotube design and high gas pressure. Its collapsed length is 16.51 in and its extended length is 26.5 in, giving 9.99 in of travel, which is the longest travel in this set of 5100 Series front shocks.
Key features
- Monotube construction with high gas pressure
- Self-adjusting deflecting disc valving
- High-flow piston meant to reduce harshness
- Independent rebound and compression tuning
- Larger working piston area for damping control
- Boot included
Front shock and alignment
The front shocks on a Wrangler work through steering and suspension geometry as well as ride control. They damp the movement of the axle over washboard and trail rocks, and a worn unit can make the front end wander or chatter at speed. When a lift is involved, the shock is only one part of a changed geometry, so the rest of the front end needs attention too.
Front shocks are usually replaced as a pair so both sides damp the same way. Check the upper and lower mounts for wear and the bar pin for looseness before installation. Steering components such as tie rod ends and the track bar are often inspected at the same time, since they affect how the front shocks feel once the truck is back on the road.
- Check the bar pin for play
- Inspect the stem mount for cracks
- Look at tie rod ends during the same service
- Replace front shocks in pairs
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-187190 |
| UPC | 651860602790 |
| Shock series | 5100 Series |
| Position | Front |
| Fitment type | Direct fit |
| Lift range | w/4.5 in lift |
| Collapsed length | 16.51 in |
| Extended length | 26.5 in |
| Travel length | 9.99 in |
| Lower mount | Bar pin |
| Upper mount | Stem |
| Shaft diameter | 14mm |
| Body design | 46mm ID smooth body (non-coilover) |
| Internal design | Monotube |
| Reservoir | No |
| Gas charge | Gas charged |
| Finish | Zinc plated |
| Boot | Included |
Vehicle fitment
It fits 2004–2006 Jeep Wrangler (LJ), including Unlimited and Unlimited Rubicon, and 1997–2006 Jeep Wrangler (TJ), including the 65th Anniversary Edition and Rubicon, SE, Sahara, Sport and X trims.
Wrangler JK and JL models and other Jeep and Cherokee models are not in this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Because this shock is for a 4.5 in lift range, check front alignment after installation and, if the lift changes ride height, check driveline angles as well.
What’s included
One Bilstein 5100 Series front shock absorber, part 24-187190, with the boot included. Not included: any lift kit parts, since none are described with this shock.
