Bilstein 5100 Series Ride Height Adjustable Shock Absorber – 24-187466

Bilstein

Shop Ford F-150 Shock Absorbers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Bilstein 24-187466 5100 Series ride height adjustable front shock absorber
  • Listed fitment: 2009–2013 Ford F-150 (FX2, Harley-Davidson Edition, King Ranch, Lariat, Lariat Limited, Limited, Platinum, STX, XL, XLT)
  • Collapsed length 16.22 in., extended length 21.91 in., travel 5.69 in.
  • Lift listed at 0 to 2.5 in., zinc plated, gas charged
  • No boot included, UPC 651860650685

Description

Overview

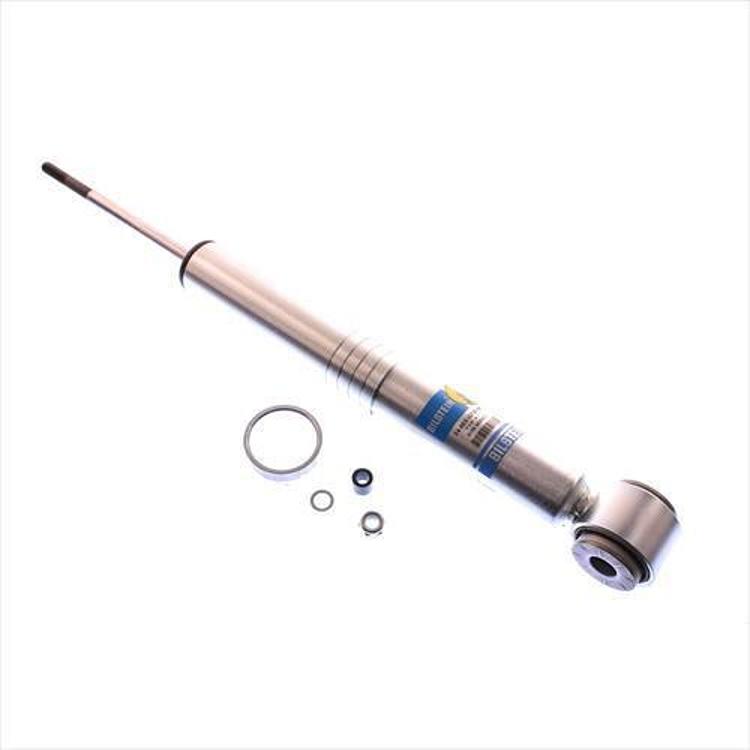

The Bilstein 24-187466 is a 5100 Series ride height adjustable front shock absorber for 2009–2013 Ford F-150 trucks. It is a zinc plated monotube gas pressure shock with a coilover style body, and it is a direct fit with 0 to 2.5 inches of lift.

The shock repositions the OEM spring seat to add preload to the factory spring, correcting nose-down rake for a level ride height from front to rear. The design accommodates larger wheels and tires, including a 33 inch tire, and offers a more practical approach than strut extension or spring pre-load spacer kits.

Key features

  • Repositions the OEM spring seat to add preload and correct factory nose-down rake
  • Snap ring grooves on the shock body provide up to 2.75 inches of front end lift, depending on application
  • Increased wheel travel, which Bilstein says accommodates a 33 inch tire
  • Monotube gas pressure construction
  • Zinc plated finish
  • Application specific design available for many popular light trucks and SUVs

Choosing a lift height

Front shocks with a ride height adjustable design work by changing how the spring sits, not by changing the shock’s own length alone. When a truck sits nose-down, the front end can look and handle unevenly, and a spring seat that adds preload can bring the front up toward the rear. Preload helps with a level stance, but it also changes how the suspension responds near the limit of travel, so the adjustment should match how the vehicle is loaded and driven.

Before choosing a lift setting, measure the current front ride height and note how the tires sit under the fenders. A taller tire needs more clearance at full steering lock and at full compression. Driveline angles, steering geometry and brake hose length can all change with a higher front end, so review those items alongside the shock.

  • Measure stock front ride height before ordering
  • Plan for an alignment check after any ride height change
  • Inspect brake lines and steering linkage for clearance
  • Replace worn bushings during installation to avoid uneven travel

Specifications

Brand Bilstein
Part number 24-187466
UPC 651860650685
Shock series 5100 Series
Position Front
Fitment type Direct fit
Lift height 0 to 2.5 in.
Collapsed length 16.22 in.
Extended length 21.91 in.
Travel length 5.69 in.
Lower mount Eye, 20.3mm
Upper mount Stem
Shaft diameter 14mm
Body design 46mm ID snap ring grooved body (coilover)
Internal design Mono tube
Reservoir No
Finish Zinc plated
Boot included No
Hydraulic / gas charged Gas charged

Vehicle fitment

The manufacturer fitment list covers the 2009–2013 Ford F-150 in the FX2, Harley-Davidson Edition, King Ranch, Lariat, Lariat Limited, Limited, Platinum, STX, XL and XLT trims.

Model years outside 2009–2013 are not covered by this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

This shock installs like a factory replacement shock. Because the spring seat is repositioned and front lift varies by application, check front ride height and alignment after installation. Support the vehicle securely before removing the factory shocks.

What’s included

Not included: A boot is not included with this shock.

SKU: BIL24-187466 Category:

Specification

Shipping weight 4.63 lbs
Package dimensions 26.80 × 3.00 × 3.00 in
brands

Fitment

VehicleYearsTrims
Ford F-1502009–2013FX2, Harley-Davidson Edition, King Ranch, Lariat, Lariat Limited, Limited, Platinum, STX, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Bilstein 24-187466 fit a 2015 Ford F-150?

No. It fits 2009 to 2013 Ford F-150 trucks in the FX2, Harley-Davidson Edition, King Ranch, Lariat, Lariat Limited, Limited, Platinum, STX, XL and XLT trims. Other model years are not covered, so confirm fit for your vehicle's year, model and trim before ordering.

How much lift does this shock provide?

It provides 0 to 2.5 inches of lift. Snap ring grooves on the body allow up to 2.75 inches of front end lift, depending on application, so the result depends on the vehicle setup.

What are the collapsed, extended and travel lengths?

Collapsed length is 16.22 inches, extended length is 21.91 inches and travel length is 5.69 inches. The lower mount is a 20.3mm eye and the upper mount is a stem with a 14mm shaft diameter.

Does the 5100 Series come with a boot?

No. A boot is not included with the 5100 Series, and the shock has no reservoir. Its internal design is monotube, so the damping is handled inside a single tube.

What does ride height adjustable mean for this shock?

It repositions the factory spring seat to add preload, which corrects nose-down rake and gives a level front to rear ride height. It also accommodates larger wheels and tires, including a 33 inch tire.

How often should front shocks be inspected?

Inspect them at every tire rotation or oil change. Look for oil seeping from the body, a bent or scored shaft, worn bushings and a front end that keeps bouncing after bumps. Replace shocks in pairs so both sides damp the same way.
