Overview

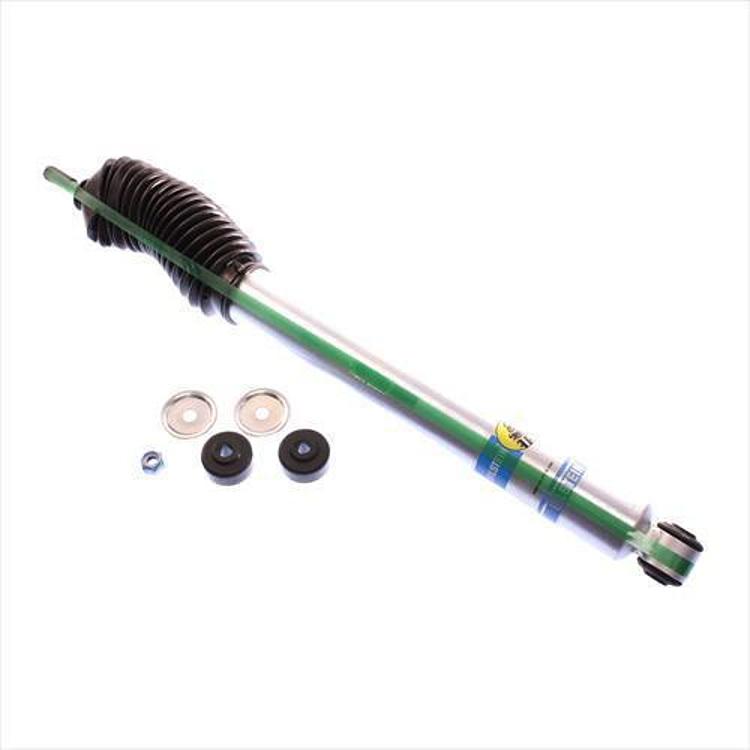

The Bilstein 5100 Series front shock absorber, part number 24-186872, is a gas charged monotube shock for the 2007–2018 Jeep Wrangler (JK), including the Rubicon, Sahara, Sport, Sport S and X trims and their Unlimited versions. It is designed for lift heights of 3.5 to 5 in.
Bilstein built the 5100 Series for lifted trucks, Jeeps and prerunners, with large-diameter tires in mind. The single tube design uses high gas pressure for consistent damping, and the piston arrangement gives independent rebound and compression tuning. Extended length is 27.56 in, collapsed length is 16.41 in and travel is 11.15 in.
Key features
- Monotube gas pressure construction
- Self-adjusting deflecting disc valving
- High-flow piston intended to reduce harshness
- Independent rebound and compression tuning
- Larger working piston area for exact damping
- Designed for specific manufacturer lift kits that use the stock OEM mounting configuration
- Boot included
Matching a lift and mounts
Front shock length and lift height are closely tied. A shock that is too short can bottom out when the suspension droops, while one that is too long can strain the mounts and limit steering. Measure the installed length of your current shock and compare it with the collapsed and extended figures before ordering, then confirm the lift height on your truck falls within the design range.
The stem upper mount and eye lower mount need to line up with the stock mounting points or lift kit brackets. Check bushings and the boot for cracks, since a torn boot lets grit reach the shaft. After installation, cycle the steering through full lock and check for clearance against the tire and sway bar links.
- Measure installed length before ordering
- Check stem and eye bushings for wear
- Inspect the boot and shaft for damage
- Recheck clearance after the first drive
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-186872 |
| UPC | 651860592640 |
| Shock series | 5100 Series |
| Position | Front |
| Collapsed length | 16.41 in |
| Extended length | 27.56 in |
| Travel length | 11.15 in |
| Lower mount | Eye, 12.1mm |
| Upper mount | Stem |
| Shaft diameter | 14mm |
| Body design | 46mm ID smooth body, non-coilover |
| Internal design | Monotube |
| Gas charged | Yes |
| Reservoir | No |
| Finish | Zinc plated |
| Boot included | Yes |
| Lift height | w/3.5 – 5 in. lift |
| Sold as | Each |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2007–2018 Jeep Wrangler (JK) in Rubicon, Sahara, Sport, Sport S, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited Sport S, Unlimited X and X trims.
The JL and JT generations and other Jeep models are not on this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The upper mount is a stem and the lower mount is an eye, so compare both ends with your existing mounts before fitting. Check that your lift height falls within the listed 3.5 to 5 in range.
What’s included
A Bilstein 5100 Series front shock absorber with boot, sold as each.
