X2O 12K GEN2 Comp Series 12000lb Wireless Winch

Smittybilt

Shop Smittybilt Winchs on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 12000 lb X2O 12K GEN2 Comp Series wireless winch
  • Synthetic rope with a hawse fairlead
  • Waterproof 500 amp solenoid pack and a 6.6 hp sealed motor
  • Part number 98512

Description

Overview

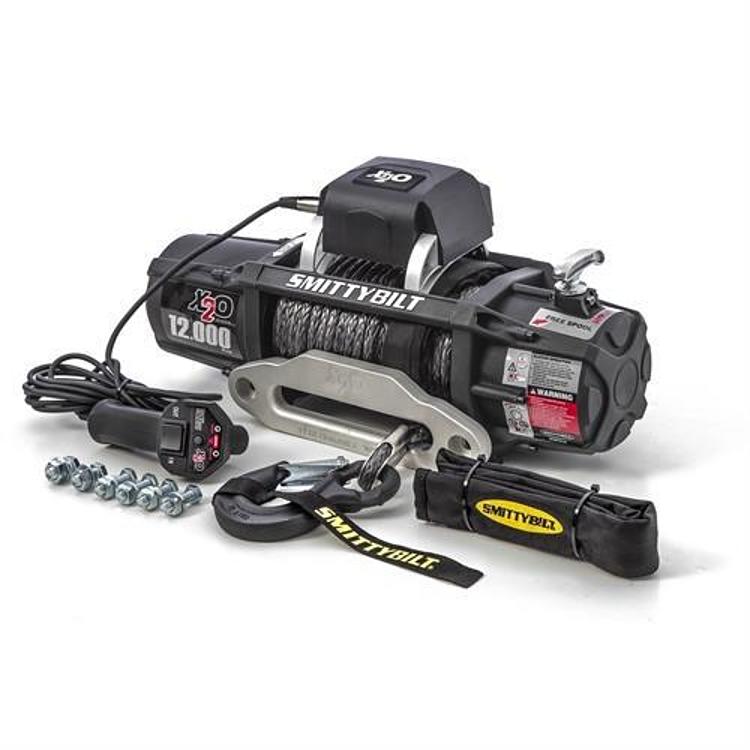

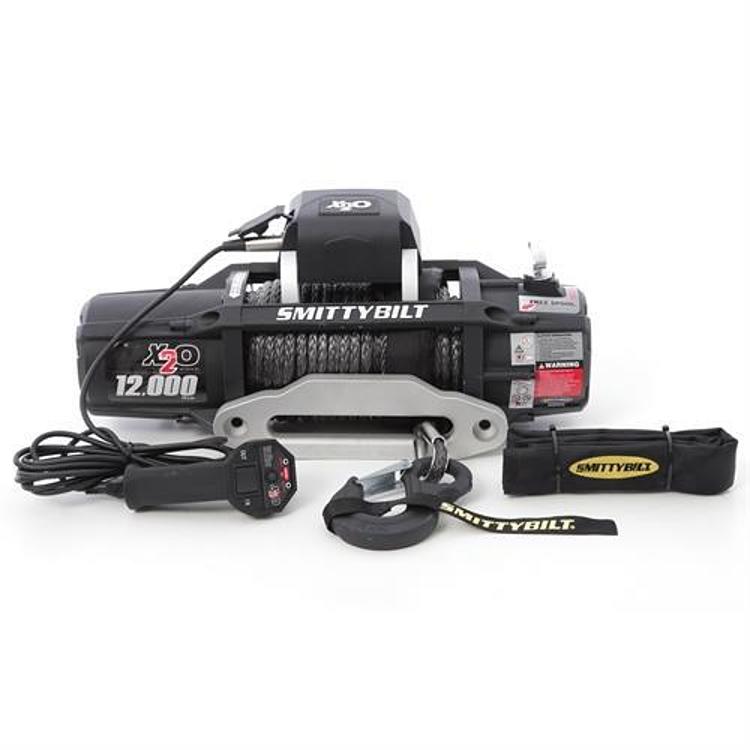

The Smittybilt 98512 is the X2O 12K GEN2 Comp Series winch, rated for 12000 lb line pull and fitted with synthetic rope on a hawse fairlead. The Comp Series is Smittybilt’s synthetic option within the X2O line, and it keeps the same core features as the cable version.

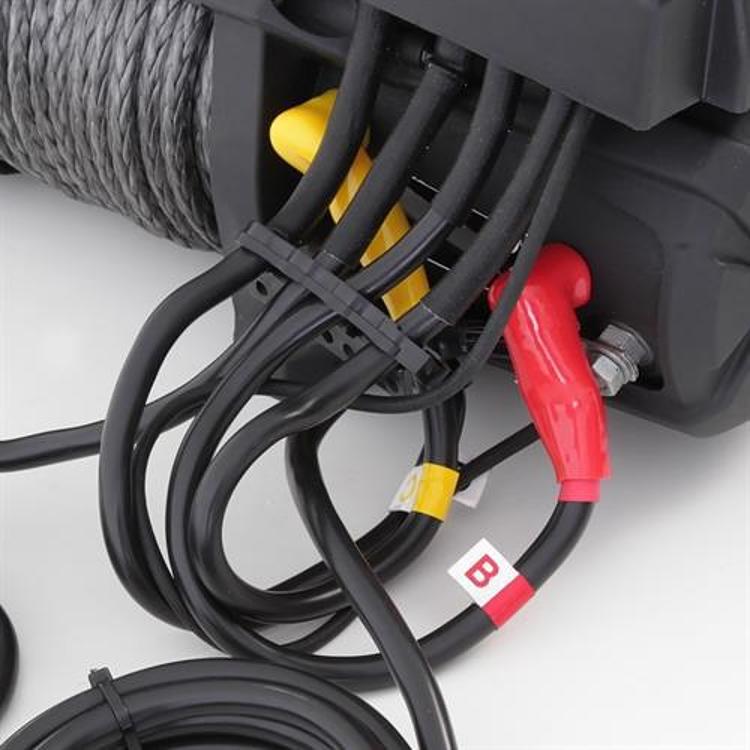

The winch has a sealed, series-wound 6.6 hp motor and a three-stage planetary gear train. A waterproof 500 amp solenoid pack mounts in one of two locations. The motor is the same series-wound unit used across the GEN2 X2O range.

The controller can be wired to the winch or unplugged for wireless use. The optimized gear ratios deliver quick line speeds, and the winch carries a Lifetime Mechanical Warranty and a 3 Year Electrical Warranty.

Key features

  • 12000 lb rated line pull
  • Synthetic rope with a hawse fairlead
  • Sealed, series-wound 6.6 hp motor
  • Three-stage planetary gear train

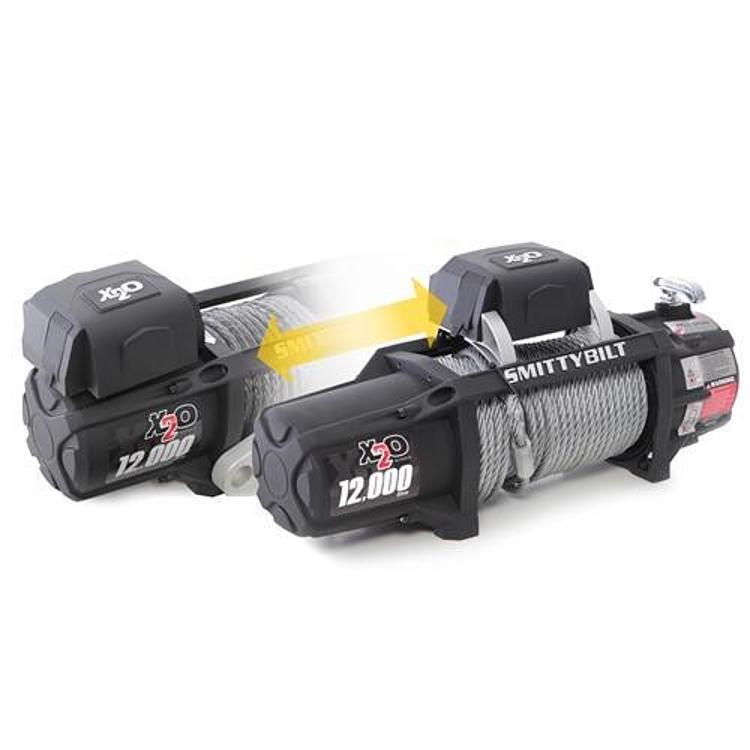

  • Waterproof 500 amp solenoid pack, mountable in two locations
  • Wireless controller that can be wired to the winch

Choosing synthetic for the trail

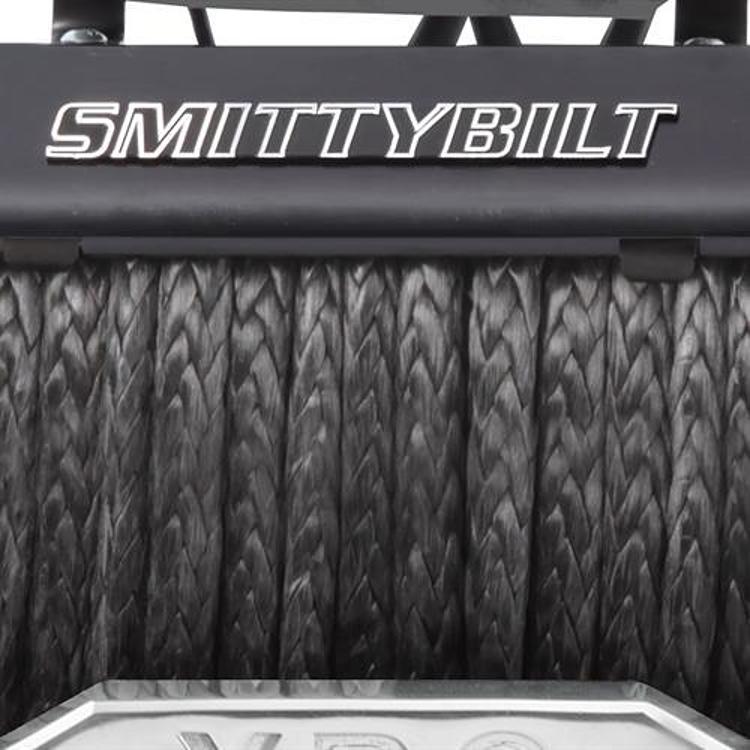

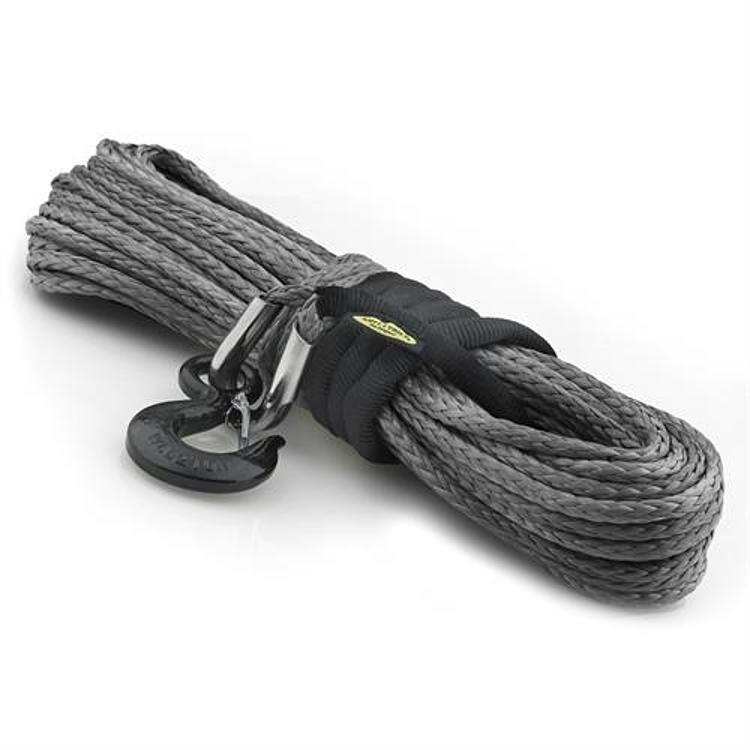

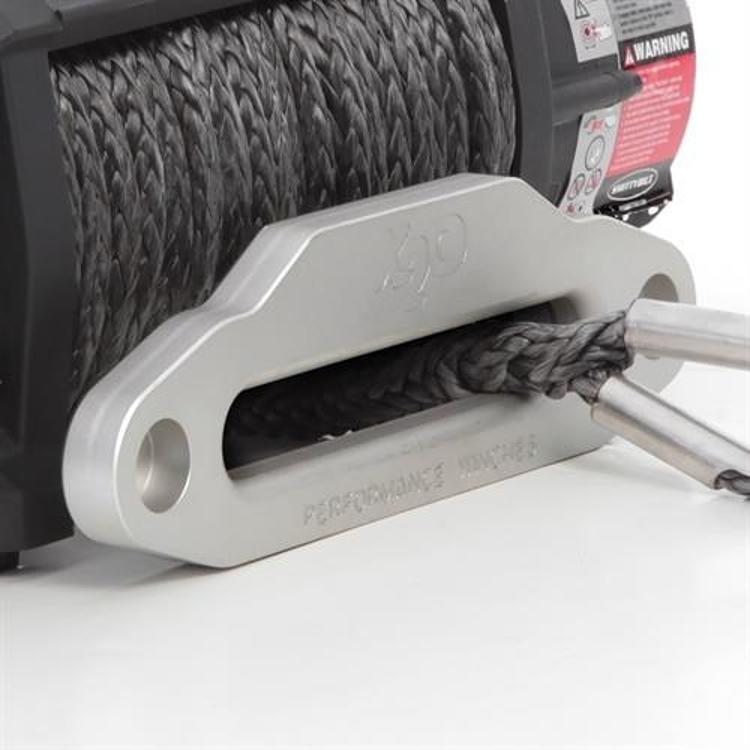

Synthetic line suits trail work where the rope is handled often and the winch is used in tight spots. It is lighter than cable and does not hold kinks, which makes it easier to spool and carry. The trade-off is sensitivity to abrasion and heat, so the rope should stay clear of rock edges and hot exhaust. Pairing the rope with the hawse fairlead it is supplied with helps keep the line tracking cleanly as it spools.

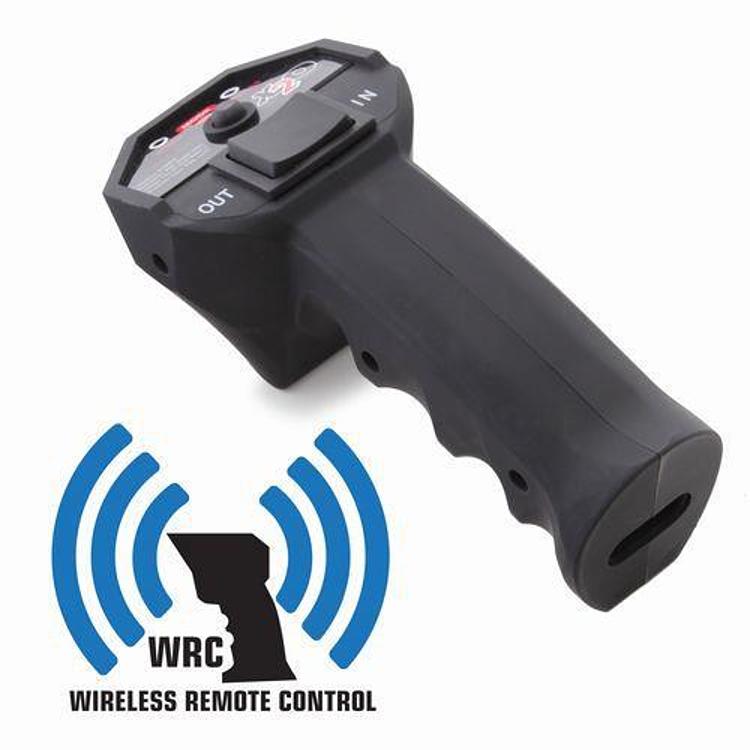

The wireless controller adds flexibility at the winch. Unplug it when you want to stand well back from the line, and keep it in a dry pocket or case between pulls. Before each trip, check the rope for cuts, confirm the solenoid pack is seated, and keep the fairlead clear of mud and grit. Clean the rope after muddy use and let it dry before coiling it away.

  • Keep the synthetic rope clear of rock edges and exhaust heat
  • Clean the rope after muddy use before storing
  • Keep the controller dry between pulls

Specifications

Brand Smittybilt
Part number 98512
UPC 631410119589
Rated line pull 12000 lb
Line type Synthetic rope
Fairlead Hawse
Motor 6.6 hp, series wound, sealed
Gear train 3-stage planetary
Solenoid pack 500 amp, waterproof, two mounting locations
Warranty Lifetime mechanical, 3 year electrical

Vehicle fitment

Fit depends on the bumper and mounting plate on your vehicle. Confirm fit for your vehicle’s year, model and trim before ordering.

Confirm your vehicle’s year, model and trim before ordering.

What’s included

The wireless controller is part of the package. Mounting hardware and the remote lead length aren’t itemized, so confirm the contents with Smittybilt before ordering.

SKU: S/B98512 Category:

Specification

Shipping weight 67.00 lbs
Package dimensions 22.30 × 9.40 × 5.40 in
brands

Questions & Answers

What is the line pull of the X2O 12K GEN2 Comp Series 98512?

The 98512 is rated for 12000 lb line pull. It uses synthetic rope and a hawse fairlead, which is the difference from the cable version of the X2O 12K. Smittybilt's Comp Series keeps the same core X2O features while changing the line.

Does the 98512 run wirelessly?

Yes. The controller can be unplugged for wireless operation or wired to the winch. Wireless use is one of the X2O's main features, and the wired option suits anyone who prefers a direct connection.

Is the 98512 waterproof?

Yes. The 500 amp solenoid pack is waterproof and the motor is sealed, so the electrical parts are built for wet use.

Should I wire the controller or use it unplugged?

It depends on how you winch. Wired use gives a direct connection and keeps the controller from being misplaced, while unplugged use lets you stand clear of the line. Either way, keep the controller dry and check its connections before each trip.
