Overview

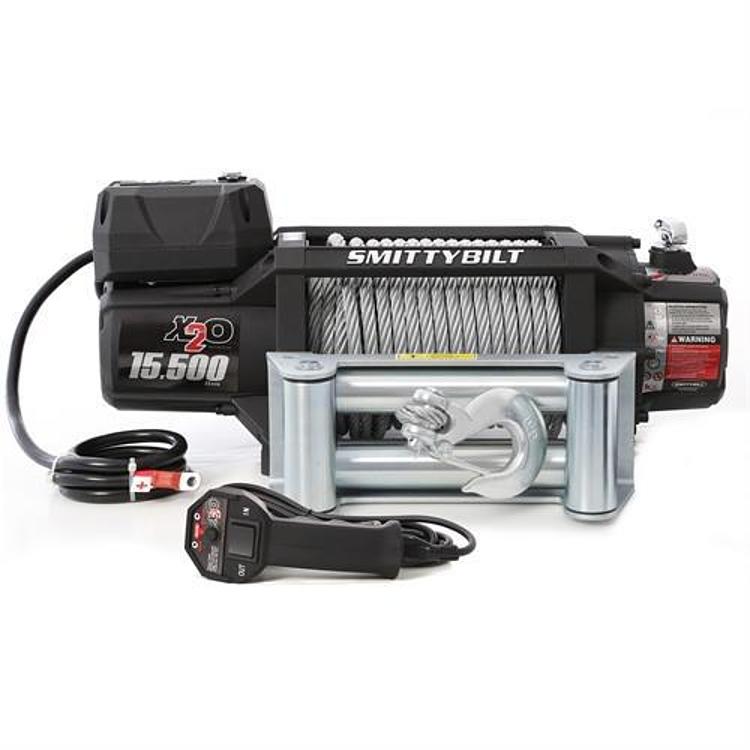

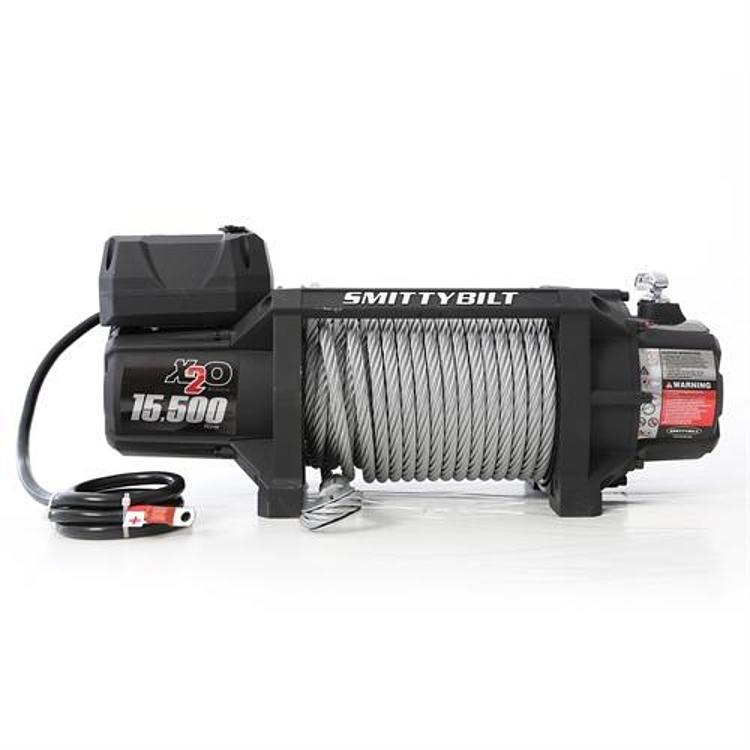

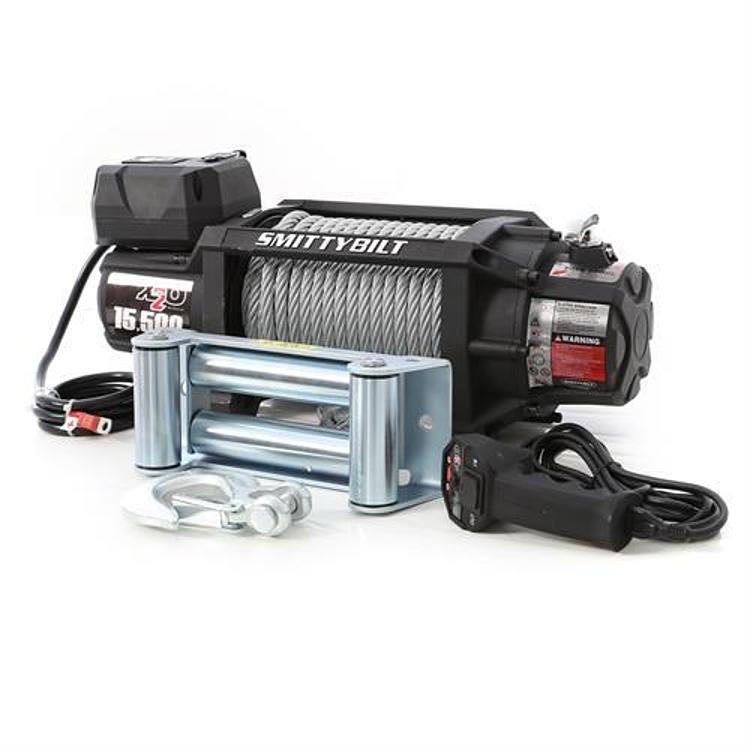

The Smittybilt 97515 is the X2O 15.5K GEN2 winch, rated for 15500 lb line pull and fitted with cable and a roller fairlead. It is the highest-capacity model in the X2O GEN2 lineup covered here, and it uses the same sealed motor and gear layout as the smaller X2O winches.
The motor is a sealed, series-wound 6.6 hp unit paired with a three-stage planetary gear system. The 500 amp solenoid pack is waterproof and can be mounted in either of two locations, depending on the installation.
The optimized gear ratios give quick line speeds, and the controller can be wired to the winch or unplugged for wireless use. The winch carries a Lifetime Mechanical Warranty and a 3 Year Electrical Warranty.
Key features
- 15500 lb rated line pull
- Sealed, series-wound 6.6 hp motor
- Three-stage planetary gear system

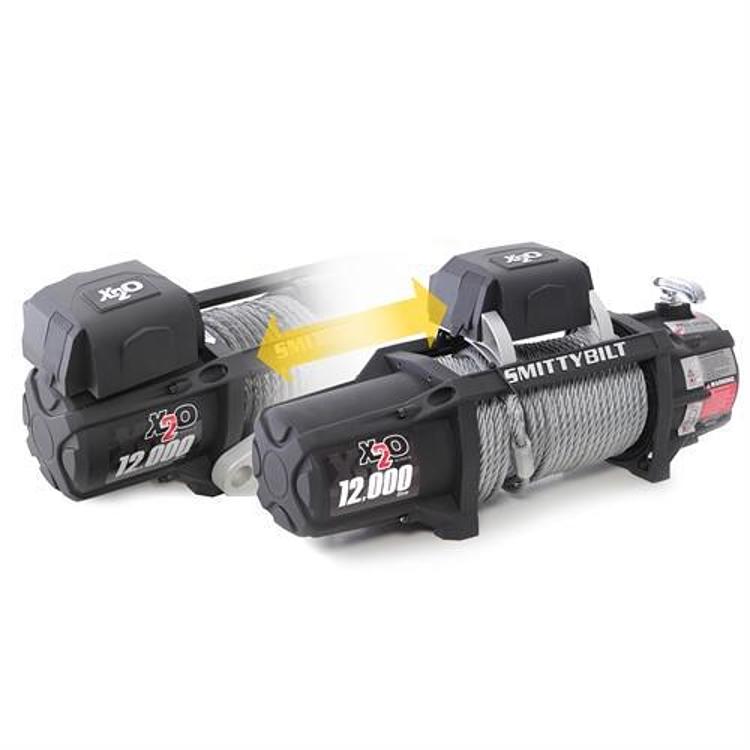

- Waterproof 500 amp solenoid pack, mountable in two locations

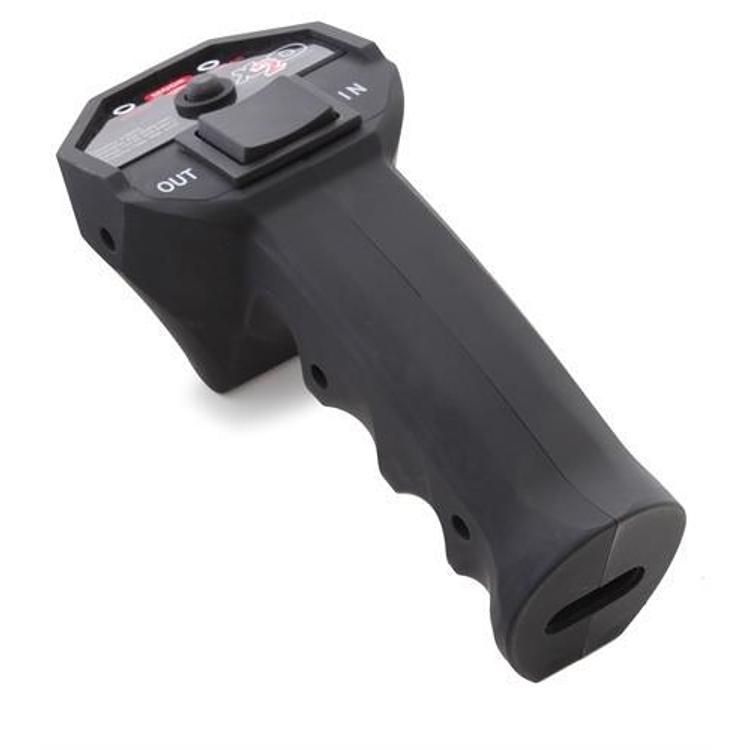

- Wired or wireless controller
- Roller fairlead on cable
Choosing a winch for heavy loads
A rated line pull is the strongest straight-line pull the winch can deliver, and recoveries rarely stay straight. Pulling at an angle, uphill or through soft ground increases the load on the line and the mount, so plan the anchor and the pull direction before you start. Heavy recoveries are safer when the load is shared between the winch and a snatch block or a second anchor, and the rigging is checked before tension builds.
Good electrical health is part of heavy winching. A winch under load draws a lot of current, so keep the battery charged, the terminals clean and the leads tight. Run the controller leads where they will not catch on the drivetrain or sharp body edges. Listen for a slowing motor during a pull, because that often points to a battery or connection problem rather than the winch itself.
- Consider pull angles, which increase the load on the line
- Use a snatch block to reduce load on the winch when rigged correctly
- Keep the battery and terminals in good condition
Specifications
| Brand | Smittybilt |
|---|---|
| Part number | 97515 |
| UPC | 631410119558 |
| Rated line pull | 15500 lb |
| Motor | 6.6 hp, series wound, sealed |
| Gear train | 3-stage planetary |
| Solenoid pack | 500 amp, waterproof, two mounting locations |

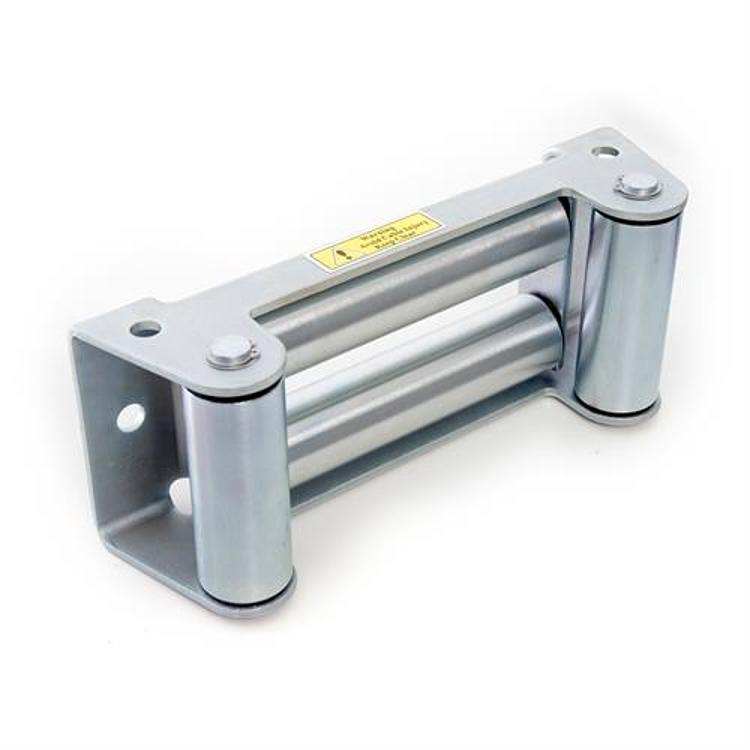

| Fairlead | Roller |

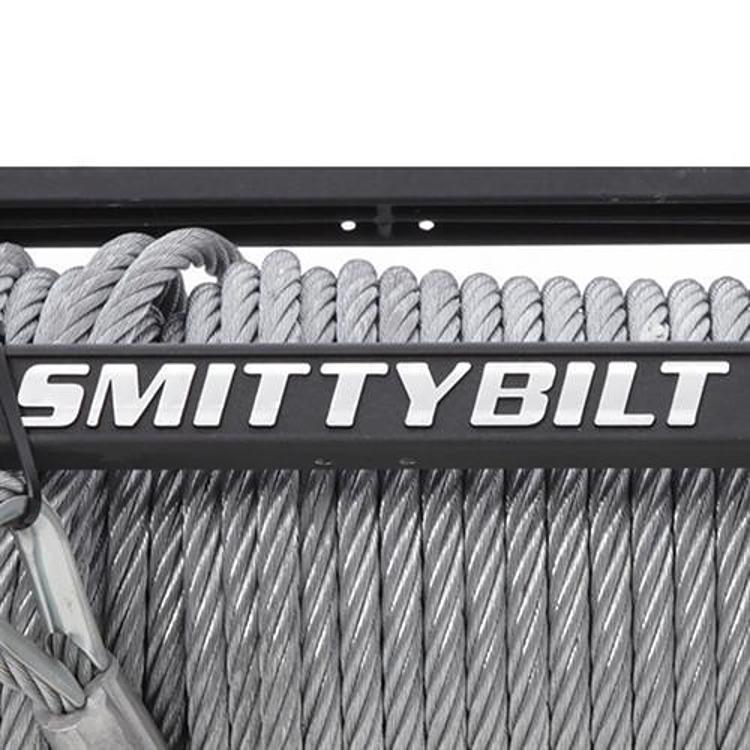

| Line type | Cable |
| Warranty | Lifetime mechanical, 3 year electrical |
Vehicle fitment
Fit depends on the mounting plate and bumper on your vehicle. Confirm fit for your vehicle’s year, model and trim before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes

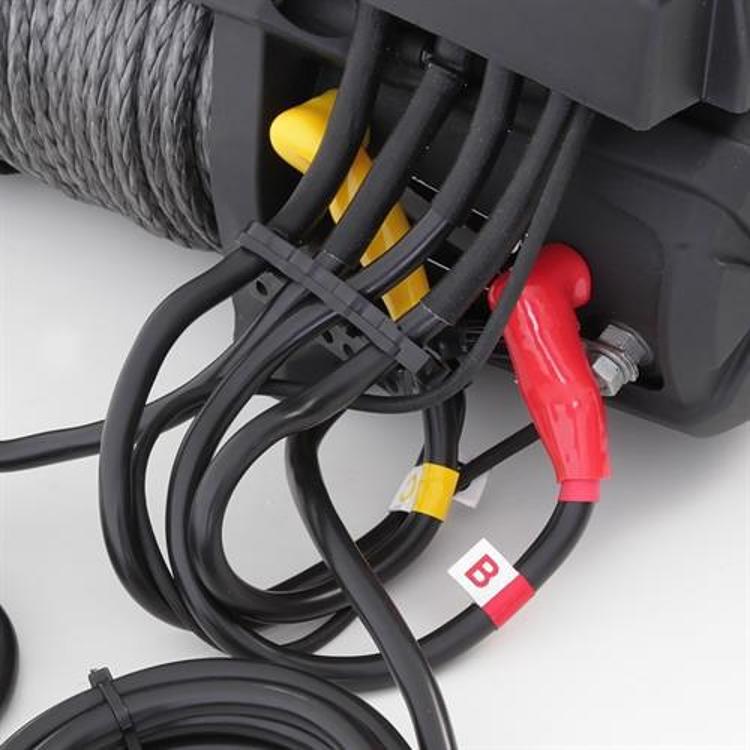

Choose the solenoid pack mounting location before running the leads, and keep the leads clear of the cable and the fairlead. Keep people out of the cable’s path when the winch is loaded.
What’s included
The controller is part of the package. Mounting hardware and battery leads aren’t itemized, so confirm the full contents with Smittybilt before ordering.
