Overview

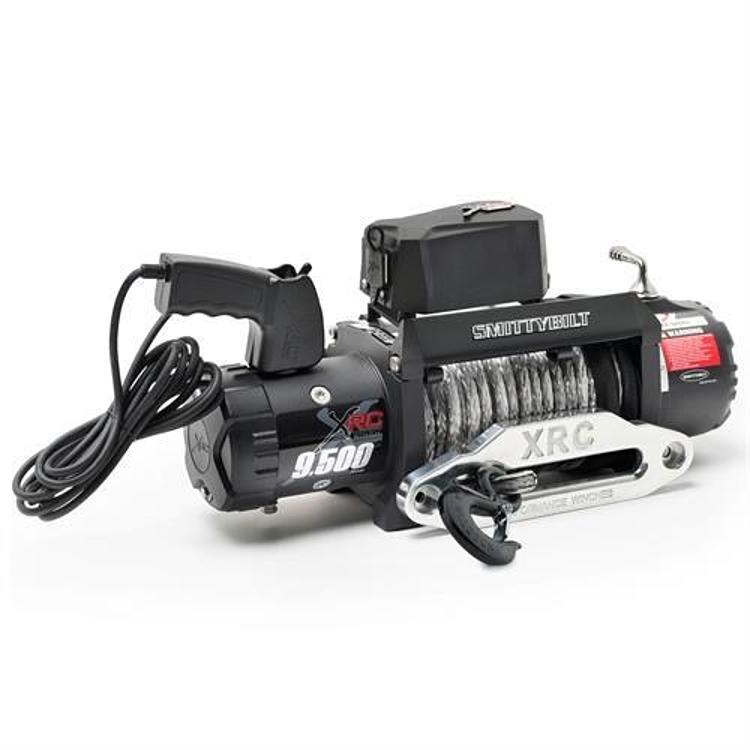

The Smittybilt 98495 is the XRC-9.5K Gen2 winch, rated for 9500 lb and supplied with synthetic rope and an aluminum hawse fairlead. It sits at the entry point of Smittybilt’s XRC range, which Smittybilt says covers capacities from 9,500 lb to 17,500 lb.
This model carries a series-wound 6.6 hp motor and a three-stage planetary gear system with revised gear ratios for stronger pulling and faster line speed.
The finish is a UV-resistant matte black coating over stainless steel hardware and oversized aluminum crossbars. The winch includes a heavy-duty controller, a forged steel tow hook and a solenoid box mountable in three positions.
The winch carries a Lifetime Mechanical Warranty and a 3 Year Electrical Warranty. The remote control has a 12 ft. lead, and the synthetic rope and aluminum hawse fairlead set it apart from the cable models.
Key features
- 9500 lb rated line pull
- Synthetic rope line type
- Aluminum hawse fairlead
- Series-wound 6.6 hp motor
- Three-stage planetary gears with revised ratios

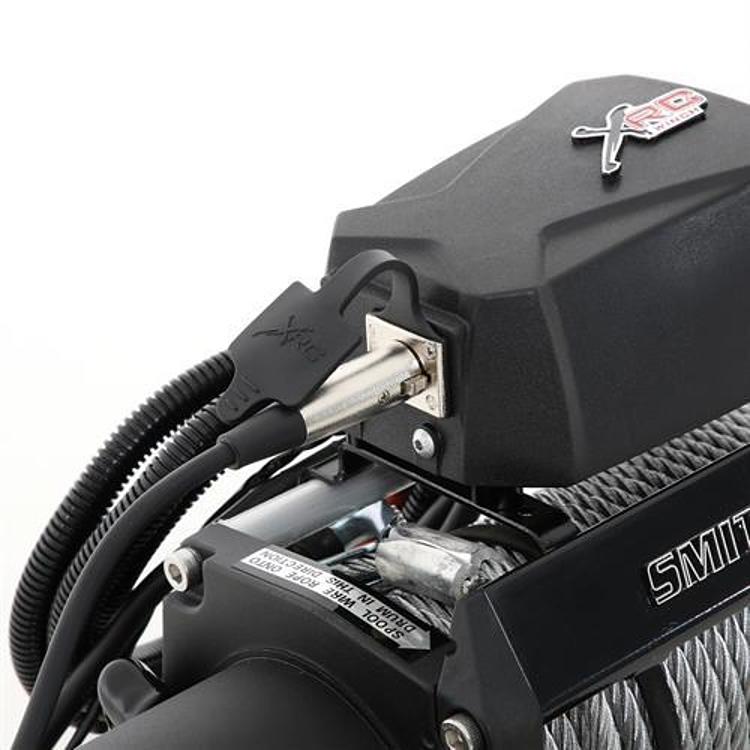

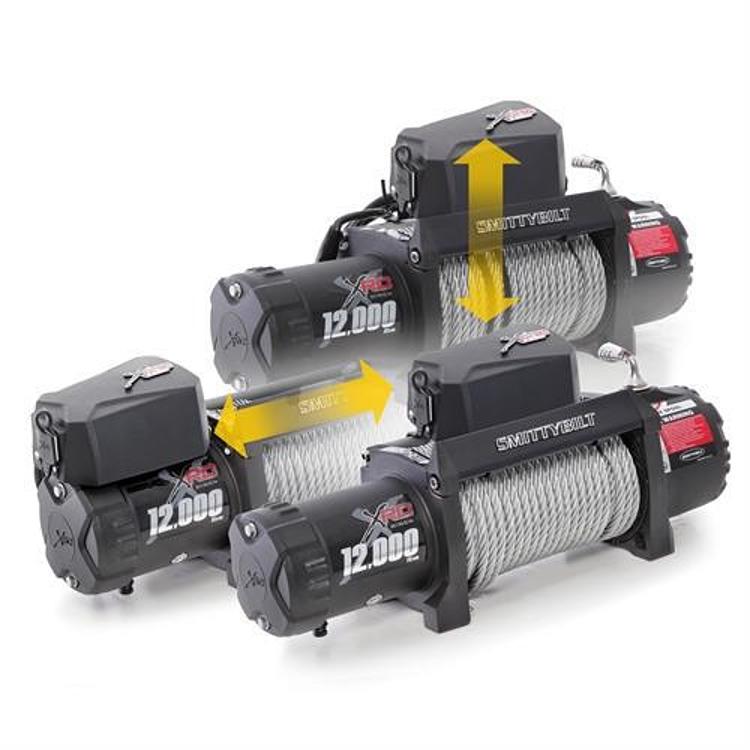

- Solenoid box mountable in three positions
Choosing synthetic over cable

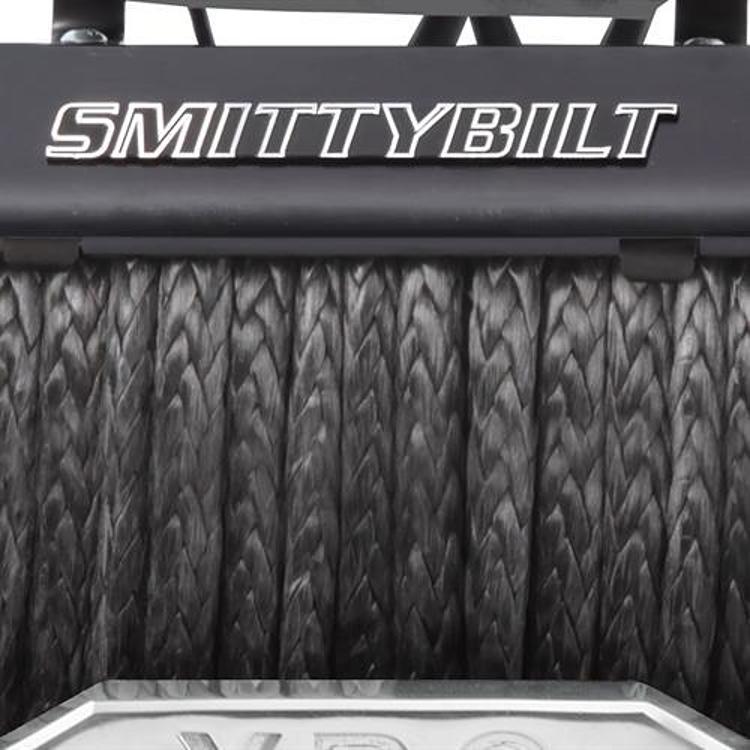

Synthetic rope trades some strength in heat and abrasion for lighter weight, easier handling and no kinking. Many trail users choose it for light to medium recoveries where the rope is handled often. Cable tolerates heat and rough contact better, so the right line depends on how and where the winch is used. Whichever line you run, the fairlead should suit it: a hawse fairlead works with synthetic rope, while a roller fairlead is the common choice for cable.
The rope and the fairlead both wear, so look at them together. Keep the rope off sharp edges and stone, and use a rock guard where it crosses the bumper. Keep the rope wound neatly on the drum under light tension so it does not bind. Replace the rope if the outer strands look worn, and keep the fairlead clean of grit so it does not cut into the fibers during a pull.
- Choose the line type to suit how the winch is used
- Use a fairlead made for the rope in use
- Keep the rope clear of sharp edges and stone
Specifications
| Brand | Smittybilt |
|---|---|
| Part number | 98495 |
| UPC | 631410119510 |
| Rated line pull | 9500 lb |
| Line type | Synthetic rope |

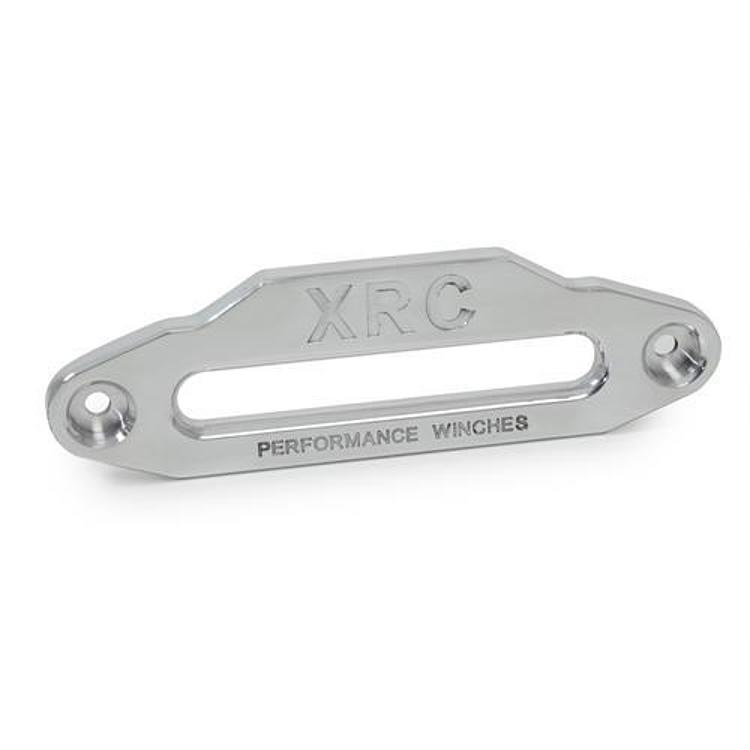

| Fairlead | Aluminum hawse |
| Motor | 6.6 hp, series wound |
| Gear train | 3-stage planetary |

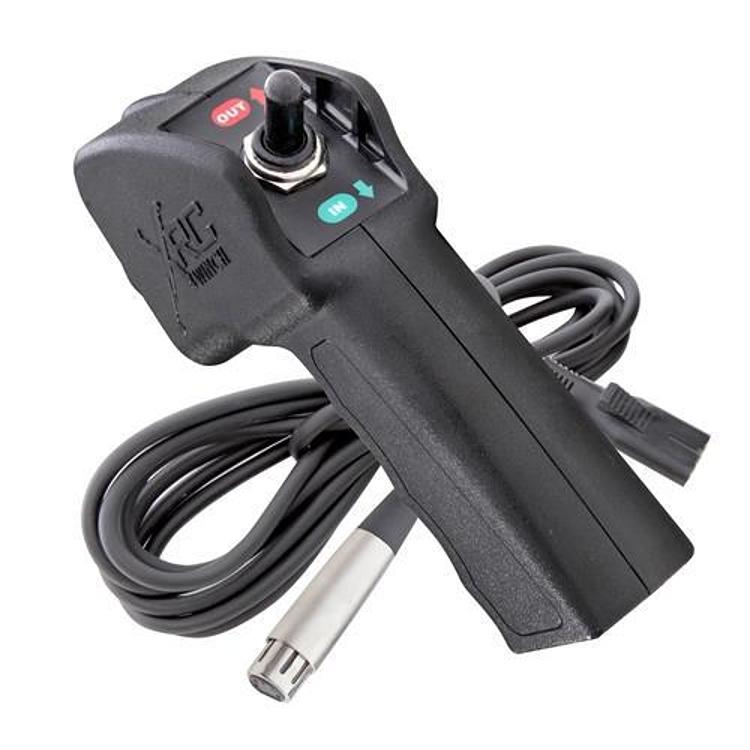

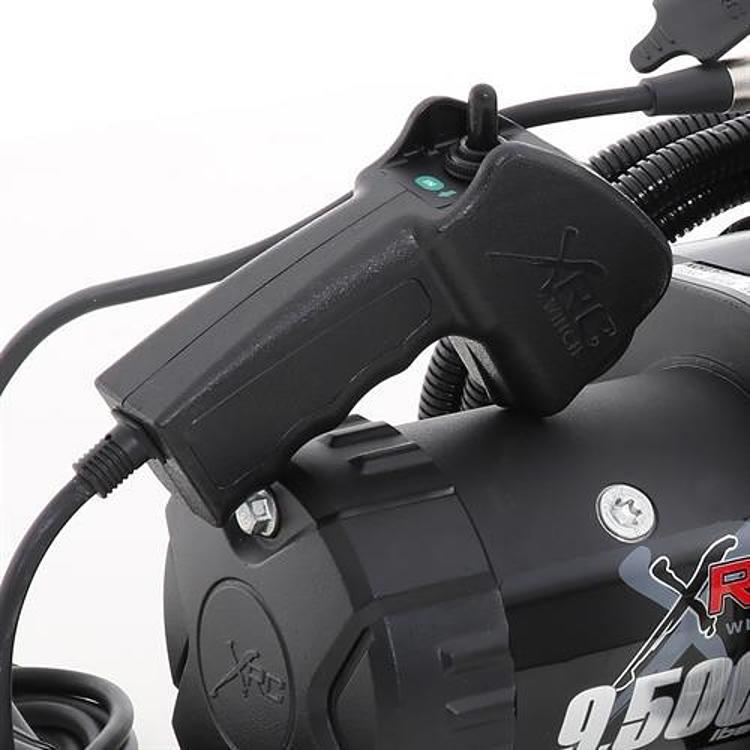

| Remote control | 12 ft. lead |
| Tow hook | Forged steel |
| Finish | UV-resistant matte black, stainless steel hardware |
| Warranty | Lifetime mechanical, 3 year electrical |

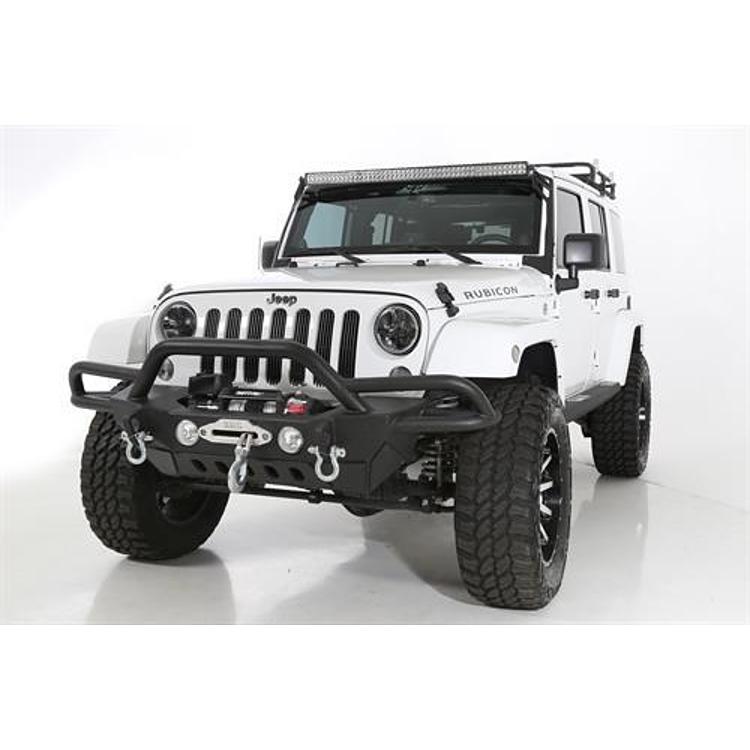

Vehicle fitment
Fit depends on the bumper and winch plate on your vehicle. Confirm fit for your vehicle’s year, model and trim before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Keep the synthetic rope away from sharp edges. Mount the solenoid box where the leads reach without strain, and keep people clear of the rope when the winch is loaded.
What’s included
The heavy-duty controller, forged steel tow hook and solenoid box are part of the winch. Confirm that mounting hardware is on hand before installing the winch.
