Trail Master 4.0 Inch Lift Kit with CGS Shocks – TM3640-20012

Trail Master

Shop Jeep CJ5 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Trail Master 4-inch leaf spring lift kit with CGS shocks, model TM3640-20012
  • Drop pitman arm for steering angle correction
  • Fits 1959 to 1986 Jeep CJ5, CJ7 and Scrambler

Description

Overview

The Trail Master 4.0-inch Lift Kit with CGS Shocks, model TM3640-20012, is a leaf spring lift listed in the 3 to 4.99 inch range. It includes CGS cellular gas shocks, a drop pitman arm and U-bolts.

It fits 1959 to 1983 Jeep CJ5, 1976 to 1986 Jeep CJ7 and 1981 to 1985 Jeep Scrambler models.

The 4-inch leaf spring lift uses lifted leaf springs with U-bolts and hardware, and the springs are designed for a smooth ride. CGS cellular gas shocks come with the kit.

The drop pitman arm corrects the steering angle after the lift, and the transfer case setup keeps the driveshaft in the correct position. Check steering alignment and driveshaft angles once the kit is installed.

The kit includes leaf springs, U-bolts and hardware, and the CGS shocks are part of the package. The lift height range is 3 to 4.99 inches, and the kit is set up for the Jeep models named in the vehicle fitment section.

The drop pitman arm and transfer case setup are steering and driveline corrections, so check both after installation.

Key features

  • 4-inch leaf spring lift
  • CGS cellular gas shocks included
  • Drop pitman arm that corrects steering angles
  • Transfer case setup that maintains the driveshaft position
  • U-bolts and hardware included

Leaf spring lift considerations

Leaf spring lifts change how the axle sits under the frame, so the springs, U-bolts and shackles all work together to set ride height. On trail, a leaf spring setup generally flexes more than a coil system, which helps with articulation over uneven ground. On the road, the stiffness of the leaves and the shock tuning decide how the truck feels in corners and over bumps. Shocks matter more after a lift because the new geometry changes the angle the shock travels at.

Before buying, think about how the truck is used most. A drop pitman arm is usually installed alongside a lift of this type because steering geometry shifts when the axle moves. Installers often replace U-bolts and check spring center bolts at the same time, since those parts carry the load of the new spring pack.

  • Check U-bolt torque after the first few trail runs
  • Inspect shock mounts for cracks or bushing wear
  • Look for leaf spring sag or uneven ride height

Specifications

Brand Trail Master
Part number TM3640-20012
UPC 614901083354
Lift height 4 inches
Lift height range 3 to 4.99 inches
Suspension type Leaf spring
Rear lift method Leaf springs
Shocks CGS cellular gas, included

Vehicle fitment

This kit fits these vehicles:

  • 1959 to 1983 Jeep CJ5
  • 1976 to 1986 Jeep CJ7
  • 1981 to 1985 Jeep Scrambler

Other Jeep models are not covered by this fitment. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The drop pitman arm is listed to correct steering angles, so check the steering alignment after installation.

What’s included

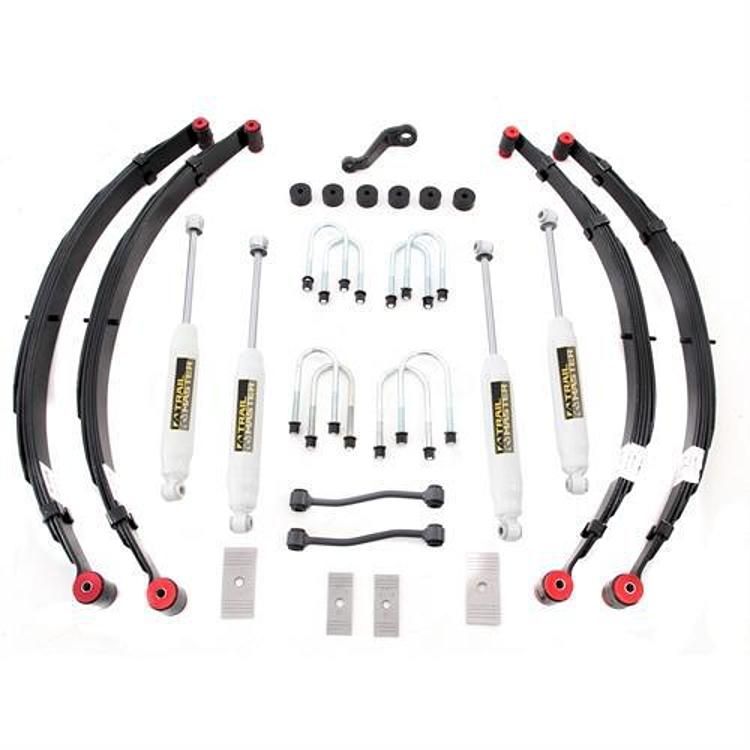

Leaf springs, U-bolts, hardware, CGS shocks, a drop pitman arm and the transfer case setup.

SKU: T/MTM3640-20012 Category:

Specification

Shipping weight 158.98 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Jeep CJ51959–1983Base, Golden Eagle, Laredo, Limited, Renegade
Jeep CJ71976–1986Base, Golden Eagle, Golden Hawk, Laredo, Limited, Renegade
Jeep Scrambler1981–1985Base, Laredo, Renegade, SL, SR

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the TM3640-20012 fit a 1984 Jeep CJ7?

Yes. The kit fits 1976 to 1986 Jeep CJ7 models, which includes 1984. Confirm fit for your vehicle's year, model and trim before ordering.

What are CGS shocks?

CGS stands for cellular gas shocks. They come with the kit as part of the leaf spring lift package rather than as separate parts.

Does the TM3640-20012 correct the steering angle?

Yes. The drop pitman arm corrects steering angles. It comes with the kit, along with the U-bolts and hardware for the leaf springs.

When should the U-bolts on a leaf spring lift be replaced?

Replace them if the threads are stretched or corroded, or if the nuts keep loosening after retorquing. Check them at each oil change and after rough trails. Bent or cracked U-bolts should be replaced rather than straightened.
