Overview
The Trail Master 6-inch Knuckle Suspension Lift Kit with Rear NGS Shocks, model TM103N, is a 6-inch lift for 2007 to 2013 GM 1500 pickups. The kit lifts the front with steel strut spacers and the rear with a lift block and add-a-leaf.
The kit’s rear lift uses a block and an add-a-leaf, which Trail Master says keeps ride quality, towing capacity and wrap-up in balance. Front and rear high-clearance crossmembers, a differential skid plate and CNC machined aluminum differential spacers keep the front differential in place.
Key features
- Lift height range of 5 to 6.99 inches
- CNC machined cast ductile iron steering knuckles for correct geometry and alignment
- Front and rear high-clearance crossmembers
- Differential skid plate and CNC machined aluminum differential spacers
- Rear lift block with add-a-leaf and U-bolts
- Nitrogen charged NGS shocks for the rear
Alignment and driveline checks
A lift changes the angles of the driveline and the steering geometry, so the work does not end when the last bolt is tightened. Front spacers and a rear block raise the body, which can shift the pinion angle and the position of the front differential under load.
After installation, have the front end aligned and inspect the driveshaft angles and U-joints. Look for vibration at highway speed, which can point to a driveline angle that needs correcting. Recheck the torque on suspension and U-bolt fasteners after the first few drives, since new components settle.
Good habits after a lift include checking the brake lines and wiring for stretch, and confirming that the shocks and springs move freely through their full travel without rubbing.
Specifications
| Brand | Trail Master |
|---|---|
| Part number | TM103N |
| UPC | 70000671529 |
| Suspension type | Knuckle |
| Lift height range | 5 to 6.99 inches |
| Shocks | Nitrogen gas charged NGS, rear |
| Rear lift method | Lift block, U-bolts and add-a-leaf |
Vehicle fitment
The kit fits 2007 to 2013 GM 1500 pickups, including the Chevrolet Silverado 1500 and GMC Sierra 1500.
It does not fit 2014 and later GM 1500 trucks. Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
Front strut spacers and a rear block with an add-a-leaf change the suspension geometry, so have the front end aligned and check driveline angles after installation.

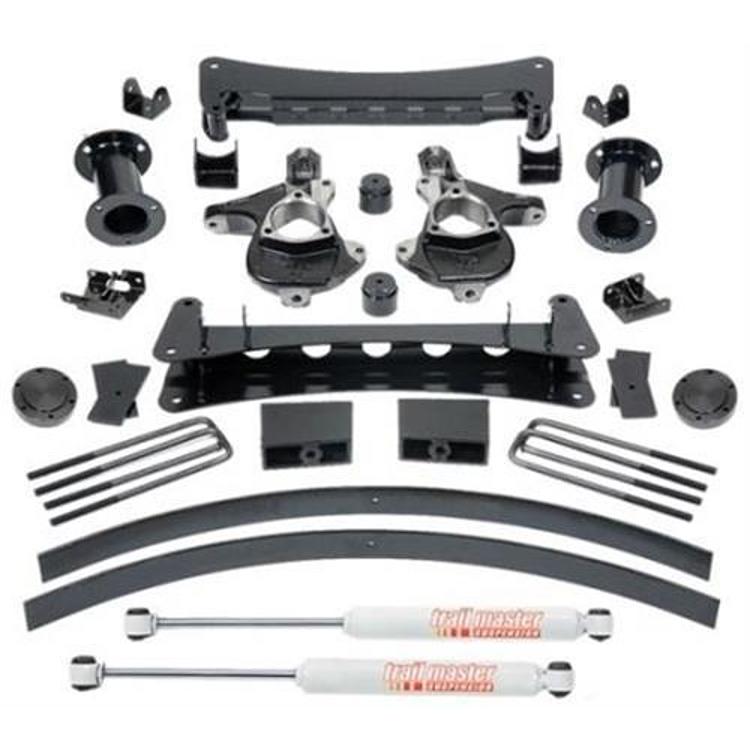

What’s included
Front steel strut spacers, knuckles, crossmembers, differential skid plate, differential spacers, rear block with U-bolts and add-a-leaf, and rear NGS shocks. The compression struts are not included.
