Overview
The Rubicon Express RE7122FP is a standard coil lift kit for the Jeep Wrangler JK, supplied with front and rear Fox Performance shocks. It covers a lift height range of 2.5 to 3.5 inches.
The package covers both ends of the axle assembly with replacement coil springs and bump stops. Cam bolts allow caster and pinion adjustment, and the front adjustable track bar is paired with a rear track bar bracket. Extended sway bar end links are included.
The Fox Performance Series shocks are covered by the FOX warranty and do not qualify for the Rubicon Express Advantage Warranty.
Key features
- Front and rear Fox Performance shocks
- Front and rear replacement coil springs
- Bump stops at both ends
- Cam bolts for caster and pinion
- Front adjustable track bar
- Extended sway bar end links
Before the first drive
Coil spring lift kits change ride height at all four corners, so the rest of the suspension has to be checked once the new springs are in. Bump stops, sway bar end links and stock shocks all work with a different geometry after the lift, and worn parts can make the new setup feel loose or noisy. Replacing aging components at the same time keeps the install from being repeated later.
Before you begin, lay out every part and compare it with your installation list. Inspect the stock track bar bushings, control arm joints and brake lines for wear or stretch, since a lift often exposes them to new angles. Use the cam bolts to set caster and pinion, then tighten all hardware to the torque values in your service manual.
After the first few drives, re-check the cam bolt settings, nut torque and sway bar link tightness. Coil lift setups can settle slightly as the springs seat, so a second alignment check is a practical habit. Record your readings so future adjustments are easier to compare.
Specifications
| Brand | Rubicon Express |
|---|---|
| Part number | RE7122FP |
| Kit type | Standard coil lift kit |
| Lift height range | 2.5 to 3.5 inches |
| Shocks | Fox Performance, front and rear |
| Springs | Front and rear replacement coil springs |
| Bump stops | Front and rear |
| Caster and pinion | Cam bolts |
| Track bar | Front adjustable, with rear track bar bracket |
| Sway bar | Extended end links |
| Warranty | FOX warranty on the shocks |
Vehicle fitment
It fits the 2007–2018 Jeep Wrangler (JK) and the most common JK suspension setups.
Not covered: the JL, the Gladiator, and the TJ and LJ Wrangler generations. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A 2012 or newer truck may need an exhaust modification or a front drive shaft. Set the caster and pinion angles with the cam bolts, then check the alignment.

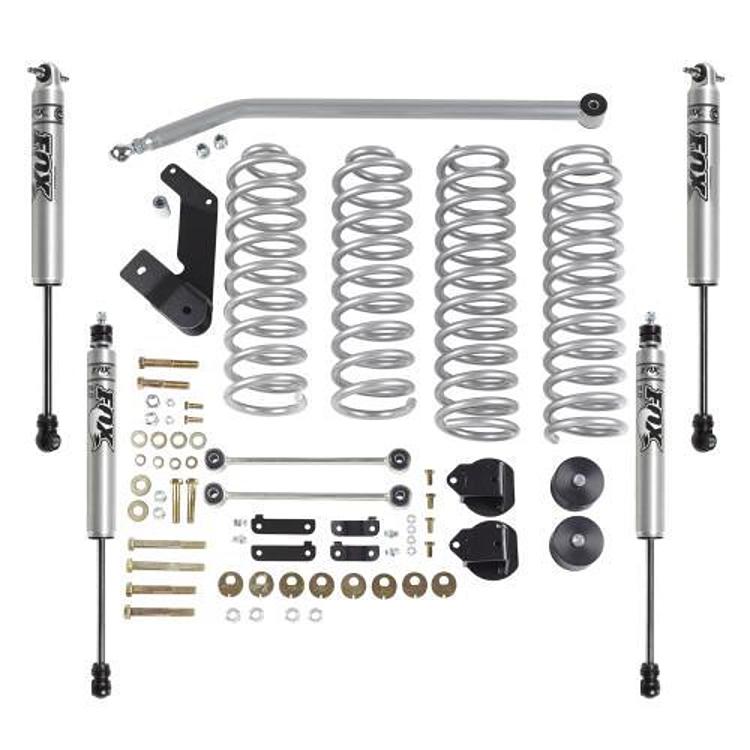

What’s included
Front and rear replacement coil springs, bump stops, cam bolts, a front adjustable track bar, a rear track bar bracket, extended sway bar end links and front and rear Fox Performance shocks.
