Overview

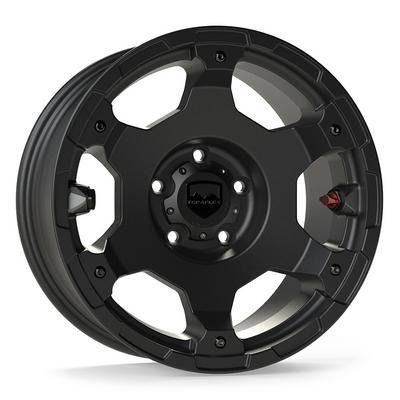

The TeraFlex Nomad Off-Road Deluxe wheel, part 1056059, is a 17 x 8.5 inch black aluminum spoke wheel with a 5 on 5 bolt pattern. TeraFlex names it for the Jeep Wrangler JL/JLU from 2018 to 2022 and the JK/JKU from 2007 to 2018.
The wheel is a cast alloy design with a modular plug system. It accepts the Air Deflator Valve, which lets you air down to a preset pressure, and an adjustment screw sets that pressure as low as 10 psi.
Offset is 0, center bore is 72 and backspacing is 4.75. Check those figures against your hub and tire clearance before ordering.
Key features
- Nomad Deluxe spoke style
- Cast aluminum construction
- Modular plug system
- Air Deflator Valve with an adjustment screw
- Preset pressure as low as 10 psi
- Encapsulated valve stem housing and cap
- Black finish
Tire pressure and wheel care
Airing down changes how the tire sits on the rim, so the wheel and tire should be checked together after each change in pressure. Cast alloy wheels handle rock contact well when the tire is seated properly, but impacts can still bend a spoke or damage a bead seat. A quick look after hard trail sections helps catch small problems early.
Lug nut torque should be checked after the first drive on new wheels, and again after the wheel has been off the hub. The black finish holds up best when cleaned with mild soap and water rather than abrasive pads, and the valve stem housing should be inspected for cracks each time the tire is serviced.
- Check lug nut torque after the first drive
- Inspect spokes and bead seats after rock impacts
- Clean the black finish with mild soap
Specifications
| Brand | TeraFlex |
|---|---|
| Part number | 1056059 |
| Wheel diameter | 17 inches |
| Wheel width | 8.5 inches |
| Bolt pattern | 5 on 5 |
| Offset | 0 |
| Center bore | 72 |
| Backspacing | 4.75 |
| Style | Spoke |
| Series | Nomad Deluxe |
| Construction | Aluminum, cast alloy |
| Finish | Black |
| Air deflator valve | Included, part 1056000 |
| Center cap | Included, part 1056004 |
| Valve stem housing and cap | Included, part 1056001 |
Vehicle fitment
It fits Jeep Wrangler JL and JLU models from 2018 to 2022 and Wrangler JK and JKU models from 2007 to 2018.
Confirm fit for your vehicle’s year, model and trim before ordering, especially for Wrangler TJ and LJ, Gladiator JT and Grand Cherokee models.
Installation notes
Set the adjustment screw on the air deflator valve to your preferred preset pressure, which can go as low as 10 psi. Check the bolt pattern, offset and center bore against your vehicle before ordering.
What’s included
The wheel with its center cap (1056004), encapsulated Schrader valve stem housing and cap (1056001), and Air Deflator Valve (1056000).
