Overview

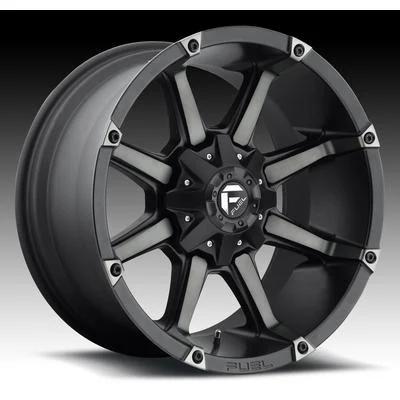

The FUEL Off-Road 17×9 Coupler wheel, part number MHTD55617909845, is a 17-inch aluminum spoke wheel with a 9-inch width and a black machined finish. It is listed with two bolt patterns, 6 on 5.5 and 6 on 135, so the wheel is a candidate for six-lug hubs of either pattern.
The Coupler 17×9 comes in two six-lug patterns, 6 on 5.5 and 6 on 135. It has a -12 offset, 4.5 backspacing and a 106 center bore, so match one pattern and the bore to your hub before comparing offset or backspacing.
Key features
- 17 by 9 inch aluminum spoke wheel
- Black machined finish
- Coupler model line from FUEL Off-Road
- Two bolt pattern entries: 6 on 5.5 and 6 on 135
- Offset of -12 with backspacing of 4.5
- Center bore of 106
Six-lug hub and bore
Six-lug hubs are common on trucks and SUVs, and the two patterns here, 6 on 5.5 and 6 on 135, are different spacings. A wheel only seats on the pattern it was machined for, so the stud measurement is the first check. Use a caliper or a bolt-circle gauge rather than estimating by eye.
The 106 center bore needs to match the hub or be fitted with a ring. Brake caliper clearance and fender room depend on offset and backspacing, so a -12 offset may change how the tire sits compared with the wheel it replaces. Recheck clearance after any suspension or tire change.
- Confirm the lug seat type
- Test fit before mounting tires
- Keep a torque wrench on hand for the lug nuts
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD55617909845 |
| Model | Coupler |
| Wheel diameter | 17 Inches |
| Wheel width | 9 Inches |
| Style | Spoke |
| Finish | Black Machined |
| Construction | Aluminum |
| Bolt pattern | 6 on 5.5 |
| Bolt pattern 2 | 6 on 135 |
| Offset | -12 |
| Backspacing | 4.5 |
| Center bore | 106 |
Vehicle fitment
The wheel is universal fit, with no truck or SUV assigned to it. Match the pattern, bore and offset to your vehicle before ordering.
Confirm your vehicle’s bolt pattern, center bore and offset before ordering.
Installation notes
Check that the 106 center bore and the 6 on 5.5 or 6 on 135 pattern match your hub, and confirm brake and fender clearance for a -12 offset before mounting.
What’s included
Lug nuts, center caps and tires are not covered here, so budget for them separately.
