Method Race Wheels MR606 Mesh, 20x10 with 8x170 Bolt Pattern – Titanium – MR60621087824N

Method Race Wheels

$291.43In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 12:20 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Method Race Wheels MR606 Mesh 20×10 wheel in Titanium, part number MRWMR60621087824N
  • Size 20 x 10 inches, offset -24, backspacing 4.55, 3 inch lip
  • Bolt pattern 8 on 170 with a bolt-on piece for 8 lug applications
  • Load ratings of 2650 lbs for 5 and 6 lug, 3640 lbs for 8 lug
  • Universal Fit, no center bore listed, so confirm hub fit before ordering

Description

Overview

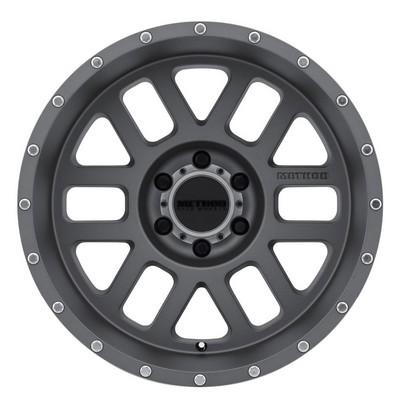

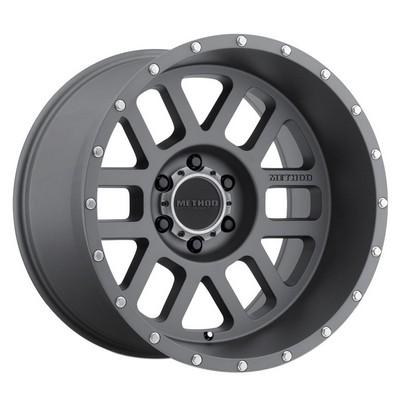

The Method Race Wheels MR606 Mesh in 20×10, Titanium finish, part number MRWMR60621087824N, uses an 8 on 170 bolt pattern. It is the second wheel in Method’s 600 Series and pushes the clean styling of the MR306 Mesh further, aimed at owners who want a deep-dish profile on lifted vehicles.

This version has a 3 inch lip on the 20×10 size and a non-beadlock lip design with removable stainless steel bolts. A snap-in cap with a raised Method logo covers 5 and 6 lug applications, and a separate bolt-on piece covers 8 lug. Method rates the wheel at 2650 lbs for 5 and 6 lug and 3640 lbs for 8 lug, and the 8 lug figure applies to this 8 on 170 version.

Key features

  • Titanium finish on aluminum construction
  • Mesh style with an uncluttered face
  • Non-beadlock lip with removable stainless steel bolts
  • Bolt-on center ring with a snap-in cap for 5 and 6 lug applications
  • Separate bolt-on piece for 8 lug applications
  • Second Method logo debossed into one spoke
  • Load ratings of 2650 lbs (5 and 6 lug) and 3640 lbs (8 lug)

Clearance on a deep-dish setup

Negative offset moves the wheel outward, so the tire and wheel sit farther from the hub face than a standard wheel. That can change the gap to fender liners, control arms and the front brake caliper. Measure clearance with the tire you plan to run, both straight ahead and at full lock, before the vehicle is driven.

Suspension travel also matters. A lifted vehicle compresses and extends differently than stock, so rub points can appear only at full articulation. Rotate the tire by hand while someone cycles the suspension, and recheck after any change in tire size or ride height. Keep spacers out of the setup unless they are part of a deliberate plan, since they add to the outward position.

  • Check fender liner contact at full lock
  • Measure caliper clearance with the planned tire
  • Recheck after changing tire size or lift height
  • Avoid stacking spacers without checking clearance

Specifications

Brand Method Race Wheels
Part number MRWMR60621087824N
Style MR606 Mesh
Wheel diameter 20 Inches
Wheel width 10 Inches
Offset -24
Backspacing 4.55
Bolt pattern 8 on 170
Lip 3 inch lip on the 20×10 size
Load rating 2650 lbs (5 and 6 lug); 3640 lbs (8 lug)
Finish Titanium
Construction Aluminum
Fitment Universal Fit

Vehicle fitment

Universal Fit is the only fitment that applies, so no year, make or model is named. Match the 8 on 170 bolt pattern, -24 offset and 4.55 backspacing to your hub, and confirm the hub bore fit before ordering.

The 20×10 Mesh is not the same size as the 20×12 version, which has a 5 inch lip. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A -24 offset with 4.55 backspacing sits the wheel differently from the 20×12 versions, so measure fender and brake clearance before fitting.

What’s included

The design includes a bolt-on center ring, a snap-in cap for 5 and 6 lug use, a bolt-on piece for 8 lug and the stainless steel lip bolts.

Not included: tires.

SKU: MRWMR60621087824N Categories: ,

Questions & Answers

Does the MR606 Mesh 20x10 with 8 on 170 pattern fit my vehicle?

The product carries Universal Fit and names no year, make or model. Match the 8 on 170 bolt pattern, -24 offset and 4.55 backspacing to your hub before ordering.

What lip and load ratings does this Titanium wheel have?

It has a 3 inch lip on the 20x10 size. Method rates 8 lug applications at 3640 lbs and 5 and 6 lug applications at 2650 lbs. This 8 on 170 version uses the 8 lug rating.

What center bore does this wheel need to match?

Match the center bore to your hub's bore before mounting, and confirm that fit for your vehicle's year, model and trim before ordering.

Should the center cap be swapped when the lug count changes?

Yes, the cap style depends on lug count, so 5 and 6 lug parts and the 8 lug bolt-on piece are not interchangeable. Keep the matching cap with the wheel and confirm the lug count before assembly to avoid a loose or incorrect center fit.
