Smittybilt A.W.S. Aluminum Winch Shackle – 2820

Smittybilt

$65.98In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 11:50 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Aluminum winch shackle rated for a 17,000 lb maximum load
  • 6061 T-6 aluminum with a black anodized finish
  • Fits rope and cable up to 1/2 in. diameter, with 3/4 in. and 7/8 in. D-rings
  • Part number 2820

Description

Overview

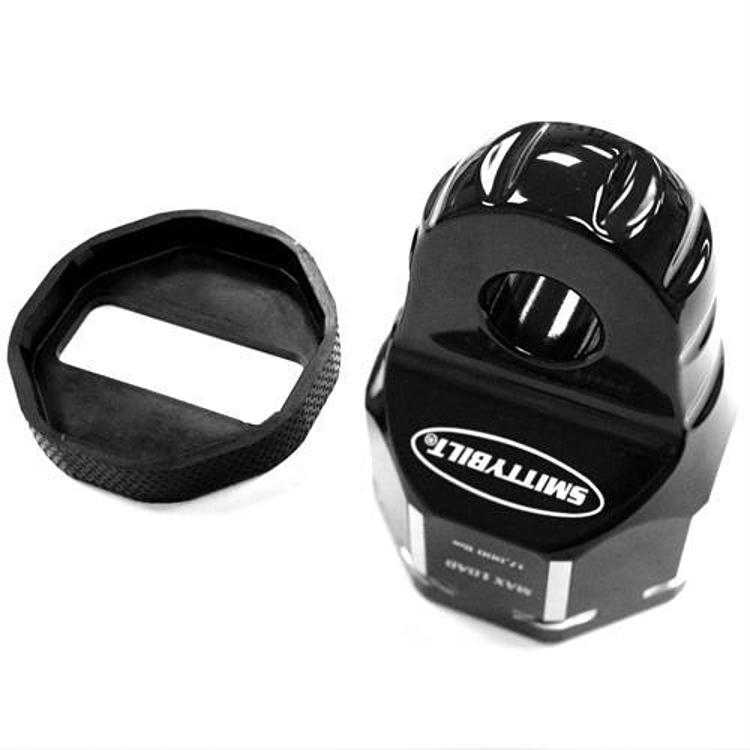

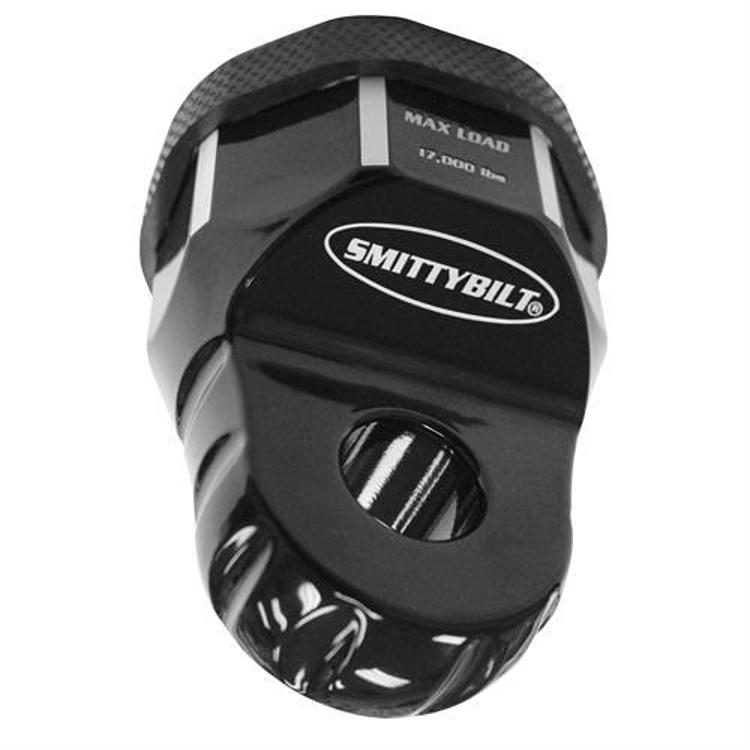

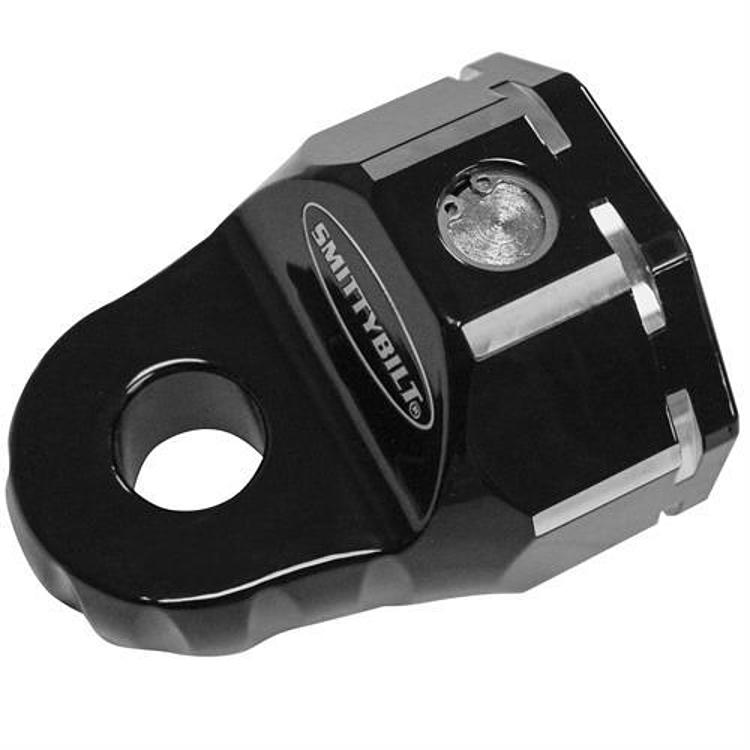

The Smittybilt 2820 is an A.W.S. Aluminum Winch Shackle, a shackle that Smittybilt says gives a safer and stronger winch point than standard winch hooks. It is precision machined from lightweight billet aircraft grade 6061 T-6 aluminum.

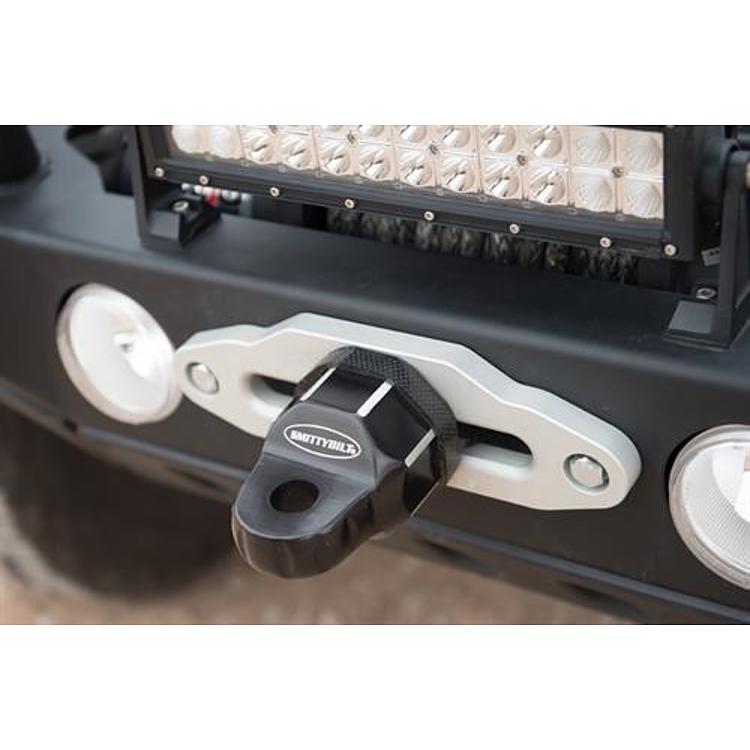

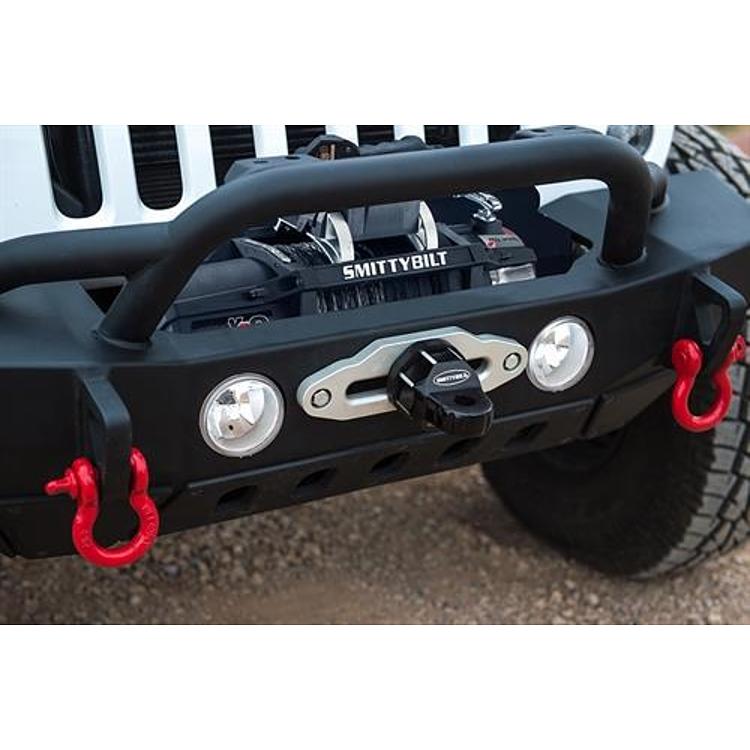

The shackle is rated to a maximum load of 17,000 lbs and fits synthetic ropes and wire cables up to 1/2 in. in diameter. It works with roller and aluminum fairleads and with 3/4 in. and 7/8 in. D-rings.

Installation and removal are simple, and the black anodized finish is designed to be durable and rugged. It is a universal recovery accessory rather than a vehicle-specific part.

Key features

  • Maximum load rating of 17,000 lbs
  • Precision-machined 6061 T-6 aluminum billet
  • Black anodized finish

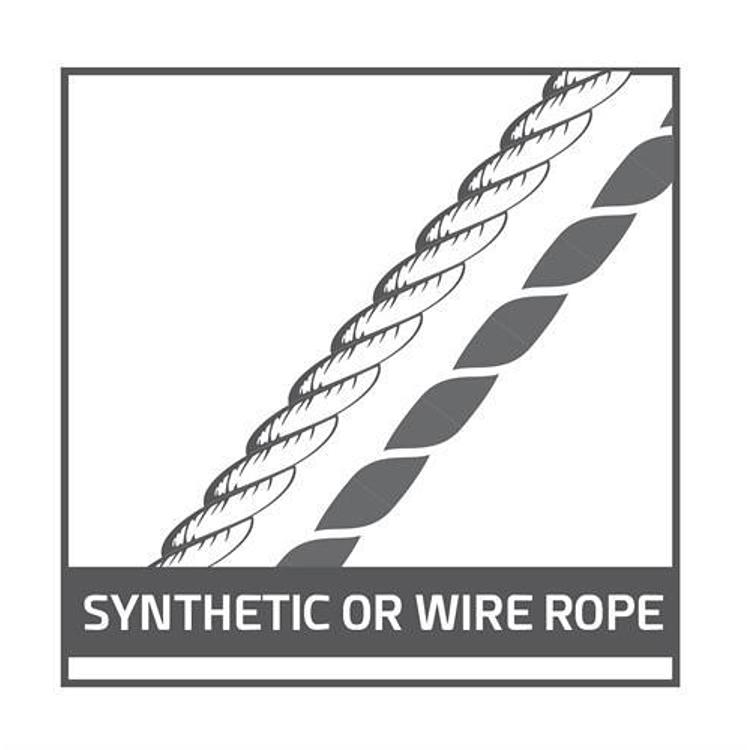

  • Fits rope and wire cable up to 1/2 in. diameter

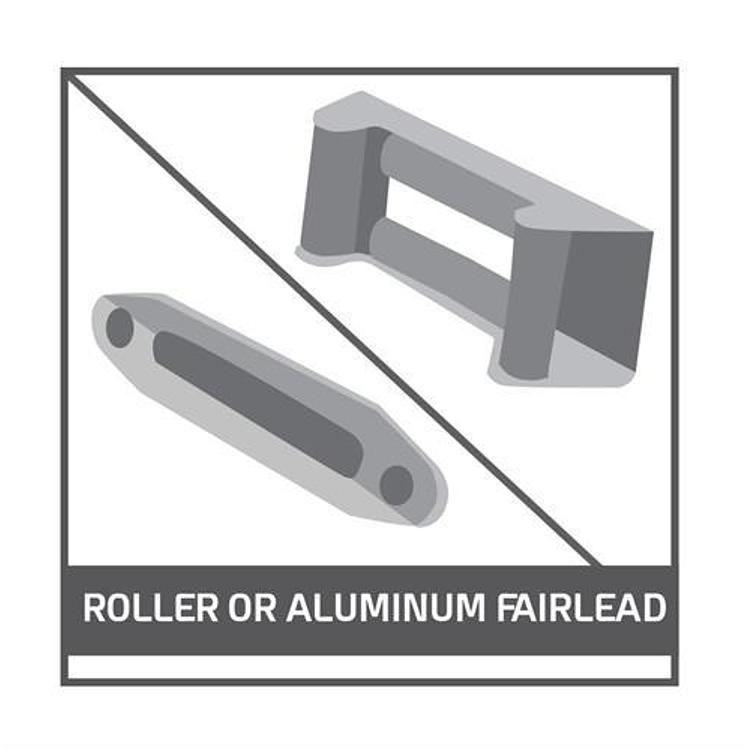

  • Works with roller and aluminum fairleads

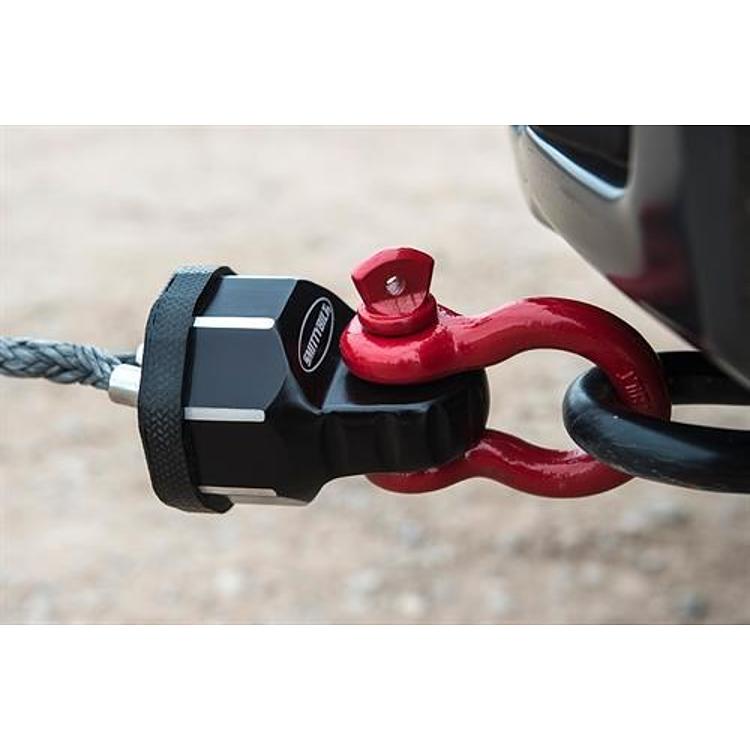

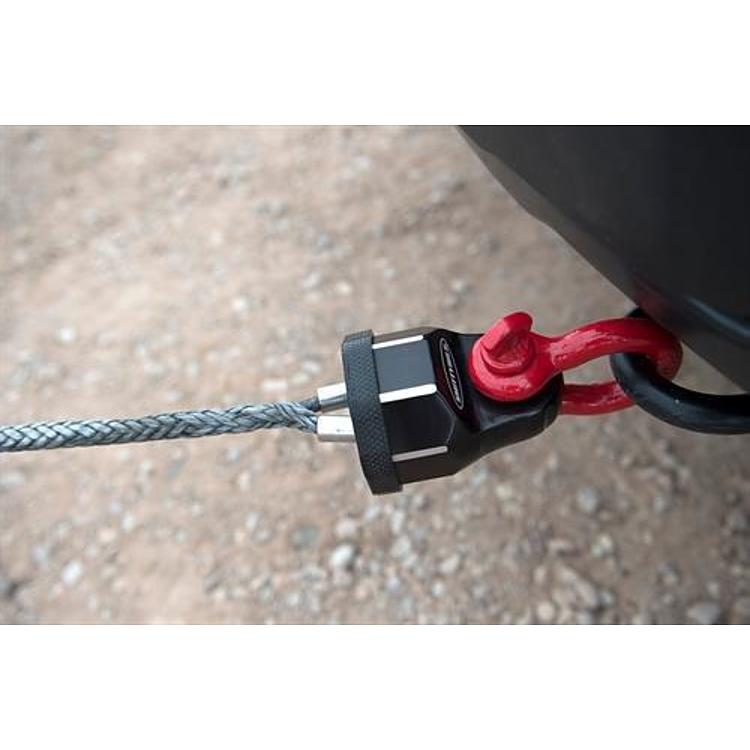

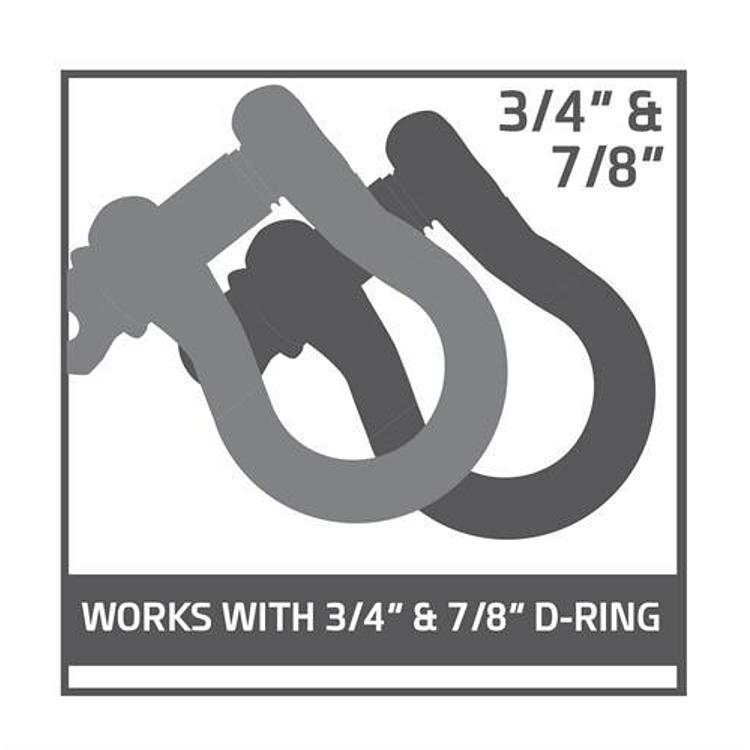

  • Works with 3/4 in. and 7/8 in. D-rings

Inspecting recovery shackles

A shackle is only as reliable as its pin, bow and threads, so inspection is worth doing before each trip. Check for bends, cracks, deep gouges and any sign that the bow has spread. Aluminum can show fatigue differently from steel, so look closely at the bow where it bends under load.

Keep the pin fully seated and use the correct pin type for the connection. Clean grit out of the threads and keep the finish intact, because anodizing protects against corrosion but can scratch. Replace a shackle after it has been overloaded or dropped hard, even if no damage is visible.

  • Check the bow for bends or cracks
  • Seat the pin fully before loading
  • Retire any shackle that has been overloaded

Specifications

Brand Smittybilt
Part number 2820
UPC 631410119145
Product type Aluminum winch shackle (A.W.S.)
Maximum load 17,000 lbs
Material 6061 T-6 aluminum billet
Finish Black anodized
Rope or cable Synthetic rope and wire cable up to 1/2 in. diameter
Compatible D-rings 3/4 in. and 7/8 in.

Vehicle fitment

This shackle is recovery gear and is not vehicle-specific. It is a universal fit, so the match depends on the winch line and D-ring size you are using.

Installation notes

Check that the rope or cable is no more than 1/2 in. in diameter and that your D-ring is 3/4 in. or 7/8 in. before attaching the shackle. Keep the load within the 17,000 lbs rating.

What’s included

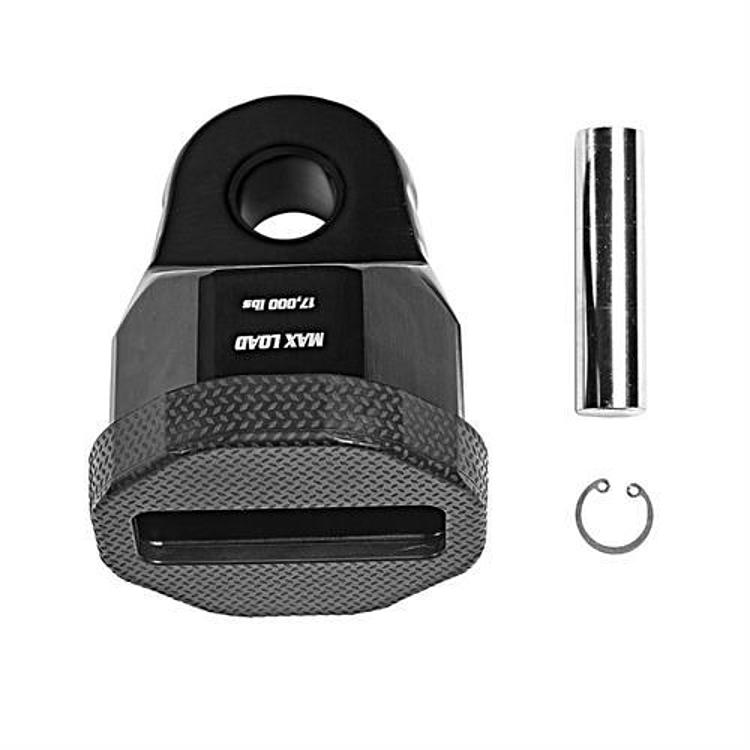

One aluminum winch shackle is included per unit. D-rings, rope and cable aren’t included.

SKU: S/B2820 Category:

Specification

Shipping weight 4.00 lbs
Package dimensions 7.00 × 7.00 × 6.00 in
brands

Questions & Answers

What is the maximum load rating of the Smittybilt 2820 shackle?

Smittybilt rates the A.W.S. Aluminum Winch Shackle for a maximum load of 17,000 lbs. Keep recovery loads inside that rating and match the shackle to the rope or cable you are using.

What rope or cable size does the 2820 fit?

It fits synthetic ropes and wire cables up to 1/2 in. in diameter, and it works with 3/4 in. and 7/8 in. D-rings.

Is the 2820 vehicle-specific?

No. It is a universal fit, so the fit depends on the winch line and D-ring you use rather than on a particular vehicle.

Should a shackle be replaced after a hard recovery?

Inspect it closely first. If the bow shows any bend, crack or deformation, or the pin no longer seats properly, replace the shackle. Overloading can cause damage that is not visible at a glance.
