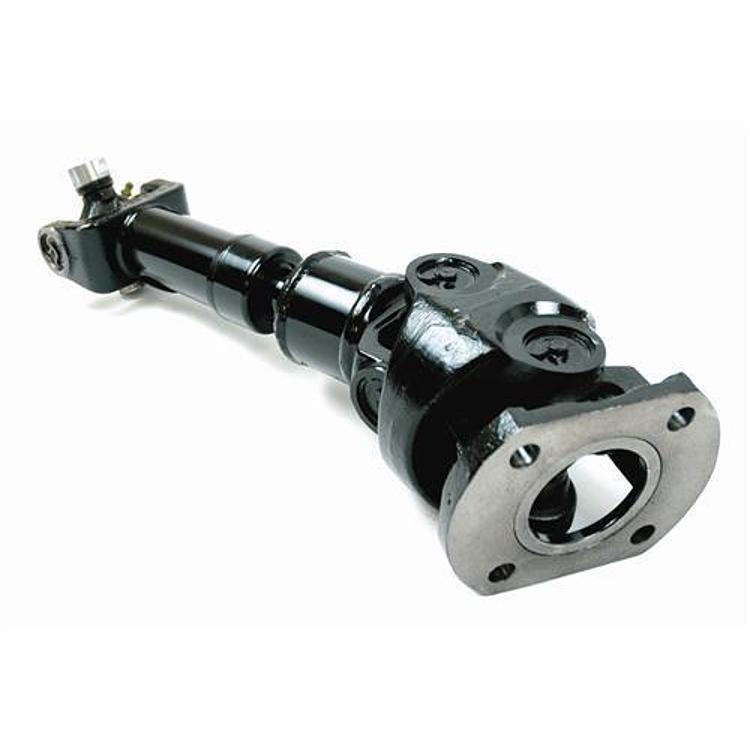

Rubicon Express TJ CV Rear Drive Shaft – RE1895-175

Rubicon Express

Shop Jeep Wrangler TJ Drive Shafts on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rear CV drive shaft, 17.5 inches long
  • Direct fit for TJ Rubicon with NP2421OR transfer case
  • Fits long arm systems
  • Requires a slip yoke eliminator

Description

Overview

The Rubicon Express RE1895-175 is a 17.5 inch long rear CV drive shaft for the Jeep Wrangler (TJ) Rubicon. It is a direct fit for the TJ Rubicon with an NP2421OR transfer case and works with long arm suspension systems.

It fits 2003–2006 Jeep Wrangler (TJ) Rubicon models. It works with 1801 and 1807 slip yoke eliminators, and the length is measured center to center on the U-joint with the slip stub at the center of its travel.

Key features

  • Rear CV drive shaft
  • 17.5 inches long
  • Direct fit for TJ Rubicon with NP2421OR transfer case
  • Compatible with 1801 and 1807 slip yoke eliminators
  • Fits long arm systems

Driveline angles and length

The rear drive shaft transfers power from the transfer case to the axle, and its angles change as the suspension moves through its travel. Length and joint angle matter because a shaft that is too short or too long can bind, pull out of the slip yoke, or cause vibration at speed. When fitting any shaft with a slip yoke eliminator, measure the vehicle in its running position, since suspension height changes the required length.

Inspect the transfer case output and axle pinion flanges for wear before installing, and replace the U-joints or yoke seal if they are worn at the same time. Check the joint boots for tears and grease leaks during routine service, and listen for clicking or popping in turns, which can signal a worn joint. Tighten the strap bolts to the specified torque and recheck them after the first drives.

Specifications

Brand Rubicon Express
Part number RE1895-175
UPC 614901439458
Length Extended, 17.5 inches
Joint type CV
Position Rear
Transfer case NP2421OR
Slip yoke eliminator Required
Fitment type Universal fit

Vehicle fitment

It fits the 2003–2006 Jeep Wrangler (TJ) Rubicon.

The list does not include the TJ models other than the Rubicon, the Wrangler LJ or the JK. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A slip yoke eliminator is required with this shaft. Measure the vehicle on the ground in the running position to confirm the correct length before ordering.

What’s included

One rear drive shaft. Confirm the mounting parts you need before starting the installation.

SKU: R/ERE1895-175 Category:

Specification

Shipping weight 20.30 lbs
Package dimensions 26.30 × 6.30 × 4.50 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (TJ)2003–2006Rubicon

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Rubicon Express RE1895-175 fit a 2005 Jeep Wrangler TJ Rubicon?

Yes. It fits the 2003–2006 Jeep Wrangler (TJ) Rubicon, which includes 2005 models. It is a direct fit with an NP2421OR transfer case.

Does it need a slip yoke eliminator?

Yes. A slip yoke eliminator is required with this shaft. It is compatible with 1801 and 1807 eliminators, so choose one of those to match the installation.

How is the length measured?

The length is measured center to center on the U-joint, with the slip stub at the center of its travel. Measure the vehicle in the running position before ordering.

What signs show a drive shaft needs replacing?

Clicking or popping during turns, vibration that rises with speed, or grease leaking from a joint can all signal wear. Inspect the boot and joints for tears and check for play before driving far.

Should the slip yoke be checked when fitting a shaft?

Yes. Inspect the slip yoke and its seal for wear, since a damaged yoke can cause leaks and vibration. Replacing the seal during installation is a practical step while the driveline is apart.
