Overview

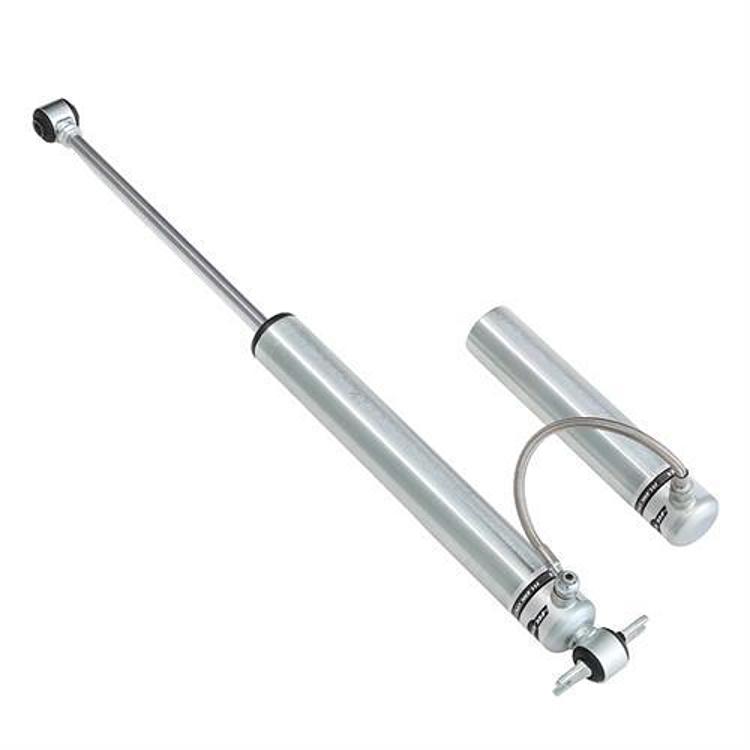

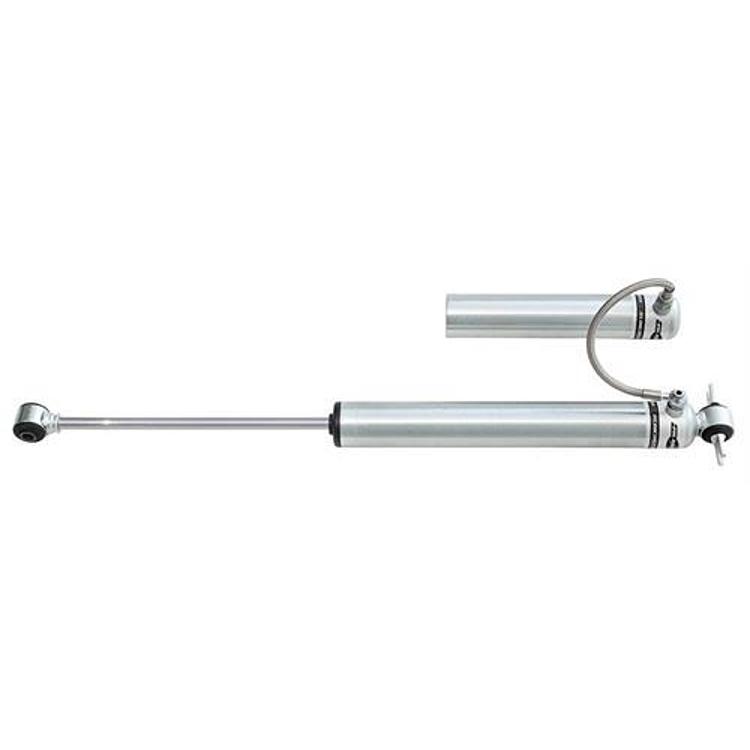

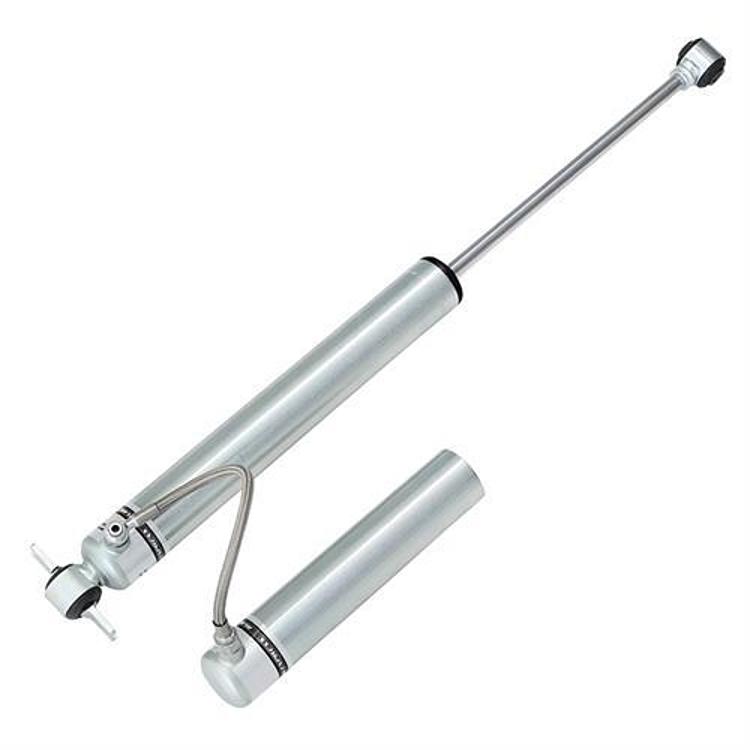

The Rubicon Express RXJ716R is a rear monotube shock absorber with a remote reservoir, designed for a 4.5 to 5.5 inch lift on 2- and 4-door models. It extends to 29.5 inches and has 11.6 inches of travel.
The shock has been refined over more than a decade, with changes to the manufacturing process, materials, finishes and tuning. It is offered as a complete suspension option for lifted setups that need more from the rear end.
Key features
- Monotube design with a remote reservoir
- Mounts at the rear
- Designed for a 4.5 to 5.5 inch lift
- Fits 2- and 4-door models
- Direct fit design
How a remote reservoir shock works

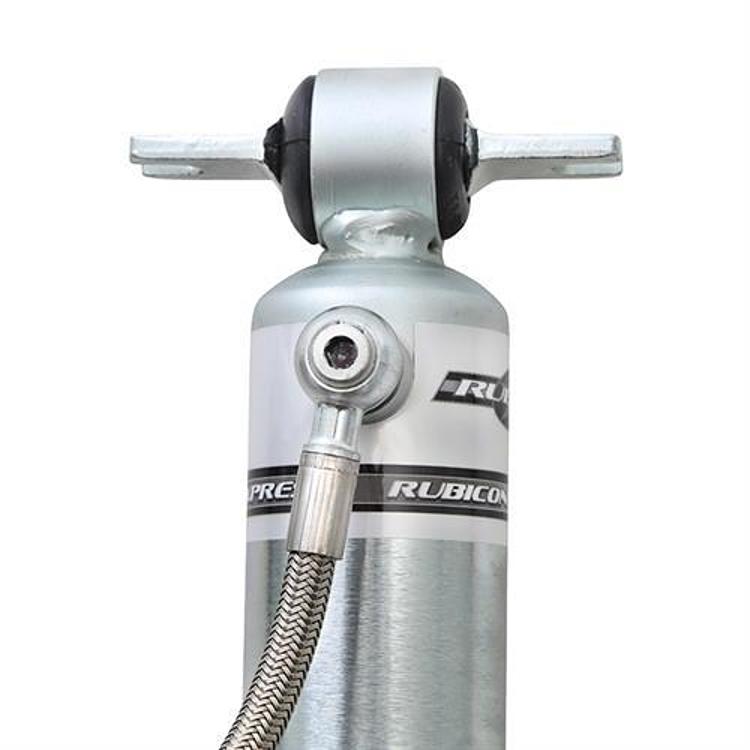

A monotube shock uses a single tube with a piston and a gas charge, and the remote reservoir gives the oil and gas extra room to expand. This helps the shock keep its damping steady during long descents and repeated hard hits, when a standard shock can heat up and lose firmness. The reservoir hose needs clear routing so it does not rub on tires, brake lines or the frame.
Before fitting new shocks, check the lift height and the spring rate, since the shock works with the springs rather than alone. Inspect the rear mounts, bushings and bump stops for wear, because loose mounts reduce the control a new shock can give. Replacing both rear shocks together keeps the axle damping even from side to side.
- Route the reservoir hose away from heat sources and moving parts
- Check reservoir clearance at full compression and full droop
- Re-check mounting bolts after the first few drives
Specifications
| Brand | Rubicon Express |
|---|---|
| Part number | RXJ716R |
| UPC | 614901098884 |
| Mounting location | Rear |
| Shock type | Monotube with remote reservoir |
| Lift range | 4.5 to 5.5 inches |
| Extended length | 29.5 inches |
| Collapsed length | 17.9 inches |
| Travel | 11.6 inches |
Vehicle fitment
Rubicon Express lists no specific vehicles for this shock. The fitment information it gives is the 4.5 to 5.5 inch lift range and 2- and 4-door models, so match your lift height before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Compare the extended and collapsed lengths with the shock you are replacing before ordering. Those two lengths set the range the shock can cover between its mounts.
What’s included
The shock with its remote reservoir. Check the mounting hardware against your installation before starting.
