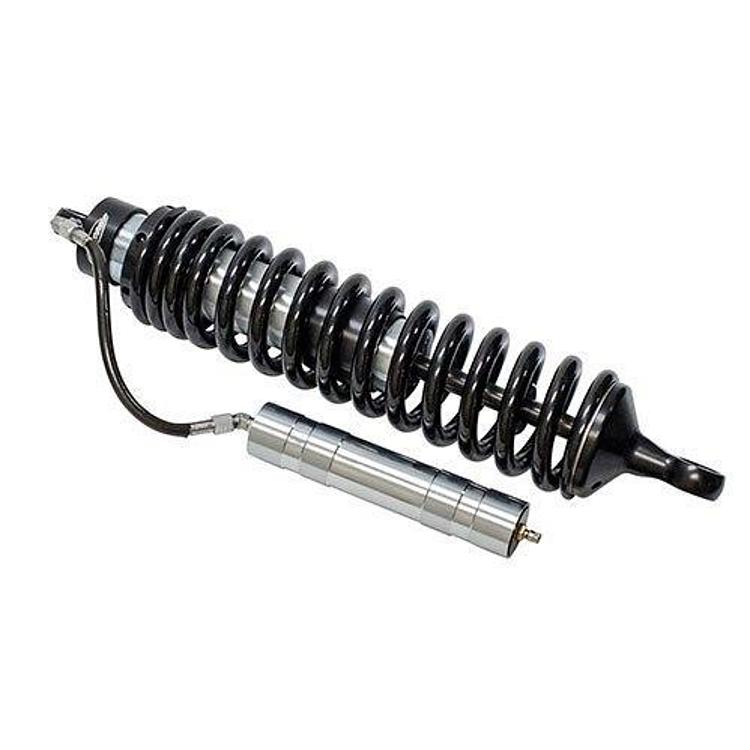

Pro Comp Black Series 2.75 Coilover Shock Absorber – ZX5078

Pro Comp Suspension

Shop Toyota Tundra Shock Absorbers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pro Comp Black Series 2.75 front coilover bypass shock, part number ZX5078
  • Fits the 2014–2015 Toyota Tundra
  • Designed for a 4 inch lift
  • Long travel system with gas charged monotube design

Description

Overview

The Pro Comp ZX5078 is a front Black Series 2.75 coilover bypass shock absorber for the 2014–2015 Toyota Tundra, designed for a 4 inch lift. It uses a long travel system.

It is a gas charged monotube, with a nitrogen charge that keeps the oil under pressure during compression and rebound. The design dissipates heat more efficiently than a traditional twin tube hydraulic shock. Valving is multi-stage and tuned for the vehicle, which supports ride quality and handling.

It is a monotube design, like the rest of the Pro Runner family. The bypass design is a front position unit, so it fits at the front of the Tundra.

Pro Comp’s lift figure for this shock is 4 inches, and the long travel system is listed with the front position. The shock is sold as a single unit, so a front pair needs two of them.

Key features

  • Front position, direct fit
  • Black Series 2.75 coilover bypass design
  • Long travel system
  • Gas charged monotube with multi-stage valving
  • Designed for a 4 inch lift

Bypass shocks and ride height

A bypass shock routes fluid through a separate path, so the damping can be controlled apart from the main body. That design is commonly used on trucks that see heavy off-road use, where repeated hard compression can heat a standard shock. Heat management and steady damping matter most when the front suspension is raised.

Because ride height changes the angles of the front suspension, check the front geometry after installation and look for even tire wear. The hoses, fittings and mounting points of a bypass unit should be inspected at regular intervals, since a leak or loose fitting can change the damping behavior. Keep the spring seats clean and check them for cracks.

  • Inspect hoses and fittings for leaks
  • Check mounting points for play
  • Verify front alignment after lifting
  • Watch for uneven tire wear

Specifications

Brand Pro Comp Suspension
Part number ZX5078
UPC 614901216592
Shock series Black Series
Type 2.75 coilover bypass shock
Position Front
Lift height 4 in.
Travel system Long travel
Body Monotube, gas charged
Fitment type Direct fit

Vehicle fitment

It is a direct fit for the 2014–2015 Toyota Tundra at a 4 inch lift, in the front position.

The list covers the 2014 and 2015 Tundra only, so the 2016 and newer Tundra are not included. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The shock is designed for a 4 inch lift, so check the front ride height after installation against that figure.

What’s included

One front Black Series 2.75 coilover bypass shock.

SKU: EXPZX5078 Category:

Specification

Shipping weight 44.00 lbs
Package dimensions 50.00 × 12.00 × 8.00 in
brands

Fitment

VehicleYearsTrims
Toyota Tundra2014–20151794 Edition, Limited, Platinum, SR, SR5, TRD Pro

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the ZX5078 fit a 2015 Toyota Tundra?

Yes. It is a direct fit for the 2014–2015 Toyota Tundra in the front position, designed for a 4 inch lift. Verify the year, model and trim of your truck before buying.

Is the ZX5078 a coilover?

Yes. It is a Black Series 2.75 coilover bypass shock with a long travel system, fitted at the front of the truck.

Does the ZX5078 fit a 2016 Tundra?

The list covers the 2014 and 2015 Tundra only, so a 2016 or later truck is not included in this fitment. Check your model year before ordering the shock.

What does a bypass shock do differently?

A bypass shock sends oil through a separate passage rather than the main body, which can help control damping under heavy use. It needs regular checks of its hoses and fittings, since a leak there can change how the shock performs.
