Overview
The Rubicon Express RE6307 is a 7.5-inch Extreme-Duty long arm lift kit for the 1984–2001 Jeep Cherokee XJ. It is a direct fit for the Base, Briarwood, Chief, Classic, Country, Laredo, Limited, Pioneer, SE and Sport trims.
A complete suspension replacement, this kit uses longer control arms to improve lifted suspension geometry. The longer arm design adds stability on and off road, reduces torque roll and axle steer, and adds traction over short arm setups.

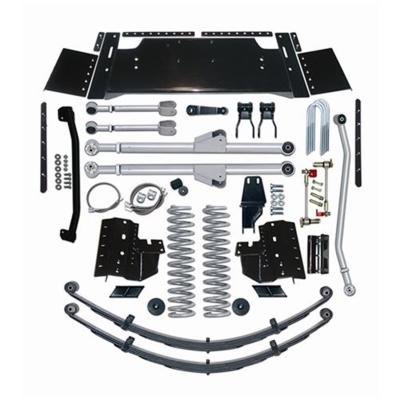

The kit includes a three-piece crossmember, front Extreme-Duty radius long arms with Super-Flex spherical ball joints, a heavy-duty track bar, a track bar bracket brace and Gen II disconnects. The specifications list a 33-inch tire size and a lift height range of 6 to 7 inches, while the title gives 7.5 inches.
Key features
- Three-piece crossmember for transfer case and transmission access
- Front Extreme-Duty radius long arms
- Serviceable Super-Flex spherical ball joints
- Heavy-duty track bar, bracket brace and Gen II disconnects
- Lift height range of 6 to 7 inches in the specifications
Clearance at a large lift
A lift of this height changes how the body sits over the axles, so check the clearance between the body, the fuel tank, the brake lines and the exhaust during the install. The longer arms and the crossmember need room to move through their full travel. Recheck clearance at full droop as well as at full compression.
Driveline length and angle are the other key items. A lift this size can change the pinion angle enough to cause vibration, so measure it after installation. Plan for the steering and brake lines to be lengthened or routed differently, and inspect the bump stops for the new ride height.
- Check clearance at full droop and full compression
- Measure the pinion angle after installation
- Confirm brake line length for the new height
Specifications
| Brand | Rubicon Express |
|---|---|
| Part number | R/ERE6307 (RE6307) |
| Kit type | Extreme-Duty long arm lift kit |
| Lift | 7.5 inch, per the title |
| Lift height range | 6 to 7 inches |
| Tire size | 33 inches |
| Rear lift method | Leaf springs |
| Shocks | No shocks per the title; specifications say shocks included |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 1984–2001 Jeep Cherokee (XJ) in the Base, Briarwood, Chief, Classic, Country, Laredo, Limited, Pioneer, SE and Sport trims.
Other Cherokee years and models are not on this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A 7.5-inch long arm lift changes the suspension layout and the driveline angles, so the crossmember, the track bar, the pinion angle and the alignment should be checked after the install.
What’s included
The kit includes the three-piece crossmember, Extreme-Duty radius long arms, Super-Flex spherical ball joints, heavy-duty track bar, track bar bracket brace and Gen II disconnects. Check the box contents on arrival to confirm whether shocks are included.
