Overview
The Rubicon Express JKR443 is a 3.5 inch extreme duty radius long arm lift kit for the Jeep Wrangler JK. Rubicon Express describes its Extreme-Duty Long Arm System as the first radius long arm suspension available for the JK.
The system is engineered to work with the Jeep’s electronic stability control and the Rubicon edition electronic sway bar. Its geometry is designed to keep pinion and driveshaft angles in phase and to limit suspension jacking and squat.
The chromoly radius long arms are designed to be used with properly valved shocks. The arrangement is intended to transmit throttle input to the wheels over varied terrain, which supports sure-footed traction and positive suspension feedback.
The system is designed for on-road handling and off-road performance without disabling factory safety features.
Key features
- Extreme duty radius long arm system
- Chromoly radius long arms
- Geometry designed to keep pinion and driveshaft angles in phase
- Designed to work with electronic stability control and the Rubicon edition sway bar
- Adjustable control arms with Super-Flex spherical ball joints
- PT-MEG Super-Ride bushings
- Full width transmission crossmember, no welding
Choosing shocks for radius arms
Radius arm suspensions depend on the shock to control axle movement, so shock selection matters as much as the arms. Because shocks are not part of this kit, select units that suit the new geometry, the 3 to 4.99 inch lift range, and your typical driving. Confirm mounting points before buying.
Consider how you drive when comparing shock designs, since firmer valving suits faster trail runs while softer valving suits daily driving. Check the travel length against the new arm position so the shock does not bottom out or run short at full extension.
Electronic stability control and the sway bar work with the suspension, so keep the factory sway bar and stability system functioning. Inspect the radius arm bushings and bolts regularly, and recheck pinion angle after changing shocks or ride height.
Specifications
| Brand | Rubicon Express |
|---|---|
| Part number | JKR443 |
| Lift height | 3.5 inch |
| Lift height range | 3 to 4.99 inches |
| Suspension type | Extreme duty radius long arm |
| Control arm material | Chromoly |
| Ball joints | Super-Flex spherical |
| Bushings | PT-MEG Super-Ride |
| Crossmember | Full width transmission |
| Shocks | Not included |
| Welding | None required |
Vehicle fitment
It fits the 2007–2018 Jeep Wrangler (JK), since this radius long arm system was first made for the JK.
The JL, the Gladiator, and the TJ and LJ are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Radius long arms change axle location, so check the pinion and driveline angles after installation. Shocks are not included, so select shocks that suit the new geometry.

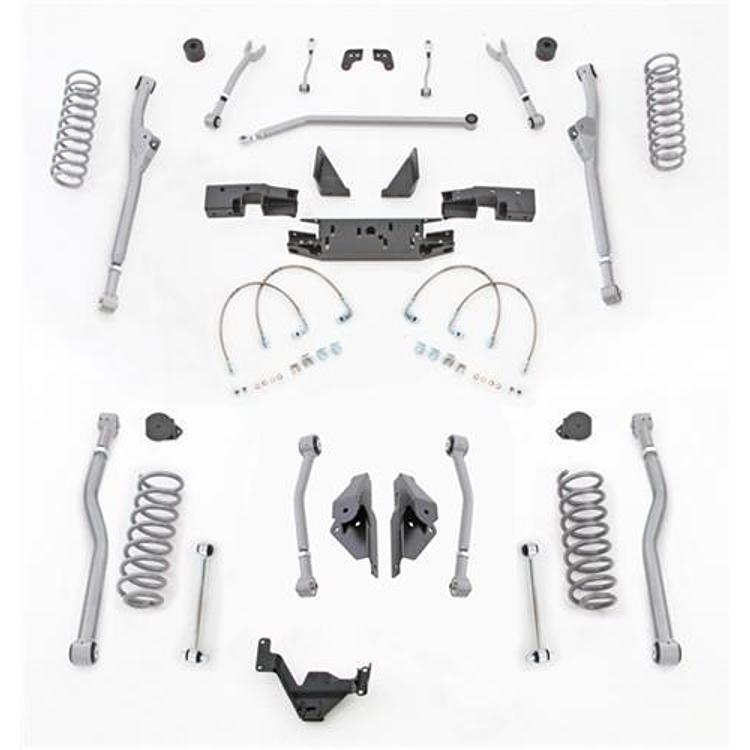

What’s included
Chromoly radius long arms, adjustable control arms, Super-Flex spherical ball joints, PT-MEG Super-Ride bushings and a full width transmission crossmember.
Not included: shocks.
