Overview
The Rubicon Express JK4R23M is a 3.5-inch extreme-duty long arm lift kit with a 4-link front, a radius rear and Monotube shocks. It is the shock-equipped version of the JK4R23 and fits the 2007-2018 Jeep Wrangler (JK). The kit includes upper and lower control arms, a transmission crossmember, lift springs, brake lines, a track bar and a drag link.
The Extreme-Duty Long Arm System is a radius long arm suspension for the Jeep Wrangler JK. The chromoly radius long arms and geometry are built to keep pinion and driveshaft angles in phase and reduce suspension jacking and squat. It is designed to work with the Jeep’s electronic stability controls and the Rubicon edition electronic sway bar.
Key features
- 3.5-inch lift height
- Front 4-link and rear radius long arm layout
- Monotube shocks included
- Upper and lower control arms included
- Transmission crossmember included
- Lift springs, brake lines, track bar and drag link included
- Adjustable chromoly upper and lower control arms with Super-Flex joints in the broader system
Radius arms and driveline angles
Radius rear arms control axle position through a fixed link, which limits axle twist under acceleration and braking. The arms also let the axle move in a controlled arc, which is why pinion and driveshaft angles are checked after installation. Watch for changes in ride height and steering feel during the first few drives.
Radius arm bushings and mounts take steady load, so they are worth inspecting on a routine basis. Look for cracked bushings, loose brackets and movement at the axle end. Track bars and drag links are often replaced in the same work because they share steering and axle geometry, so check those parts while the suspension is apart.
- Check pinion and driveshaft angles after installation
- Inspect radius arm bushings for cracks
- Look for loose or worn track bar mounts
- Check drag link ends for play
- Recheck alignment after the first few drives
Specifications
| Brand | Rubicon Express |
|---|---|
| Part number | JK4R23M |
| UPC | 70000651273 |
| System type | Extreme-duty front 4-link and rear radius long arm |
| Lift height | 3.5 inches (chart range 3 to 4.99 inches) |
| Shocks | Monotube, included |
| Included hardware | Upper and lower control arms, transmission crossmember, lift springs, brake lines, track bar, drag link |
Vehicle fitment
It fits the 2007-2018 Jeep Wrangler (JK) in the 70th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S and X versions.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Because the radius arms change pinion and driveline geometry, the alignment and driveline angles should be checked after installation. The Monotube shocks are installed with the kit, so no separate shock set is needed.
What’s included

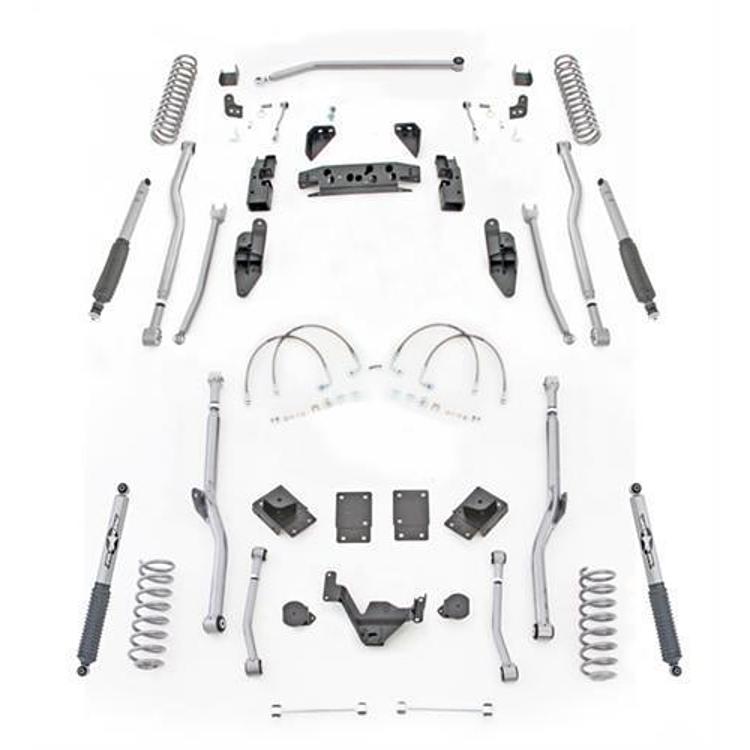

The kit includes the upper and lower control arms, transmission crossmember, lift springs, brake lines, track bar, drag link and Monotube shocks.
The Monotube shocks are included, so the kit covers the shock side as well as the arms. The 4-link front and radius rear are designed to keep pinion and driveshaft angles in phase, and the alignment and driveline angles should still be checked after installation.
