Overview
The RE5505 is a 2.5-inch standard leaf spring lift kit with twin tube shocks for the 1987–1995 Jeep Wrangler (YJ). It is an entry-level setup with a modest lift that changes the YJ’s stock stance and works as a complete suspension system.
The kit pairs four Rubicon Express leaf springs with four twin tube shocks and sway bar disconnects. Rubicon Express rates the kit for durability, flexibility and ride quality, and the RE5505 carries the company’s Advantage Lifetime Warranty.
Key features
- 2.5 inches of lift from a leaf spring system

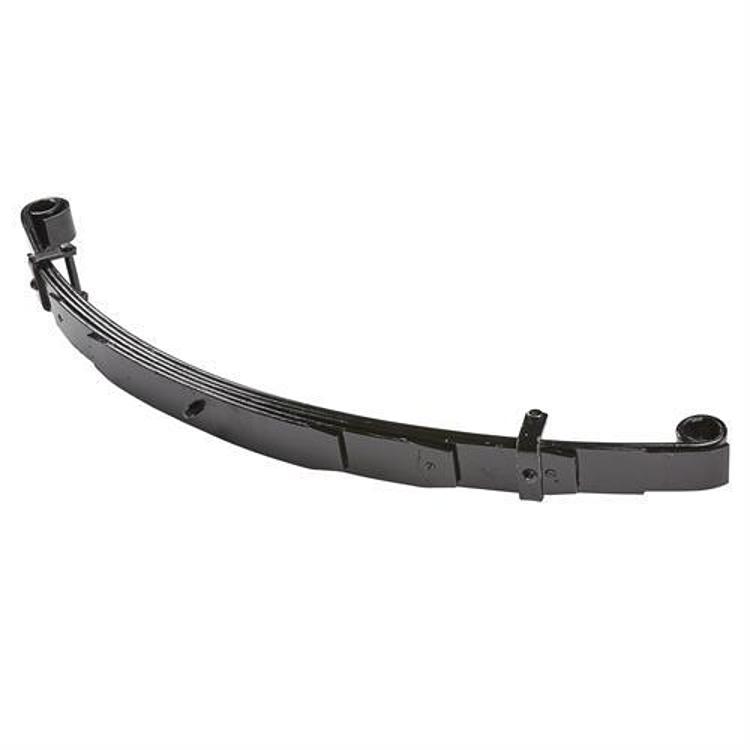

- Four Rubicon Express leaf springs
- Four twin tube shocks included

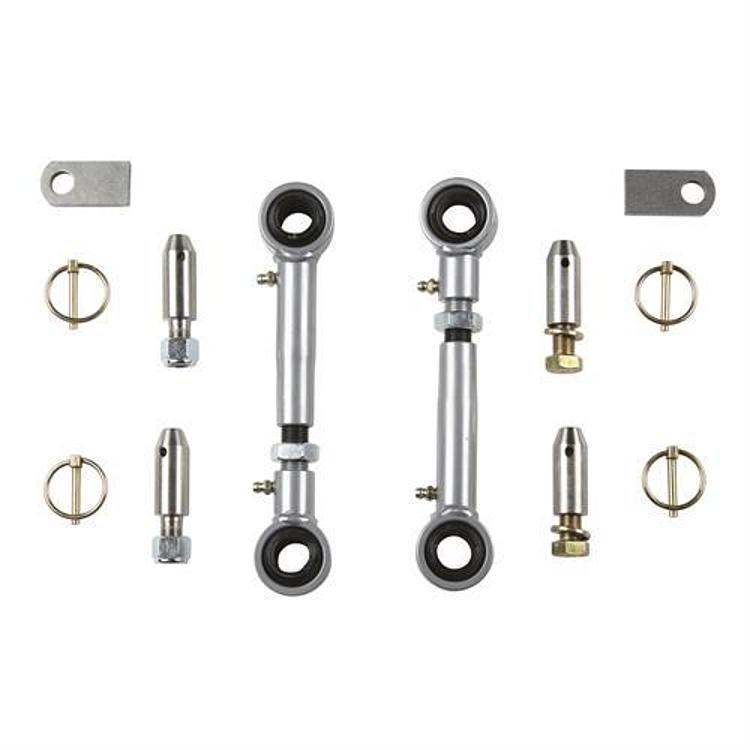

- Sway bar disconnects included
- Rated by Rubicon Express for good durability, flexibility and ride quality
- Covered by the Rubicon Express Advantage Lifetime Warranty
Alignment and driveline after a lift
Raising a leaf spring suspension changes the angles of the driveshafts and the front wheel alignment, which affects steering feel and tire wear. Check the driveline angles once the kit is in, and have the front alignment set after the new springs settle. Brake lines and wiring should also be checked for stretch or chafing at the new ride height.
Bump stops and sway bar connections are part of the ride height system, so inspect them as you go. Tires should clear the body and steering components through the full range of suspension travel.
- Check driveline angles after installation
- Have the front alignment set once the springs settle
- Inspect brake lines for stretch or chafing
- Verify tire and steering clearance through full travel
Specifications
| Brand | Rubicon Express |
|---|---|
| Part number | RE5505 |
| UPC | 614901441406 |
| Lift height | 2.5 inches |
| Suspension type | Leaf spring, standard kit |
| Rear lift method | Leaf springs |
| Leaf springs | 4 |
| Shocks | 4 twin tube shocks, included |
| Sway bar | Disconnects included |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 1987–1995 Jeep Wrangler (YJ).
This kit is built for the 1987–1995 YJ. If you have a 1997–2006 Wrangler (TJ), a 2004–2006 Wrangler (LJ) or a 2007–2018 Wrangler (JK), confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
Raising the suspension with leaf springs changes driveline angles and front wheel alignment. Have the alignment checked and the driveline angles inspected once the kit is installed.
What’s included

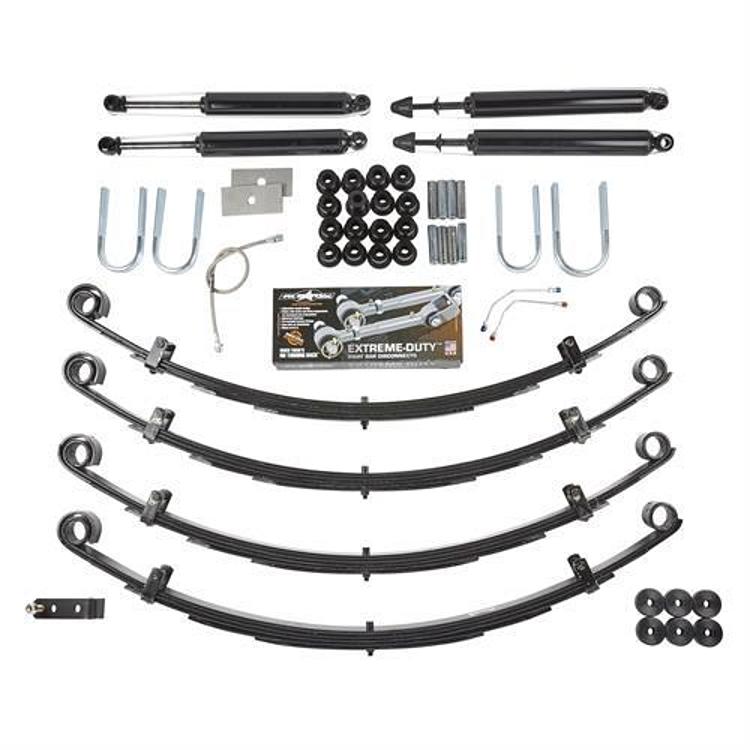

Four Rubicon Express leaf springs, four twin tube shocks and sway bar disconnects.
