Overview

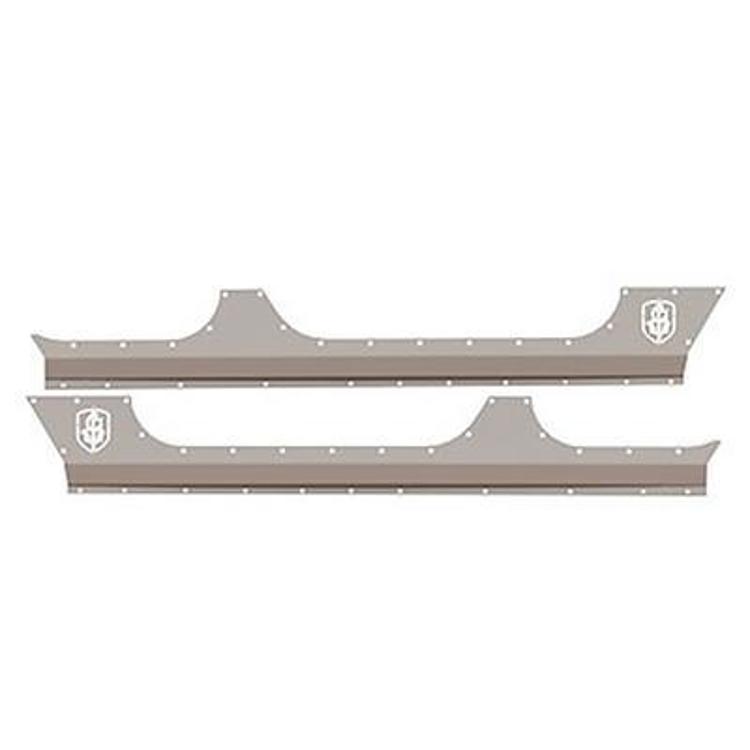

The Road Armor BodyArmor Rocker Panel for four-door models is bare steel armor, part number JK300. It is a formed steel plate rocker guard for the four-door Jeep Wrangler JK Unlimited, protecting the rocker panels and the full pinch seam beneath the doors. The design covers the pinch seam along its full length.
The armor follows the body contour and mounts along the full length of the pinch seam using nutsert rivets and two factory holes. It is CNC laser cut from 3/16 inch thick plate, brake-formed and finish welded. The armor belongs to the JK Defender Series and integrates with Road Armor Rear Skins.
Key features
- Full pinch seam protection along the length beneath the doors
- CNC laser cut from 3/16 inch thick plate
- Brake-formed and finish welded construction
- Uses two factory holes on the pinch seam for mounting
- Integrates with Road Armor Rear Skins
- Bare steel finish for four-door models
Full seam protection
A rocker guard that covers the pinch seam protects a part of the body that many shorter guards leave exposed. The seam sits where the door meets the lower body, so rocks and branches can catch it directly on trail sections. A long, continuous plate spreads that load across the seam rather than leaving one point to take the full hit.
Bare steel will develop surface rust where it is scratched, so plan a coating step after fitting. Sand any weld spots, apply primer and a matching finish, and inspect the rivets after the first few outings. Loose nutserts should be replaced rather than overtightened, since they can strip the seam.
- Prime and paint bare steel after fitting
- Inspect nutsert rivets after early trail use
- Check door gap after the armor is mounted
Specifications
| Brand | Road Armor |
|---|---|
| Part number | JK300 |
| UPC | 811873024723 |
| Type | Formed plate guard |
| Material | 3/16 inch thick steel plate, CNC laser cut |
| Finish | Bare steel |
| Body style | 4-door models |
| Mounting | Nutsert rivets along the pinch seam and two factory holes |
| Installation type | Cutting or drilling required |
Vehicle fitment
It fits these vehicles:
- 2007–2016 Jeep Wrangler (JK) Unlimited 70th Anniversary, Unlimited 75th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited Sport S and Unlimited X
It covers Unlimited four-door trims only, so two-door Wrangler JK models are not part of this fit. Earlier Wrangler generations and other JK years are not part of this fit either. Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
Installation requires drilling and a rivet tool, because the armor is secured with nutsert rivets along the full length of the pinch seam beneath the doors. The two factory holes on the seam are the starting points for fit.
What’s included
The rocker armor itself is included. A rivet tool is needed for installation.
