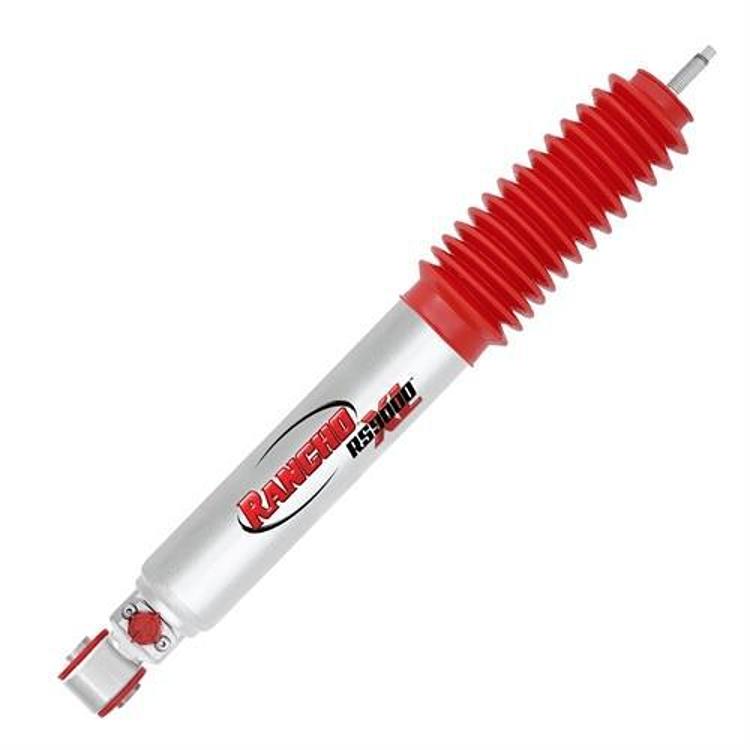

Rancho RS9000XL Series Shock Absorber – RS999305

Rancho

$250.15In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 5:30 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 2003–2016 Toyota 4Runner and 2007–2013 Toyota FJ Cruiser
  • Rear Rancho RS9000XL shock, part number RS999305
  • Lift range from w/0 up to 1.5 in.
  • 9-position tuning, 18mm Nitro Carb rod

Description

Overview

The Rancho RS999305 is a rear RS9000XL Series shock absorber that fits the 2003–2016 Toyota 4Runner and 2007–2013 Toyota FJ Cruiser. It is nitrogen gas charged, uses a 2.75-in. (70mm) body and features a 9-position tuning system.

Its lift range runs from w/0 up to 1.5 in. Lift. The shock also has an 18mm Nitro Carb rod, polyurethane bushings, a liquid metallic finish and a protective boot.

Key features

  • 9-position tuning technology
  • Nitrogen gas charged
  • 2.75-in. (70mm) body diameter
  • 18mm Nitro Carb rod
  • Liquid metallic finish
  • Polyurethane bushings
  • Protective boot included

Lift range and ride height

Ride height changes how far a rear shock must extend and compress. When a suspension is raised, the shock can end up working near the limits of its travel, especially at full droop on uneven ground. Matching the shock to the height you run keeps the axle controlled and reduces the chance of bottoming out.

Driveshaft angle, brake lines and sway bar links are the parts most affected by a height change, so check their clearance after installation. Extended-travel or longer shocks sometimes become necessary for larger changes. Re-check the bolts after the first few trail runs, since new geometry can settle.

  • Measure ride height before and after the change
  • Check brake line routing at full droop
  • Inspect the sway bar end links for stretch
  • Replace rear shocks in pairs

Specifications

Brand Rancho
Part number RS999305
UPC 10039703093054
Shock series RS9000XL Series
Position Rear
Body diameter 2.75-in. (70mm)
Rod 18mm Nitro Carb
Bushings Polyurethane
Finish Liquid metallic
Tuning 9-position manual/remote myRide
Charge Nitrogen gas charged
Lift height w/0 – 1.5 in. Lift
Fitment type Direct Fit
Warranty Limited lifetime

Vehicle fitment

It fits the 2003–2016 Toyota 4Runner (Limited, SR5, Sport, TRD Pro, Trail) and the 2007–2013 Toyota FJ Cruiser (Base, TRD Special Edition, Trail Teams Special Edition).

Other Toyota models are not on this list, and 4Runner or FJ Cruiser years outside those ranges are not covered. Confirm your vehicle’s year, model and trim before ordering.

What’s included

A protective boot is included with the shock. No other items are named as part of the package.

SKU: RANRS999305 Category:

Specification

Shipping weight 6.70 lbs
Package dimensions 24.10 × 3.30 × 3.10 in
brands

Fitment

VehicleYearsTrims
Toyota 4Runner2003–2016Limited, SR5, Sport, TRD Pro, Trail
Toyota FJ Cruiser2007–2013Base, TRD Special Edition, Trail Teams Special Edition

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the RS999305 fit a 2010 Toyota 4Runner?

Yes. It fits 2003–2016 Toyota 4Runner in Limited, SR5, Sport, TRD Pro and Trail trims, which covers 2010. Make sure your year, model and trim match before ordering.

How much lift does the RS999305 cover?

It covers a lift range from w/0 up to 1.5 in. Lift. If your build sits outside that range, confirm the ride height and fit for your vehicle before ordering.

Is the RS999305 a front or rear shock?

It is a rear shock, with Rear as its position. It has a 9-position tuning system and a 2.75-in. (70mm) body.

Do rear shocks need replacing when the suspension is raised?

Often, yes. Shock length and travel should suit the new ride height, so check whether the current shocks still have enough extension at full droop. Confirm fit for your trim before ordering.

How often should shock mounts be inspected?

Check mounts at every oil change or tire rotation. Look for cracked rubber, loose fasteners and bent eyelets. Tighten hardware to the vehicle service specification and replace worn bushings promptly.
