Rancho RS9000XL Series Shock Absorber – RS999006

Rancho

$117.98In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 5:10 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

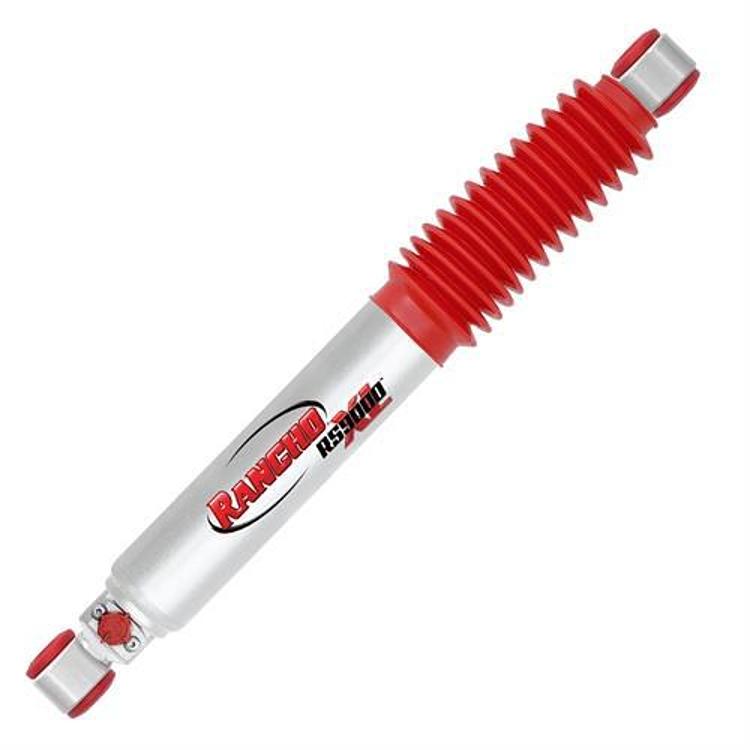

  • Rancho RS999006 rear shock absorber for the 1995–2004 Toyota Tacoma (Base, S-Runner)
  • Nine-position adjustable damping with a gas charged remote reservoir
  • Large 18mm Nitro Carb rod and 2.75-in. (70mm) body diameter
  • Liquid metallic finish with polyurethane bushings
  • Protective boot included, backed by a limited lifetime warranty

Description

Overview

The Rancho RS999006 is a rear shock absorber from the RS9000XL Series for the 1995–2004 Toyota Tacoma (Base, S-Runner). It is a gas charged shock with a remote reservoir and nine-position adjustable damping for compression and rebound, built for performance light trucks used on and off road.

The 2.75-in. (70mm) body and large 18mm Nitro Carb rod follow the RS9000XL Series design. It is a direct fit with no lift or drop (w/0 in. Lift/Drop), so it works as a replacement shock. Damping can be changed across nine positions without swapping shocks, and the unit carries a limited lifetime warranty.

Key features

  • Nine-position tuning technology for adjustable compression and rebound damping
  • Gas charged remote reservoir in anodized aluminum, connected by a stainless steel braided hose
  • Large 18mm Nitro Carb rod
  • 2.75-in. (70mm) body diameter
  • Liquid metallic finish
  • Polyurethane bushings
  • Protective boot included

Remote reservoir routing

A remote reservoir keeps the gas chamber away from the shock body, which helps manage heat on long runs. Routing matters, because a hose that rubs on a tire, a bracket or the exhaust can wear through quickly. Leave slack in the hose so it does not pull tight at full compression or full rebound, and use the mounting points to keep it clear of moving parts.

Check the reservoir mount after the first few drives, since vibration can loosen it. Braided hose fittings should be inspected for kinks and seepage at the ends. If you change tires or add a larger wheel, recheck clearance around the reservoir, because a new tire can change how close the hose sits to the body.

  • Recheck hose clearance after tire changes
  • Inspect fittings for seepage
  • Keep the boot in place around the rod

Specifications

Brand Rancho
Part number RS999006
UPC 10039703090060
Shock series RS9000XL
Position Rear
Body diameter 2.75-in. (70mm)
Rod 18mm Nitro Carb rod
Tuning 9-position tuning technology
Gas charge Nitrogen gas charged
Reservoir Remote, anodized aluminum
Hose High pressure stainless steel braided hose
Finish Liquid metallic
Bushings Polyurethane
Protective boot Included
Lift height w/0 in. Lift/Drop
Fitment type Direct fit
Warranty Limited lifetime

Vehicle fitment

It fits the 1995–2004 Toyota Tacoma in the Base and S-Runner trims. Later Tacoma generations and other Toyota models fall outside this fit.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Keep the remote reservoir and its braided hose clear of moving suspension parts, tires and exhaust heat when routing them, and check that the hose will not rub at full travel. The protective boot should stay in place around the rod to keep dirt and grit off the rod surface.

What’s included

One rear RS9000XL shock absorber with its protective boot.

SKU: RANRS999006 Category:

Specification

Shipping weight 6.60 lbs
Package dimensions 24.10 × 3.30 × 3.10 in
brands

Fitment

VehicleYearsTrims
Toyota Tacoma1995–2004Base, S-Runner

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What is the Rancho RS999006 and what does it fit?

The Rancho RS999006 is a rear RS9000XL Series shock absorber with nine-position adjustable damping and a gas charged remote reservoir. It fits the 1995–2004 Toyota Tacoma in the Base and S-Runner trims.

Does the RS999006 fit a newer Tacoma?

No. Later Tacoma generations fall outside the fit, which covers only the 1995–2004 Toyota Tacoma in the Base and S-Runner trims. Confirm your year, model and trim before ordering.

Is the protective boot included with this shock?

Yes. The protective boot is included with the shock, which has a 2.75-in. (70mm) body and an 18mm Nitro Carb rod. Rancho's limited lifetime warranty applies to the unit.

How many damping settings does the RS999006 have?

It has nine settings. The RS9000XL tuning technology adjusts compression and rebound across those positions, and the remote reservoir is nitrogen gas charged.

What should I check on the reservoir after installing?

Confirm the hose clears the tire, frame and exhaust through full travel, and that the reservoir is tight in its mount. Look for fluid or gas at the hose ends after the first drive. Recheck those points after rough trail use.
