Pro Comp Motorsports Series 10″ Double Row LED Combo Spot/ Flood Light Bar – 75210

Pro Comp Suspension

Shop Pro Comp Suspension Light Bars on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pro Comp Motorsports Series 10 inch double row LED combo spot and flood light bar, part number 75210
  • Osram 5W LED bulbs in a double-row layout
  • Bracket mount, clear lens, straight housing, sold as a single bar
  • Universal fit, wiring harness, switch, relay and brackets included

Description

Overview

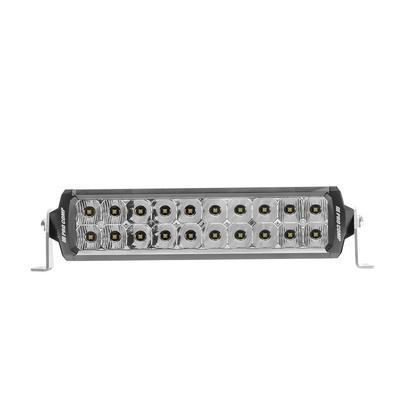

The Pro Comp Motorsports Series 10 Inch Double Row LED Combo Spot/Flood Light Bar, part number 75210, is a straight, 10 inch light bar with two rows of Osram 5W LEDs. It produces a combined spot and flood beam, has a clear lens and a black finish, and is sold as a single bar with a bracket mount. The bar is a universal fit, so it is not tied to a particular vehicle.

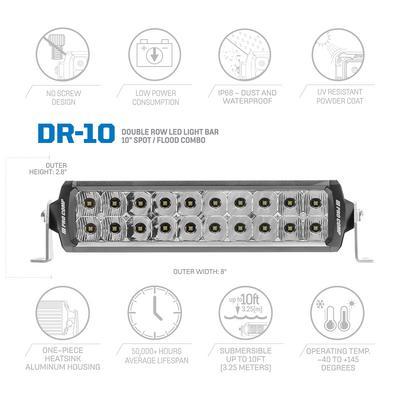

The housing is an IP68-rated one-piece heatsink design with no screws in the body, which Pro Comp describes as a patented construction. Pro Comp rates the bar for a 50,000-plus hour life span.

The double row layout places two rows of LEDs in a 10 inch housing, which is the difference from the single row 75110. Bracket mounting leaves the exact position to the installer, so choose a spot where the bar sits level and the beam is not blocked by the body.

Key features

  • Double row of Osram 5W LEDs
  • Combined spot and flood beam pattern
  • IP68 housing with a one-piece heatsink and no-screw design
  • Rated life span of 50,000-plus hours
  • Straight bar with a clear lens

Wiring and relay basics

A relay keeps the high current of an auxiliary light bar away from the switch, which only carries a small control current. Running the bar through a relay with a fused feed is the usual approach for LED bars of this type. Route the feed from the battery through a fuse close to the battery, and keep the cable away from hot exhaust parts and moving suspension components.

On the trail, a combined spot and flood pattern helps with both the track ahead and the edges of the path. Aim the bar so the spot covers the line you intend to take and the flood fills the sides. Re-check the aim after the first few runs, since bracket bolts can loosen on rough ground.

  • Use a fused feed close to the battery
  • Keep the harness clear of moving suspension parts
  • Re-check bracket bolts after the first trail runs

Specifications

Brand Pro Comp Suspension
Part number 75210
Type Light bar
Size 10 inch
LED row configuration Double row
Bulb type Osram 5W LED
Beam pattern Spot/flood
Lens color Clear
Finish Black
Shape Straight

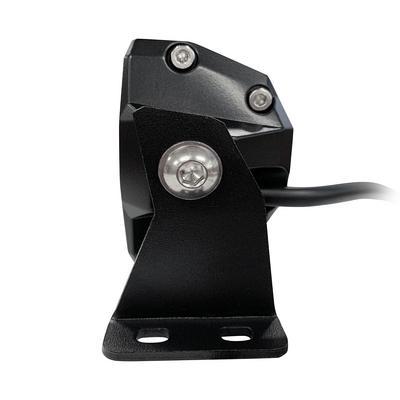

Mounting Bracket
Sold as Single
Housing rating IP68

Vehicle fitment

It is a universal fit light bar, so it is not built for one vehicle. Confirm fit for your vehicle’s year, model and trim before ordering, and place the bracket where the spot and flood beam is clear of the bodywork.

Installation notes

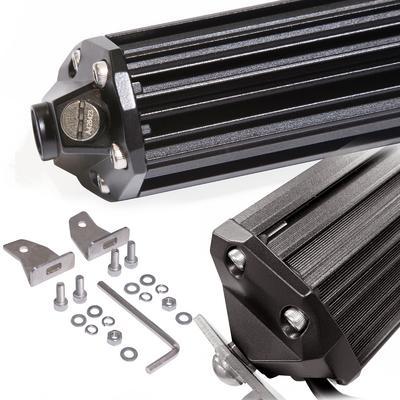

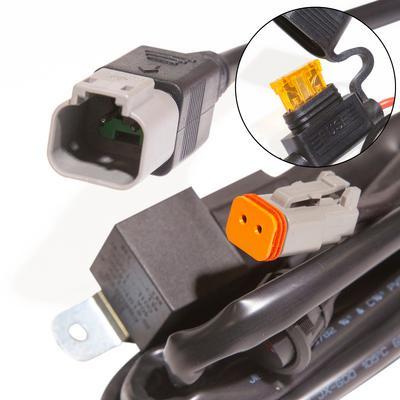

The kit includes the wiring harness, switch, relay, mounting brackets and hardware. Wire it through the relay and check local rules on auxiliary driving lights before use on public roads.

What’s included

One light bar with a wiring harness, switch, relay, mounting brackets and hardware.

Questions & Answers

Is the 75210 a universal fit light bar?

Yes. It is a universal fit bar, so it is not built for one vehicle. Choose a bracket position that gives the spot and flood beam a clear view of the road.

How many LED rows does the 75210 have?

It has a double row of Osram 5W LEDs. The bar is sold as a single unit with a combined spot and flood beam.

Does the 75210 come with its wiring?

Yes. The wiring harness, switch, relay, mounting brackets and hardware come with the bar. Plan the wire route before fitting the bar.

How do I keep a light bar from draining the battery?

Wire it through the relay and switch so it runs only when you turn it on. Use the switch for the bar rather than leaving it powered, and avoid long periods of use with the engine off.

Should I clean the lens regularly?

Yes. Wipe the clear lens with a soft cloth and mild soap when mud or road grime builds up, because a dirty lens reduces the light reaching the road. Avoid abrasive pads that can scratch the surface.
