Overview
The Rough Country Black Series 20 Inch LED Light Bar with Cool White DRL (part 70920BD) is a 20 inch bar rated at 18000 lumens and 200 watts. Rough Country describes its output as a strong light in a modern package, and the bar carries a cool white DRL strip alongside the main light.

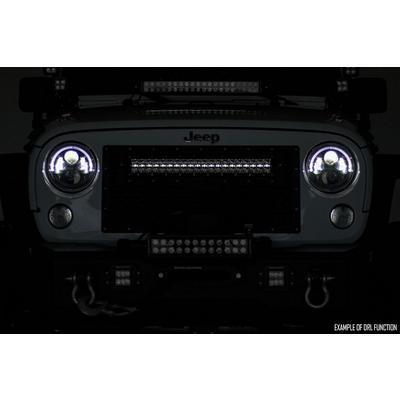

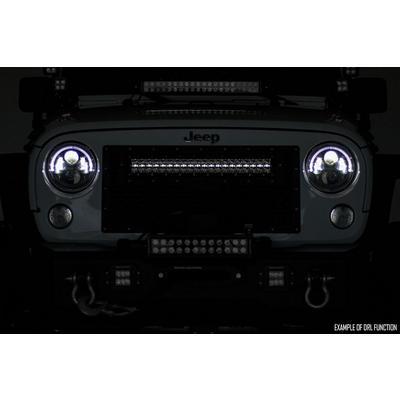

The DRL strip is a line of LEDs that Rough Country says illuminates in a way similar to the daytime running light option on modern headlights, which it says gives the vehicle more visibility and a distinct look. The bar’s housing is die-cast aluminum rated IP67, and each LED is wired with an IP68 rated harness that includes a three-position toggle switch and an in-line fuse. Rough Country includes a 3-year warranty with the bar.
Key features
- 18000 lumens at 200 watts
- Cool white DRL strip of LEDs
- IP67 die-cast aluminum housing
- IP68 rated harness
- Three-position toggle switch
- In-line fuse included
- 3-year warranty
Powering a high-output bar
A 200 watt bar draws a large load, so the power feed has to be planned as carefully as the mounting. Use a wire gauge and fuse rating sized for the full draw over the length of the run, and keep the ground connection short and clean. A poorly sized feed can overheat, dim the bar or trip the fuse on a cold start.

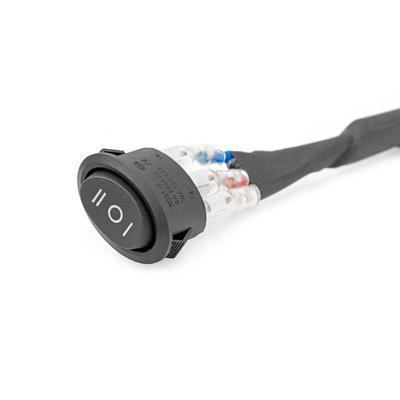

The three-position toggle switch should sit where the driver can reach it, and it should be kept dry. The DRL strip can run in a separate mode from the main light, so check each position after wiring to confirm the bar behaves as expected. Route the harness away from moving parts and hot components.
- Size the wire and fuse for the full load
- Keep the ground connection short and clean
- Test each switch position after wiring
Specifications
| Brand | Rough Country |
|---|---|
| Part number | 70920BD |
| Light series | Black Series |
| Length | 20 inch |
| Output | 18000 lumens; 200 watts |
| DRL | Cool white strip of LEDs |
| Housing | Die-cast aluminum, IP67 |
| Harness | IP68 waterproof, three-position toggle switch, in-line fuse |
| Warranty | 3 year |
Vehicle fitment
The bar is universal fit and is not built for one vehicle. At 200 watts, the wire and fuse need to be sized for that load, and the 20 inch length should be measured against the mounting spot before drilling.
Installation notes
Size the wiring and fuse for the 200 watt load, and connect the three-position toggle switch as supplied. Check local rules for DRL and auxiliary lighting on public roads before installation.
What’s included
One 20 inch Black Series LED light bar with cool white DRL, its IP68 rated harness, a three-position toggle switch and in-line fuse.
