Overview

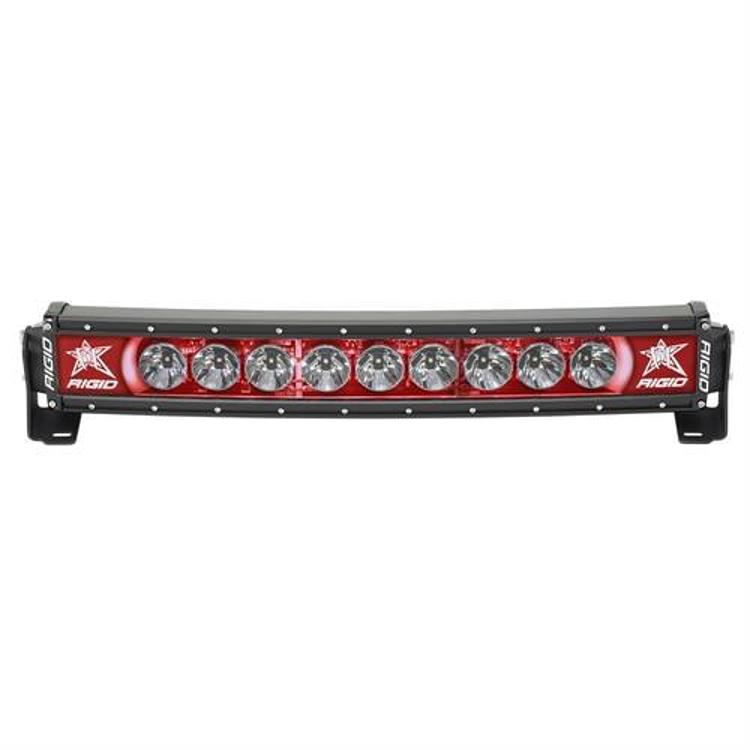

The Rigid Industries Radiance Curve Plus 20 inch light bar in red, part 32002, is an LED light bar with red back-lighting. It is universal fit and runs on 10 to 15 V DC.
The Radiance Curve Plus uses the same high-grade aluminum alloy housing as the E-Series, with a black exposed printed circuit board and Broad Spot optics that combine spot and flood beam patterns. It draws a fraction of the power of incandescent lighting. Rated output reaches up to 4,752 raw lumens in the 10 size.
The back-lighting is independently controlled and can run on a dedicated wire without the primary LEDs. Back-lighting is available in white, amber, red, blue and green, and the Radiance bars come in 20 to 54 lengths.
Key features
- Red back-lighting, independently controlled
- Dedicated wire to run back-lighting without primary LEDs
- 50,000+ hour lifespan
- IP68 compliant against dust and water ingress
- SAE J575 compliant for shock and vibration
- Over and under voltage protection, plus reverse polarity protection
- Protected against RFI and EMI
- GORE pressure equalizing vent
- Impact resistant polycarbonate lens
- Black powder coated mounting brackets, included
Using back-lighting on the trail
Back-lighting is useful for marking a bar’s position, for signaling in camp or during setup, and for adding a light accent to a build. Because the back-lighting runs independently of the primary LEDs, you can switch it on without drawing the full beam. Plan the switch location before you run wire, so the controls sit within easy reach from the driver’s seat.
Light bars for off-road work take regular abuse from vibration, dust and water, so inspect the mount, lens and connectors at the start of each season. Wipe the lens with a soft cloth and mild cleaner, and keep the vent free of mud. Check the harness for chafing where it passes through the firewall or a panel edge, since a worn wire is a common cause of intermittent lighting.
Specifications
| Brand | Rigid Industries |
|---|---|
| Part number | 32002 |
| UPC | 849774016301 |
| Length | 20 inch |
| Back-light color | Red |
| Input voltage | 10 to 15 V DC |
| Lifespan | 50,000+ hours |
| Operating temperature | -40 F to +145 F, or -40 C to +60 C |
| Heatsink | High-grade aluminum alloy with integrated thermal management |
| Lens | Impact resistant polycarbonate |
| Finish | UV polyester powder coat |
| Ingress rating | IP68 compliant |
| Shock and vibration | SAE J575 compliant |
| Other ratings | RoHS compliant |
| Fitment | Universal fit |
Vehicle fitment
This light bar is universal fit, so it is not tied to a single vehicle. Pick a mounting location that suits the 20 inch length and check the mounting brackets against your vehicle before installing.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The bar is rated for 10 to 15 V DC, so confirm your vehicle’s electrical system falls in that range before connecting. Use a fused connection, and check local rules for auxiliary lights on public roads.
What’s included
Mounting brackets are included. A Multi-Trigger Harness with two backlit LED rocker switches, red and blue, is one option for controlling the bar. Check the package contents against your installation before starting.
Not included: Confirm whether the wiring harness is part of your order before installing.
