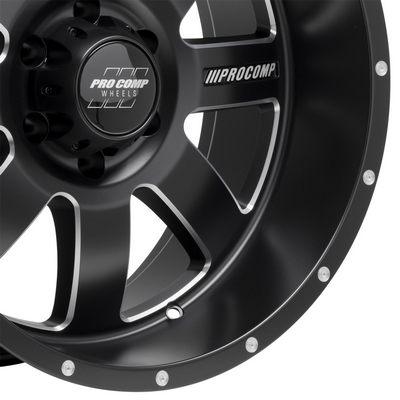

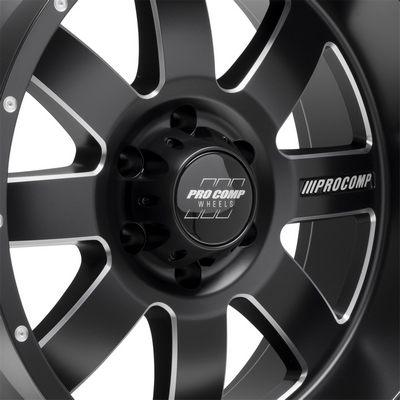

Pro Comp 73 Series Trilogy, 20x10 Wheel with 6x135 Bolt Pattern – Satin Black Milled – 5173-21036

Pro Comp Alloy Wheels

Shop Pro Comp Alloy Wheels 20x10 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pro Comp PXA5173-21036: 20×10 aluminum spoke wheel, 73 Series Trilogy, satin black milled
  • 6 on 135 bolt pattern, center bore 87, offset -18, backspacing 4.75
  • Spoke style, low-pressure cast construction
  • No vehicle is named for this wheel

Description

Overview

The Pro Comp PXA5173-21036 is a 20×10 aluminum spoke wheel from the Pro Comp 73 Series Trilogy line, in satin black milled with a 6 on 135 bolt pattern. It is sold as one wheel with a center bore of 87 and an offset of -18.

This 10-inch-wide wheel has a backspacing of 4.75, which together with the -18 offset sets how far the tire sits outboard of the mounting face.

Key features

  • Low-pressure cast aluminum construction
  • Spoke face style
  • 20-inch diameter, 10-inch width
  • 6 on 135 bolt pattern
  • Center bore of 87
  • Offset -18 with 4.75 backspacing

Hub match and wheel spacers

Hub pattern, center bore and offset work together, so a wheel that looks right can still fail to seat. A center bore that is too large relies on hub-centric rings, while a bore that is too small will not fit the hub pilot at all. Spacers change the offset and the stud length, so they are a separate fit decision that should be checked on the vehicle.

Six-lug layouts are common on larger trucks, and their hubs carry more load than four- or five-lug designs. Inspect the studs for stretching or thread damage, and replace any that look worn when new wheels are fitted. Torque the nuts in a star pattern and check them again after the first drives.

  • Confirm the hub is hub-centric or add rings
  • Inspect studs for thread damage
  • Tighten nuts in a star pattern

Specifications

Brand Pro Comp Alloy Wheels
Part number PXA5173-21036
Series 73 Series Trilogy
Style Spoke
Construction Aluminum
Finish Satin black milled
Diameter 20 inches
Width 10 inches
Bolt pattern 6 on 135
Center bore 87
Offset -18
Backspacing 4.75

Vehicle fitment

No vehicle is named for this wheel. The universal fit label does not identify a truck or Jeep. A six-lug hub at 135 with an 87 center bore is required, and the -18 offset needs a clearance check.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Six lug holes at 135 must line up exactly with the hub, so a 6 on 5.5 hub will not take this wheel. Test-fit with the tire mounted to confirm caliper and fender clearance. Six lug holes on a 135 spacing must match the hub exactly, and the 87 center bore should seat on the hub pilot. A 20-inch rim at 10 inches wide needs a tire sized for both diameter and width, and the tire’s sidewall affects overall height. The -18 offset moves the tire outward, so the inner fender and brake caliper need a clearance check with the tire mounted. The 4.75 backspacing sets how the inner lip sits behind the mounting face. Measure the vehicle’s hub spacing before ordering, since a 6 on 5.5 hub will not take this wheel. Pair the rim with a tire width suited to 10 inches.

What’s included

One 20×10 aluminum wheel in satin black milled. Verify the included hardware against your installation plan before starting.

SKU: PXA5173-21036 Categories: ,

Questions & Answers

Is the PXA5173-21036 a 6 on 135 wheel?

Yes. It has a 6 on 135 bolt pattern and a center bore of 87. The offset is -18 and the backspacing is 4.75, so confirm all four figures before ordering.

What is the offset of this Trilogy 20x10?

The offset is -18 with a backspacing of 4.75. The negative offset moves the tire outward, so test-fit before fitting a tire.

Does the PXA5173-21036 include lug nuts?

Plan for lug nuts and a center cap as separate purchases if needed. Check stud length and seat type before ordering, since both must suit the six-lug hub.

What happens if the center bore does not match the hub?

The wheel may sit off center and cause vibration at speed. A bore that is too large can be fitted with hub-centric rings, while a bore that is too small will not seat. Do not force a wheel onto a hub that does not fit the pilot.
