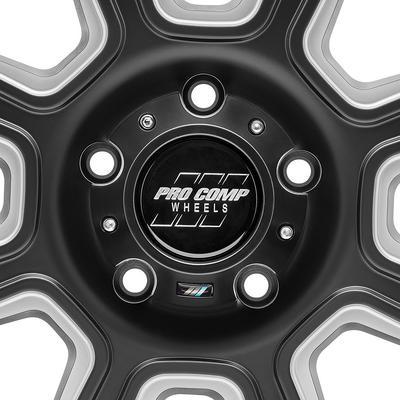

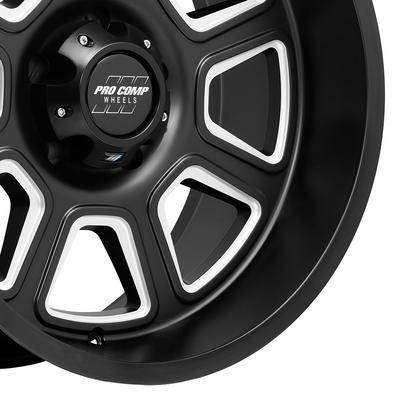

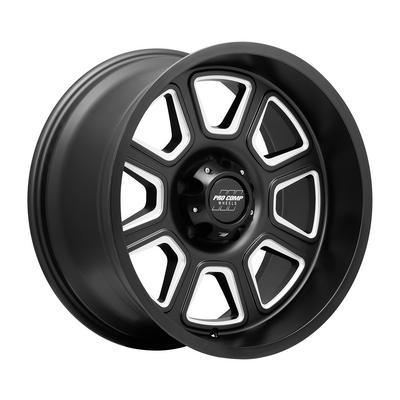

Pro Comp 64 Series Gunner, 20x10 with 5x5.5 Bolt Pattern – Satin Black Milled- 5164-218547

Pro Comp Alloy Wheels

Shop Pro Comp Alloy Wheels 20x10 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pro Comp PXA5164-218547: 20×10 aluminum eight-spoke Gunner wheel, satin black milled
  • 5 on 5.5 bolt pattern, center bore 108, offset -18, backspacing 4.75
  • Pro Comp rates it at 3650 lbs with a two-year finish warranty
  • No vehicle is named for this wheel

Description

Overview

The Pro Comp PXA5164-218547 is a 20×10 aluminum eight-spoke wheel from the Pro Comp 64 Series Gunner, in satin black milled with a 5 on 5.5 bolt pattern. It is one wheel with a center bore of 108.

The Gunner is a chiseled eight-spoke design with CNC-milled windows and a 3650-pound eight rating. This 10-inch-wide wheel has an offset of -18 and a backspacing of 4.75. The Pro Comp Promise warranty is transferable, and the finish carries two years of coverage.

Key features

  • Chiseled eight-spoke design
  • CNC-milled windows
  • 20-inch diameter, 10-inch width
  • 5 on 5.5 bolt pattern
  • Center bore of 108
  • Offset -18 with 4.75 backspacing

Choosing a hub-matched setup

A five-lug hub at 5.5 and a 108 center bore make the hub match the first decision. Hub-centric fitting uses the center bore to locate the wheel, so the bore should sit snugly on the hub pilot rather than rely on the lugs alone. Lug nut seat style, whether conical or flat, must match the wheel’s seats or the wheel can loosen under load. Adapters and spacers change the offset and should be reviewed against the same clearance checks.

Once the wheel is on, wheel bearings and ball joints carry the extra weight of the tire mass, so a larger diameter tire rolls heavier. Inspect the lug studs for thread damage after mounting, and clean rust from the hub face before each install. After the first trail outing, look at the wheel for rubbing marks on the inner lip and check the tire pressure for even wear.

Specifications

Brand Pro Comp Alloy Wheels
Part number PXA5164-218547
Series 64 Series Gunner
Style Spoke
Construction Aluminum
Finish Satin black milled
Diameter 20 inches
Width 10 inches
Bolt pattern 5 on 5.5
Center bore 108
Offset -18
Backspacing 4.75
Load rating 3650 lbs (eight rating)
Finish warranty Two years

Vehicle fitment

No vehicle is named for this wheel. The Gunner comes in 5-, 6- and 8-lug patterns in 17- and 20-inch sizes, and this 20×10 version is cut for 5 on 5.5. Compare the hub with your vehicle before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Mount this wheel only to a five-lug hub at 5.5 with a 108 center bore. A test fit with the tire and brake caliper in place confirms clearance at the -18 offset before the first trail run. The 5 on 5.5 pattern is a different hub layout from 5 on 5, so measure the vehicle’s hub before buying. The 108 center bore should seat on the hub pilot, and the -18 offset and 10-inch width require tire and caliper clearance checks. Test-fit with the planned tire size before trail use, and compare the 4.75 backspacing with inner clearance measured on the vehicle.

What’s included

A single 20×10 aluminum wheel makes up the package.

SKU: PXA5164-218547 Categories: ,

Questions & Answers

What bolt pattern is the Pro Comp PXA5164-218547?

It is a 5 on 5.5 bolt pattern with a center bore of 108. The offset is -18 and the backspacing is 4.75, so match each figure to the hub before buying.

How strong is the Gunner wheel?

Pro Comp rates the Gunner at 3650 pounds on its eight rating. The brand also cites a two-year finish warranty and a transferable Pro Comp Promise.

Does the PXA5164-218547 include lug nuts?

Plan for lug nut and center cap needs before ordering, since this wheel's package may not cover them. Compare your hub's stud and seat type with the hardware you already own, then add anything missing to the order.

Can spacers be used with this wheel?

Spacers change the offset and push the tire outward, so they should be added only after clearance is confirmed. Test-fit with the tire mounted at full steering lock, and use hub-centric spacers where possible. Recheck lug torque after the first drives.
