Overview

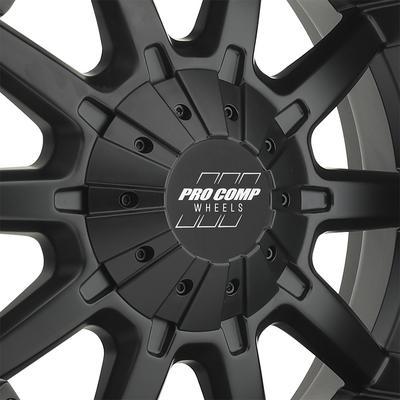

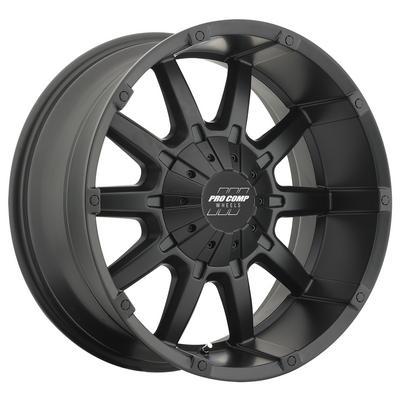

The Pro Comp 50 Series 10 Gauge 20×9 wheel, part number PXA5050-293945, is a 20-inch aluminum spoke wheel that is 9 inches wide. Its primary bolt pattern is 6 on 5.5, with 6 on 135 also listed, and the finish is satin black.
The wheel has a 125 center bore, a -12 offset and a backspacing of 4.5. The 10 Gauge wheels are low-pressure cast aluminum. No vehicle is named, and it is a universal fit wheel.
Key features
- Low-pressure cast aluminum
- 20-inch diameter and 9-inch width
- 6 on 5.5 bolt pattern, 6 on 135 also listed
- Center bore 125
- Offset -12 with backspacing 4.5
- Satin black spoke design
Six-lug hub considerations
Two six-lug layouts on a single wheel mean the hub decides everything. Confirm which stud spacing the vehicle uses before ordering, because a wheel meant for one layout cannot be forced onto the other. Once the bolt pattern matches, check the center bore against the hub pilot and confirm the wheel centers properly on the hub.
Spoke wheels with negative offsets put more bending load on the mounting face, so inspect the face around the stud holes for cracks after heavy use. Use lug nuts with the seat type that fits the wheel, and keep the hub face free of rust and debris. A quick torque check after the first trail runs keeps the studs seated under load.
- Verify the six-lug layout first
- Compare pilot diameter with the center bore
- Inspect the stud hole area after heavy use
- Recheck torque after the first drives
Specifications
| Brand | Pro Comp Alloy Wheels |
|---|---|
| Part number | PXA5050-293945 |
| Wheel diameter | 20 inches |
| Wheel width | 9 inches |
| Bolt pattern | 6 on 5.5 (also 6 on 135) |
| Center bore | 125 |
| Offset | -12 |
| Backspacing | 4.5 |
| Style | Spoke |
| Finish | Satin black |
| Construction | Aluminum |
| Series | 50 Series 10 Gauge |
Vehicle fitment
No vehicle list applies to this wheel, which is universal fit. Compare the hub with both listed six-lug layouts, 6 on 5.5 and 6 on 135, and confirm the 125 center bore.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
With a -12 offset on a 20-inch wheel, check the outer fender clearance and the caliper before the first drive. Confirm which six-lug layout the hub uses first.
The 20-inch diameter and 9-inch width set the rim size, and the spoke design is finished in satin black. Because both six-lug layouts are listed, the hub should be matched to either the 6 on 5.5 or 6 on 135 pattern before the wheel is chosen. Measure the caliper and the tire diameter before driving.
What’s included
One 20×9 wheel in satin black. Confirm lug nuts and center caps suit the six-lug hub before mounting.
