Pro Comp 33 Series Grid, 18x9 Wheel with 5 on 5 Bolt Pattern – Matte Black – 7033-8973

Pro Comp Alloy Wheels

Shop Pro Comp Alloy Wheels 18x9 5x5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pro Comp 33 Series Grid wheel, part number PXA7033-8973
  • 18-inch diameter and 9-inch width with a 5 on 5 bolt pattern
  • Offset 0 and backspacing 5
  • Matte black spoke design, cast aluminum
  • Universal fit, not built for one vehicle model

Description

Overview

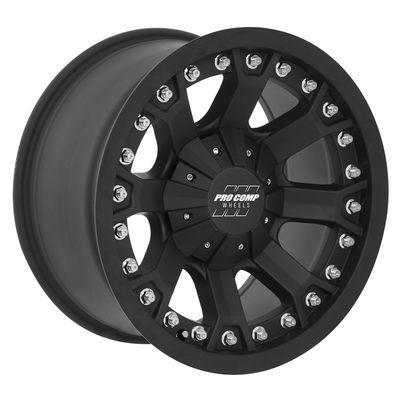

The Pro Comp 33 Series Grid 18×9 wheel, part number PXA7033-8973, is an 18-inch aluminum spoke wheel that is 9 inches wide. It has a 5 on 5 bolt pattern and a black finish, and it belongs to the 33 Series line.

Pro Comp casts its alloy wheels with low-pressure casting for trucks and sport utility vehicles. This 18×9 model has a 0 offset and a backspacing of 5, so the mounting face sits at the center of the wheel’s width. Being universal fit, it is chosen by bolt pattern and clearance rather than by vehicle.

Key features

  • Low-pressure cast aluminum construction
  • 18-inch by 9-inch spoke wheel
  • 5 on 5 bolt pattern for five-lug hubs
  • Offset 0 with a backspacing of 5
  • Black finish in the 33 Series flat black series finish
  • Part of the Pro Comp 33 Series Grid family

Brake and fender clearance

Clearance is the usual limit on a wheel with a zero offset and a five-lug pattern. The mounting face sits close to the centerline, so the inner edge of the rim moves toward the brake caliper and suspension. Measure the caliper body, the rotor hat, and the control arms before choosing a wheel, and recheck after any suspension change.

Spoke wheels also need regular inspection. Look at the spoke joints and rim edges after off-road trips, and check the lug seats for wear. Keep the valve stem clear of the caliper, and rotate tires on schedule so that the wheel wears evenly.

  • Measure caliper and rotor clearance first
  • Inspect spoke joints after rough trail use
  • Check lug seats at each tire rotation

Specifications

Brand Pro Comp Alloy Wheels
Part number PXA7033-8973
Wheel diameter 18 inches
Wheel width 9 inches
Bolt pattern 5 on 5
Center bore 83
Offset 0
Backspacing 5
Style Spoke
Finish Black, 33 Series flat black
Construction Aluminum
Series 33 Series Grid

Vehicle fitment

This wheel is universal fit and is not built for one vehicle model. Match the 5 on 5 bolt pattern to your hub, then compare the 0 offset and 5 backspacing with your brake caliper and fender clearance. Choose a tire size that suits the 18-inch diameter and 9-inch width.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

With a 0 offset, the wheel sits centered in the wheel well compared with positive or negative offset designs, so test-fit with your brakes and suspension before driving. Check that the wheel’s center bore and lug seat match your hub.

What’s included

One 18×9 wheel in black is included. Check the package contents for center caps and lug nuts against your installation before ordering.

SKU: PXA7033-8973 Categories: ,

Questions & Answers

What bolt pattern does the Pro Comp 33 Series Grid 18x9 PXA7033-8973 use?

It uses a 5 on 5 bolt pattern, with a 9-inch width and an 18-inch diameter. Match the bolt pattern to your hub before ordering, since the wheel is universal fit and not built for one vehicle.

Is this wheel built for a specific vehicle?

No. It is universal fit, so it is not tied to one model. Fit depends on bolt pattern, offset, backspacing and clearance with your brakes and suspension.

What offset and backspacing does this wheel have?

The wheel has a 0 offset and a backspacing of 5. Compare those figures with the offset your vehicle needs and check the fender and caliper clearance before mounting the wheel.

How should a black spoke wheel be cleaned?

Wash with mild soap, water, and a soft brush. Avoid acidic wheel cleaners, which can etch aluminum and leave dull spots. Rinse thoroughly and dry before applying any protectant.

When is a wheel spacer appropriate with a wheel like this?

Spacers change the mounting face position and load the hub differently. Use them only when clearance requires it, with hub-centric fit and correct lug length, and recheck the lug nuts after the first drive.
