Overview

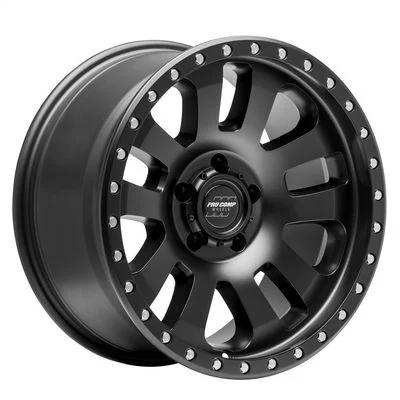

The Pro Comp 46 Series Prodigy 18×9 wheel, part number PXA7046-8973, is an 18-inch aluminum spoke wheel that is 9 inches wide. It has a 5 on 5 bolt pattern and a satin black finish, and it belongs to the 46 Series.
The wheel has a 72 center bore, a 0 offset and a 5 backspacing. Xtreme alloys are made from aerospace alloys using Counter Pressure Casting. The fit is universal, so no specific vehicle is matched.
Key features
- Counter Pressure Casting process.
- 18-inch diameter and 9-inch width
- 5 on 5 bolt pattern
- Center bore 72
- Offset 0 and backspacing 5
- Satin black spoke design
- Center caps included, per the brand
Brake clearance on 18-inch wheels
An 18-inch wheel leaves less radial room between the tire and the brake caliper than a smaller wheel on the same hub. The caliper body, its bracket and the rotor hat all sit inside the wheel’s opening, so the gap is the number to watch. Turn the wheel by hand with it mounted and watch each caliper edge.
A 0 offset places the mounting face at the center of the width, which spreads load fairly evenly across the bearings and suspension. Sport utility vehicles often run wider tires on 18-inch wheels, so the tire chosen affects both clearance and load.
Changing tire diameter on an 18-inch wheel shifts the clearance numbers, and speedometer accuracy changes with it. Rotate tires on schedule so wear stays even across the axle.
- Measure the caliper gap with the wheel mounted
- Check tire diameter against the fender
- Retighten lug nuts after the first short drive
- Recheck clearance after any tire change
Specifications
| Brand | Pro Comp Alloy Wheels |
|---|---|
| Part number | PXA7046-8973 |
| Wheel diameter | 18 inches |
| Wheel width | 9 inches |
| Bolt pattern | 5 on 5 |
| Center bore | 72 |
| Offset | 0 |
| Backspacing | 5 |
| Style | Spoke |
| Finish | Satin black |
| Construction | Aluminum |
| Series | 46 Series |
Vehicle fitment
This Prodigy is not matched to a make, model or year. Universal fit means the 5 on 5 bolt pattern and the 72 center bore should be confirmed against your hub before ordering, along with brake clearance for the 18-inch size.
Confirm your vehicle’s year, model and trim before ordering.
Pro Comp says its Xtreme alloys use aerospace alloys and Counter Pressure Casting, and presents the line for sport utility vehicles with high offset brake clearance. This 18×9 version has a 0 offset and 5 backspacing, so its face sits at the center of the width rather than being pushed outward.
Start with the 72 center bore and 5 on 5 pattern, since these set the hub match. Because the wheel is universal fit, measure your own hub and check brake clearance before ordering.
What’s included
Xtreme alloy wheels include center caps, and this 18×9 model is part of that line. Check whether lug nuts are needed for your installation before ordering.
