Overview
The Power Stop K1940-36 is a front and rear Heavy Duty Truck and Tow brake kit for the 2004–2008 Ford F-150 and the 2006–2008 Lincoln Mark LT. It combines slotted and cross-drilled rotors with Z36 high-friction metallic pads for both axles, without calipers.
The Z36 kit is built for heavy-duty braking in wet, hot and hilly conditions and towing at maximum weight. The rotors are coated, brake lines are left out and it is a direct fit. A drilled rotor has holes through its friction face and a slotted rotor has grooves cut across it, and this kit uses both. The front-only versions for related trucks are the K1939-36 and K1943-36, so an owner who needs just the front axle can choose one of those. The Z36 pads are metallic and high friction.
Key features
- One part number for front and rear brakes.
- Slotted and cross-drilled rotors.
- Z36 high-friction metallic pads.
- It fits the F-150 and the Mark LT.
- Calipers and brake lines are separate items.
Front and rear wear planning
Trucks that tow often wear the front and rear brakes unevenly, so a matched set of pads and rotors helps keep stopping balanced. Heavy loads place extra demand on the front axle during braking, which is why both axles are often serviced together. Plan the job around four wheel positions.
Metallic pads suit heavy use and tolerate heat, but they can be louder and dustier than ceramic compounds. Slotted and cross-drilled rotors add surface area for venting and clear debris, but grooves do wear pads a little faster. Choose pads for the way the truck is driven most of the time.
Replacing only one axle makes sense only where the existing parts are in good shape, so measure rotor thickness and check the pads before deciding. Mixed wear between sides can cause pulling, so match left and right wheels as well.
- Check rotor thickness on all four wheels
- Match left and right pads
- Bed in new pads with moderate stops
Specifications
| Brand | Power Stop |
|---|---|
| Part number | K1940-36 |
| UPC | 792088565273 |
| Product type | Heavy duty truck and tow brake kit without calipers |
| Brake position | Front and rear |
| Rotor type | Slotted and cross drilled, coated |
| Brake pads | Z36 high-friction metallic pads |
| Brake lines | Not included |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2004–2008 Ford F-150 and the 2006–2008 Lincoln Mark LT, in the trims shown below.
- 2004–2008 Ford F-150 (FX2, Harley-Davidson Edition, King Ranch, Lariat, Limited, STX, THE 60TH ANNIVERSARY EDITION, XL, XLT)
- 2006–2008 Lincoln Mark LT (Base)
F-150 years outside 2004–2008 and other Lincoln models are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Because the K1940-36 spans front and rear, expect four wheel positions. Rotors and pads are replaced together at each axle and existing calipers and lines are reused.
What’s included

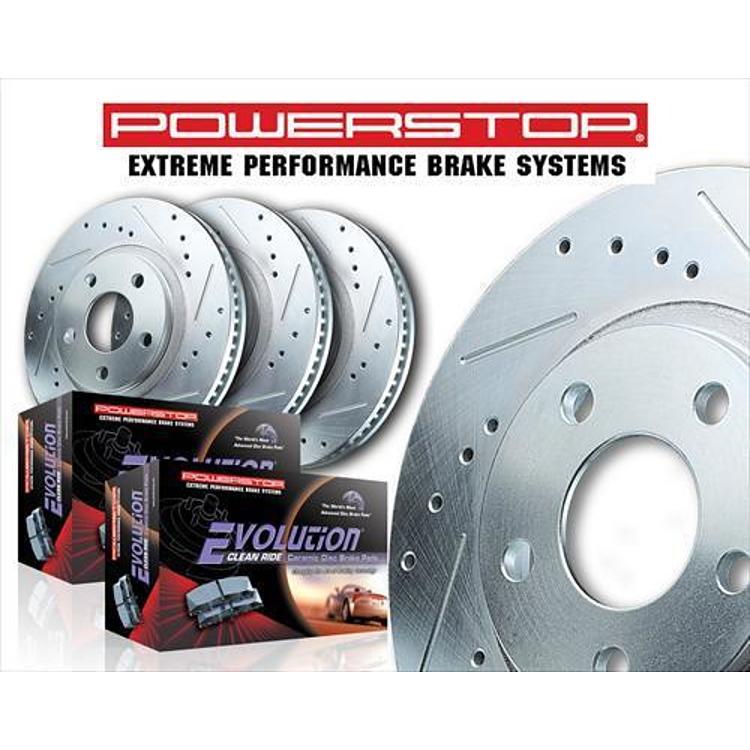

The K1940-36 contains slotted and cross-drilled rotors and Z36 high-friction metallic pads for the front and rear axles.
Not included: Calipers and brake lines.
