Overview

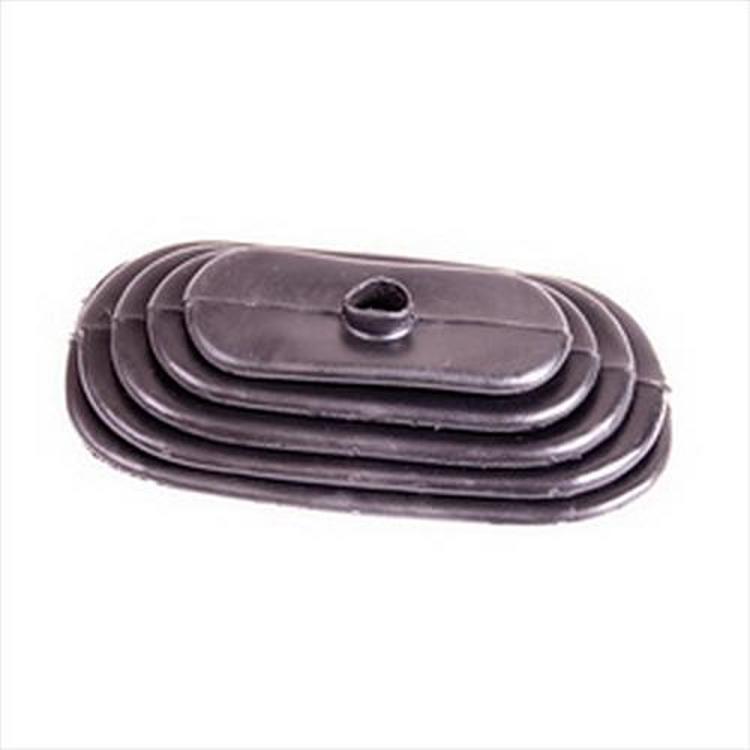

The Omix-ADA 18606.03 is an elongated accordion M20 transfer case shifter boot, 8-3/4 inches long and 4 inches wide. It fits 1976–1979 Jeep CJ5 and CJ7 models.
It is built to original specifications and comes with a limited five year warranty from Omix-ADA. The retainer ring is not included.
Key features
- Elongated accordion style
- 8-3/4 inch length and 4 inch width
- Built to original specifications
- Limited five year warranty from Omix-ADA
Measuring and fitting an accordion boot
An accordion M20 boot relies on its pleats to flex as the shifter moves, so the fit has to be correct at both ends. Measure the shifter opening and the mounting flange on your transfer case before installing the boot, and make sure the boot’s length suits the throw of the shifter. A boot that is too short pulls tight, while one that is too long can bunch and wear early.
Keep the original retainer ring on hand when removing the old boot, since the ring is not included with the new one. Clean the shifter base and remove any old sealant, then seat the boot evenly before tightening the ring. Check the seal after a few drives and re-seat it if it rides up or twists.
Specifications
| Brand | Omix-Ada |
|---|---|
| Part number | 18606.03 |
| UPC | 804314034337 |
| Length | 8-3/4 inch |
| Width | 4 inch |
| Boot style | Elongated accordion |
Vehicle fitment
It fits the 1976–1979 Jeep CJ5 in Base, Golden Eagle and Renegade trims, and the 1976–1979 Jeep CJ7 in Base, Golden Eagle and Renegade trims.
The CJ7 years 1980 to 1986 and CJ models before 1976 are not in this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Keep the original retainer ring on hand, because the ring is not included with the boot.
What’s included
The boot only.
Not included: Retainer ring.
