Overview

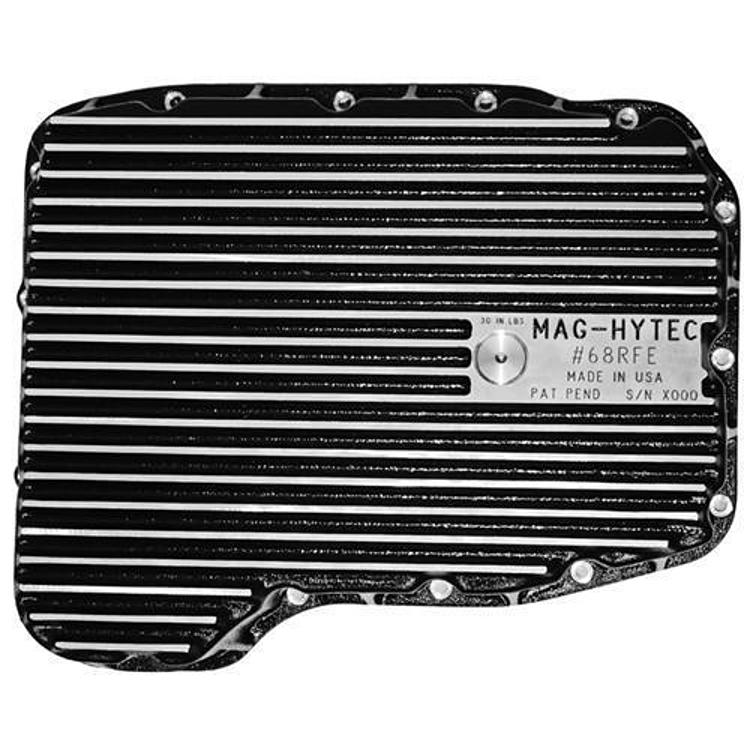

The Mag-Hytec Dodge 68RFE Deep Sump Transmission Pan (Painted) is a cast aluminum replacement pan for the 68RFE automatic transmission, with a deeper sump that holds 2.5 quarts more fluid than the stock pan. Its overall height is 4 5/8 inches, and the finned painted body is designed to help the transmission run cooler under load. It suits owners who want extra fluid capacity for towing or hard use.
Mag-Hytec builds its differential covers and transmission pans for recreational and service vehicles that work hard. This pan is cast in A356-T6 aluminum, texture powder coated black, and machined with cooling fins. Magnetic drain plugs trap worn gear material, and fluid can be changed without removing the pan. Confirm fit for your vehicle’s year, model and trim before ordering.
Key features
- Holds 2.5 quarts more fluid than the stock pan
- Overall height of 4 5/8 inches
- Finned aircraft aluminum construction for improved cooling
- Magnetic drain plugs trap worn gear material
- Fluid can be changed without removing the pan
- ARP 568 O-rings for superior sealing
- All hardware is 303 stainless steel
Installing a deep sump pan
Before the pan comes off, drain the old fluid and note any debris in the sump. The sealing surface on the transmission case should be flat and clean, since even a small high spot can cause a leak with new O-rings. Remove old gasket material with a plastic scraper rather than metal tools that can gouge the aluminum.
A deeper sump may sit closer to the crossmember, the exhaust or the driveshaft, so measure clearance before tightening the bolts. Tighten the pan bolts in a crisscross pattern to an even clamp. Refill with the correct fluid after installation, then check the level again after a short drive, since a fresh pan can hold a different amount of fluid than the old one. Keep the magnetic drain plug clean before reinstalling it.
Specifications
| Brand | Mag-Hytec |
|---|---|
| Part number | Not listed |
| UPC | 70000456524 |
| Material | A356-T6 cast aluminum |
| Finish | Painted, texture powder coated black |
| Overall height | 4 5/8 in |
| Extra capacity | 2.5 quarts more fluid than stock pan |
| Drain plug | Magnetic |
| Seals | ARP 568 O-rings |
| Hardware | 303 stainless steel |
| Warranty | Lifetime limited warranty |
Vehicle fitment
No vehicle years, models or chassis codes are given for this pan. The pan is tied to the 68RFE transmission named in the title. Confirm the transmission code against your unit before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The pan is sealed with ARP 568 O-rings. Check your existing pan and gasket before fitting, and check the deeper sump against your transmission and driveline clearance before installation.
What’s included
A magnetic drain plug is included. Check the package contents against your installation before starting.
