Mag-Hytec Ford F5R110 Deep Sump Tranmission Pan With New Style Filter (Painted) – F5R110W

Mag-Hytec

$436.93In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 19, 2026 9:30 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Mag-Hytec Ford F5R110 deep sump transmission pan with new style filter, part number F5R110W
  • Painted aluminum with magnetic drain plug
  • Tagged Universal Fit; confirm the Ford F5R110 application

Description

Overview

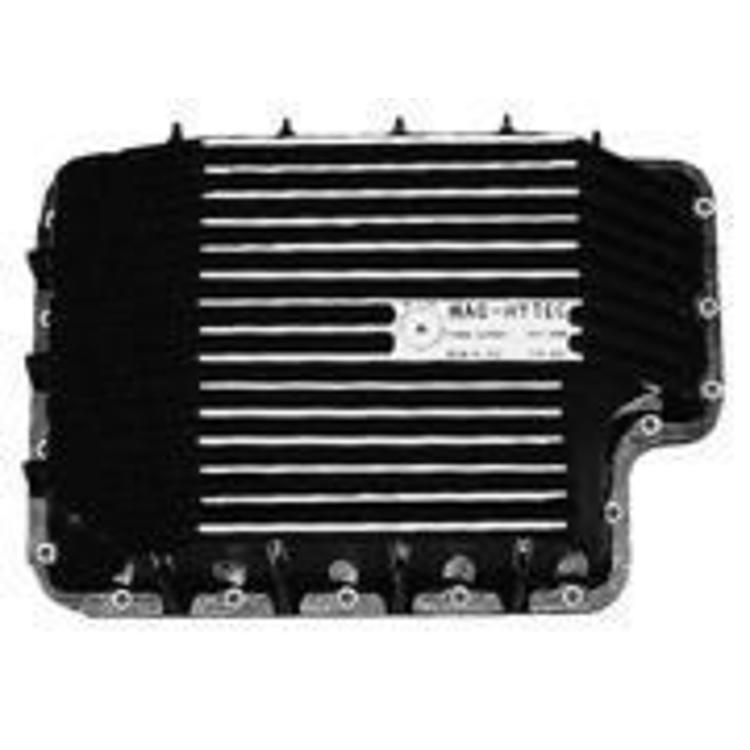

The Mag-Hytec Ford F5R110 Deep Sump Transmission Pan with New Style Filter, part number F5R110W, is a painted aluminum pan for the Ford F5R110 transmission. It comes with a new style filter.

The pan is cast from A356-T6 aluminum with machined cooling fins and a black powder coat. A magnetic drain plug traps worn gear material. It is built for the Ford F5R110 transmission, so confirm the model application before fitting.

Key features

  • New style filter included
  • Magnetic drain plug to trap worn gear material
  • Finned A356-T6 aluminum body
  • ARP 568 O-rings for sealing
  • 303 stainless steel hardware

Things to check first

Replacing the filter and pan together is a common approach when the transmission is already open for service. The old filter, the gasket surface and the pan magnet all show how the fluid has been behaving, so a quick look at each before reassembly is worthwhile. Worn clutch material or fine metal in the magnet can point to internal wear that needs a closer inspection.

A deeper pan changes the amount of fluid the transmission holds, so check the fill level once the vehicle reaches normal operating temperature. Look at the pan’s clearance to the crossmember, skid plate and exhaust before the first drive, and make sure the filter sits fully in position with no binding.

  • Inspect the filter and pan magnet at each service
  • Clean the mating surface before setting the pan
  • Use new fasteners when tightening the pan
  • Recheck the fluid level after a short test drive

Specifications

Brand Mag-Hytec
Part number F5R110W
UPC 700000452195
Filter New style (per title)
Drain plug Magnetic, included
Material A356-T6 aluminum
Finish Painted
Hardware 303 stainless steel
Fitment tag Universal Fit

Vehicle fitment

The pan is Universal Fit and is built for the Ford F5R110 transmission. Confirm fit for your vehicle’s year, model and trim before ordering.

Verify the transmission code with Mag-Hytec before fitting. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Gaskets are usually not needed on this pan design. Check that the new style filter fits the pan before reassembly.

What’s included

The pan and the new style filter. No other hardware is included.

SKU: MAGF5R110W Category:

Specification

Shipping weight 23.15 lbs
Package dimensions 21.00 × 14.30 × 7.00 in
brands

Questions & Answers

What does the Mag-Hytec F5R110W pan include?

The pan includes a new style filter and a magnetic drain plug. The body is painted aluminum, and the hardware is 303 stainless steel.

Is this pan made for a specific Ford model year?

The pan is built for the Ford F5R110 transmission. Confirm the transmission code against your unit and your vehicle's year, model and trim before fitting the pan.

What is the part number and UPC for this pan?

The part number is F5R110W, and the UPC is 700000452195. The brand is Mag-Hytec, and the manufacturer tags the pan Universal Fit.

How often should the filter be replaced?

Replace it when the transmission is serviced, or sooner if the fluid is dark, smells burnt or carries debris. Changing it with the pan keeps the fluid clean from the start.

What signs suggest the pan or filter needs attention?

Metal flakes on the magnet, fine sediment in the pan, or fluid that has darkened quickly are common signs. Any of these should be checked before the transmission is driven much farther.
