Overview

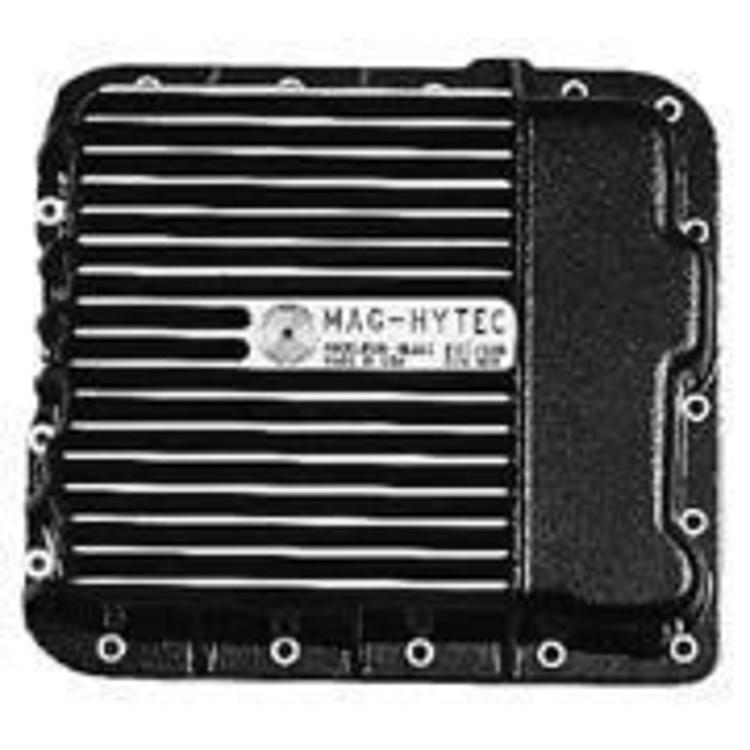

The Mag-Hytec GM 4L60E-B Deep Sump Transmission Pan, part number GM4L60E-B, is a painted aluminum pan that holds 3 1/3 quarts more oil than the stock pan. The title names the GM 4L60E-B transmission, and the overall height is 4 1/4 in.
The A356-T6 aluminum body is powder coated black with machined cooling fins. The fluid can be changed without removing the pan. A magnetic drain plug traps worn gear material, and the O-rings are ARP 568 with 303 stainless steel hardware.
Key features
- Holds 3 1/3 quarts more oil than the stock pan
- Finned aircraft aluminum construction
- Fluid change possible without removing the pan
- Magnetic drain plug
- ARP 568 O-rings and 303 stainless steel hardware
Before you buy
A deep sump pan adds oil volume to the transmission, which helps when the fluid is hot or the vehicle works hard on grades and in rough terrain. The extra capacity changes the fill amount, so the fluid level should be checked carefully after the first fill and again after a few drives.
Pan depth also affects ground clearance and the space around the crossmember, driveshaft and exhaust. Measure the area before ordering, and make sure the pan seal sits flat on the case so the gasket does not pinch during installation.
- Check the fill level with the transmission at operating temperature, following your transmission’s procedure
- Inspect the crossmember and skid plate for clearance
- Replace the pan gasket or seal if the old one is damaged
- Look for metal flakes on the magnet after the first service interval
Specifications
| Brand | Mag-Hytec |
|---|---|
| Part number | GM4L60E-B |
| UPC | 70000398456 |
| Extra capacity | 3 1/3 quarts over stock |
| Overall height | 4 1/4 in |
| Material | A356-T6 aluminum |
| Finish | Painted, powder coated black |
| Hardware | 303 stainless steel |
| Fitment tag | Universal Fit |
Vehicle fitment
It fits the GM 4L60E-B transmission. Confirm the transmission application and your vehicle’s year, model and trim before ordering.
Confirm the transmission application before fitting. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Confirm the 4 1/4 in height clears the surrounding parts and that the O-ring seats evenly on the case. Check the drain plug before filling.
What’s included
The pan with its magnetic drain plug.
