Overview

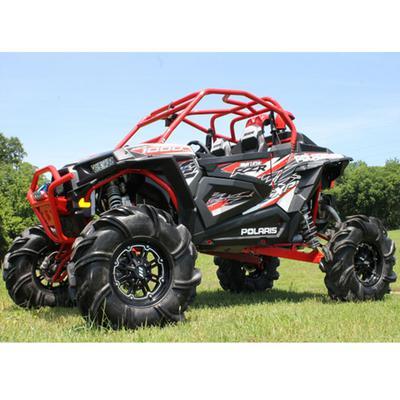

The High Lifter Products 8-inch Big Lift DHT XL in silver, part number HLPPLK-DXL-RZR1-4-S, is a bolt-on lift kit for the 2015–2016 Polaris RZR XP 1000 and the 2015–2016 Polaris RZR XP 4 1000. The kit clears tires up to 34.5 inches and includes four Outlaw High Lifter DHT XL axles custom tuned for the 8-inch lift.
The kit is built for a smooth ride and a bolt-on fit. It does not come with trailing arms. It is available raw or in custom colors, and powder coating takes up to 5 days.
Key features
- 8-inch lift height
- Four Outlaw High Lifter DHT XL axles custom tuned for this kit
- Clears tires up to 34.5 inches, per High Lifter
- Bolt-on application for a precise fit
- Available raw or in custom colors
Choosing a lift height
A lift raises the body and chassis relative to the axles, which opens room for larger tires and more suspension travel. Taller lifts change driveline angles more than modest ones, so the CV joints and axle shafts operate at steeper angles. That is why a kit is matched to its own axles rather than reusing stock parts. Before buying, think about the tires you plan to run and how often you ride rocky or rutted terrain.
A lift also affects steering geometry, brake line length and wiring. Check that the brake lines and harnesses have enough slack after the kit is installed, and confirm that steering components clear the new position. Many owners have the alignment checked after any lift and recheck the fasteners after the first few trail runs.
- Tire size you plan to run
- Driveline angle after the lift
- Brake line and harness length
- Trailing arm requirements for your build
Specifications
| Brand | High Lifter Products |
|---|---|
| Part number | HLPPLK-DXL-RZR1-4-S |
| Lift height | 8 inches |
| Maximum tire size | 34.5 inches |
| Axles included | Four Outlaw High Lifter DHT XL axles |
| Finish | Silver |
| Custom colors | Available; powder coating takes up to 5 days |
| Trailing arms | Not included |
| Installation style | Bolt-on |
Vehicle fitment
It fits the 2015–2016 Polaris RZR XP 1000 and the 2015–2016 Polaris RZR XP 4 1000.
Confirm fit for other RZR model years, the Turbo models, and the General and Ranger lines before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
It is a bolt-on application. Because the kit does not include trailing arms, confirm which trailing arms your build requires before installation. After any lift, have the alignment and driveline angles checked.
What’s included
Four Outlaw High Lifter DHT XL axles, each custom tuned for the 8-inch kit.
Not included: trailing arms.
