Overview
The Rough Country 3-inch Kawasaki lift kit (part number R/C94002) is a bolt-on lift for Kawasaki Mule UTVs. The kit lifts the front and rear 3 inches with durable, powder-coated brackets.
The kit allows tires up to 28 inches. Installation is 100% bolt-on, and the brackets are powder coated for durability.
Key features
- Full 3 inches of lift from front to rear
- Durable, powder-coated front and rear brackets
- Bolt-on installation
- Clearance for tires up to 28 inches
- Increased ground clearance and ride height
Driveline and steering after a lift
Raising a side-by-side changes the angles of the axles and driveline, which can put more load on the joints than the stock setup. Steering geometry also shifts with ride height, so the tie rod ends and steering linkage should be inspected after the work. Small changes are usually easy to manage, but larger ones need regular checks.
Tire choice matters as much as the lift itself. Larger tires add rotating weight and can rub on the body or the front fender at full steering lock. Keep the tire size within the kit’s stated limit and check clearance with the machine loaded and turned to both sides.
- Inspect CV boots and axle joints for cracks
- Check tie rod ends and steering stops
- Recheck bracket bolts after the first rides
- Watch for vibration that appears only at speed
Specifications
| Brand | Rough Country |
|---|---|
| Part number | R/C94002 |
| Lift height | 3 inches, front and rear |
| Brackets | Powder-coated, front and rear |
| Maximum tire size | 28 inches |
| Installation | Bolt-on |
| Application | Kawasaki Mule (see fitment) |
Vehicle fitment
The kit fits Kawasaki Mule PRO-DX, PRO-DXT, PRO-MX, PRO-FX, PRO-FXR and PRO-FXT models, plus Mule SX, SX 4×4, 4000, 4000 Trans, 4010 and 4010 Trans 4×4 models, from 2015 to 2026.
The kit fits both Mule Pro and Mule SX or 4000 series models, so confirm your exact model, year and trim before ordering.
Installation notes
Lifting the front and rear changes steering and driveline geometry, so have the alignment and driveline angles checked after installation.
What’s included

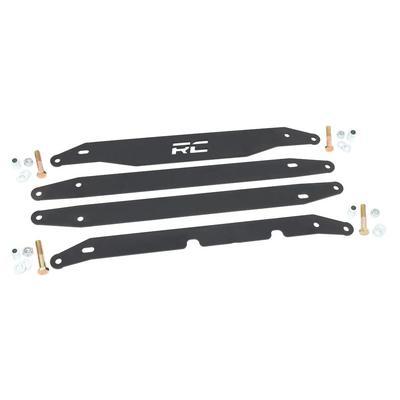

The front and rear lift brackets.
Not included: tires and wheels, which need to clear the lift.
