Overview

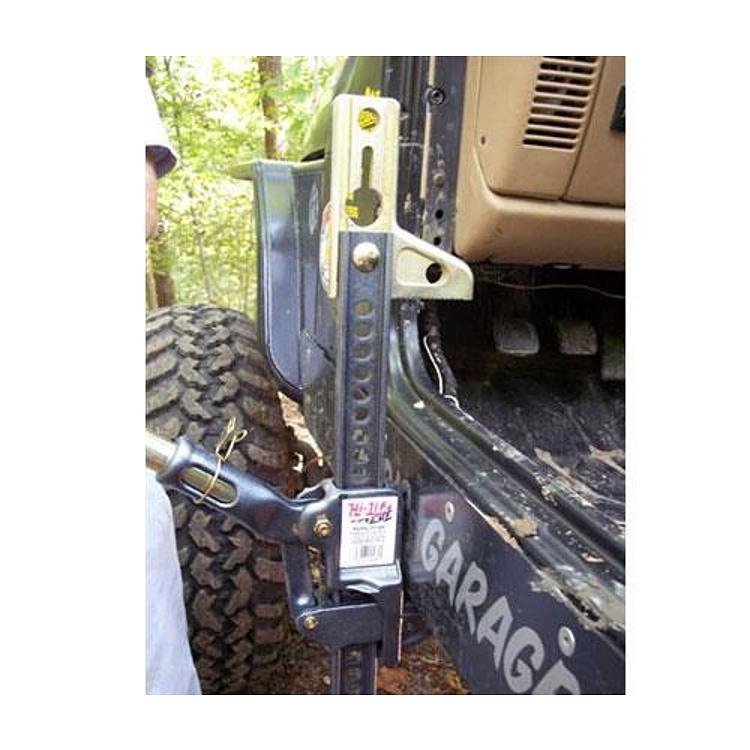

The Hi-Lift X-Treme XT-605 is a 60-inch all cast jack with a winch clamp spreader attachment and a charcoal metallic powder coat finish. One jack handles winching, clamping or spreading with loads up to 5,000 lbs. It is the all cast version of the brand’s jack.
Fitment is universal and no vehicle is named. The features below cover the attachment, the finish, the zinc-coated hardware and the warranty.
Key features
- One position covers all winching, clamping and spreading.
- Winch clamp spreader attachment replaces the standard clamp clevis.
- Handles winch, clamp or spread loads up to 5,000 lbs.
- Charcoal metallic powder coat for a distinct look.
- Gold zinc-coated hardware and handle for rust resistance under heavy use.
- Limited One Year Warranty.
Winching and spreading tips
The X-Treme is built around one position that covers winching, clamping and spreading, so it helps to set up each job before lifting. Match the attachment to the task, seat the base on firm ground and keep the load centered on the jack. A winch clamp spreader changes how force travels through the jack, so confirm the attachment is fully seated before applying load.
Cast jacks are generally heavy, so secure one firmly in the vehicle. Check the teeth on the lifting bar, the pins and the handle after each outing. Light grit can be brushed away, but cracks or bent sections mean the jack should be retired from heavy use.
- Keep the attachment and clamp pins clean and dry
- Store the jack where it cannot shift inside the vehicle
- Re-check fasteners after the first few trail runs
Specifications
| Brand | Hi-Lift Jack |
|---|---|
| Model number | XT-605 (no manufacturer part number listed) |
| Jack size | 60 inch |
| Maximum load | Up to 5,000 lbs. for winching, clamping or spreading |
| Finish | Charcoal metallic powder coat |
| Hardware and handle | Gold zinc-coat |
| Attachment | Winch clamp spreader |
| Warranty | Limited One Year Warranty |
Vehicle fitment
Fitment is universal and no make, model or year is named for the XT-605. Its 60-inch size is the figure to check against your vehicle’s ground clearance and the lift you need.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
The jack comes with its winch clamp spreader attachment in place of the standard clamp clevis.
