Overview

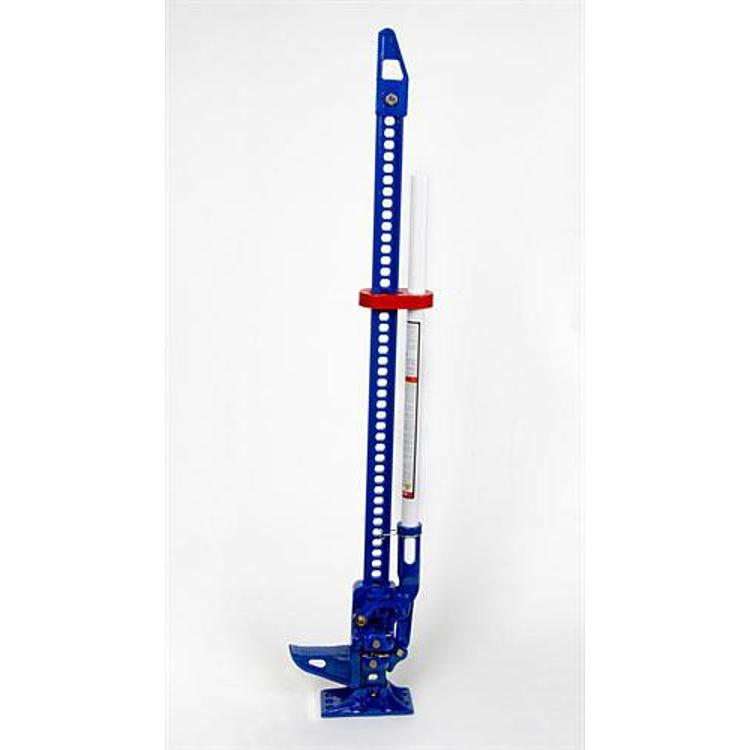

The Hi-Lift Patriot Edition 48 Inch All Cast Jack, part number PAT-485, is an all cast trail jack with a tested capacity of 7,000 lbs. Hi-Lift Jack marks it as universal fit, so it is not built for one make, model or year; it is a trail jack for off-road use.
The jack has a blue powder coat finish and a white handle, and a red handle keeper is included. Hi-Lift Jack Company donates a portion of its proceeds from every Patriot Jack to Hope for the Warriors, a group that supports post-9/11 service members, their families and families of the fallen.
Key features
- All cast construction
- Tested capacity of 7,000 lbs.
- Climbing pins of specially processed steel with 125,000 PSI tensile strength and 100,000 PSI yield
- Handle of 14-gauge high-yield structural tubing with a minimum yield of 55,000 PSI
- Blue powder coat finish with a white handle
- Red handle keeper included
Before you lift
A trail jack is only as safe as the ground and the lift point under it. Before raising a vehicle, check that the base sits flat on firm soil, and that the vehicle is stable in gear or with the parking brake set. Clear the area of people and gear. Keep the handle and climbing pins free of mud, because grit slows the lift and makes the pins harder to engage.
All cast trail jacks are heavy, so storing them in a sturdy mount with the handle secured keeps the jack from shifting. Inspect the climbing pins and handle for bends, cracks or worn teeth after rough use, and replace or repair any damaged part before the next lift. A red handle keeper helps keep the handle in place when the jack is stowed.
- Set the base on firm, level ground
- Clean grit from the climbing pins
- Inspect for bends or cracks after use
- Secure the handle when stowing
Specifications
| Brand | Hi-Lift Jack |
|---|---|
| Part number | PAT-485 |
| UPC | 52767048504 |
| Model | Patriot Edition 48 Inch All Cast Jack |
| Tested capacity | 7,000 lbs. |
| Climbing pins | Specially processed steel; 125,000 PSI tensile strength; 100,000 PSI yield |
| Handle | 14-gauge high-yield structural tubing; 55,000 PSI minimum yield; 1-5/16″ diameter x 30″ long |
| Construction | All cast |
| Finish | Blue powder coat |
| Handle color | White |
Vehicle fitment
It is universal fit, so it is not built for one make, model or year. Compare the 48 Inch length to your own needs before buying.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Use the jack only within its tested capacity of 7,000 lbs., on firm, level ground, and keep hands and feet clear while the vehicle is raised.
What’s included
Includes the Hi-Lift Patriot Edition jack with its red handle keeper.
