Overview

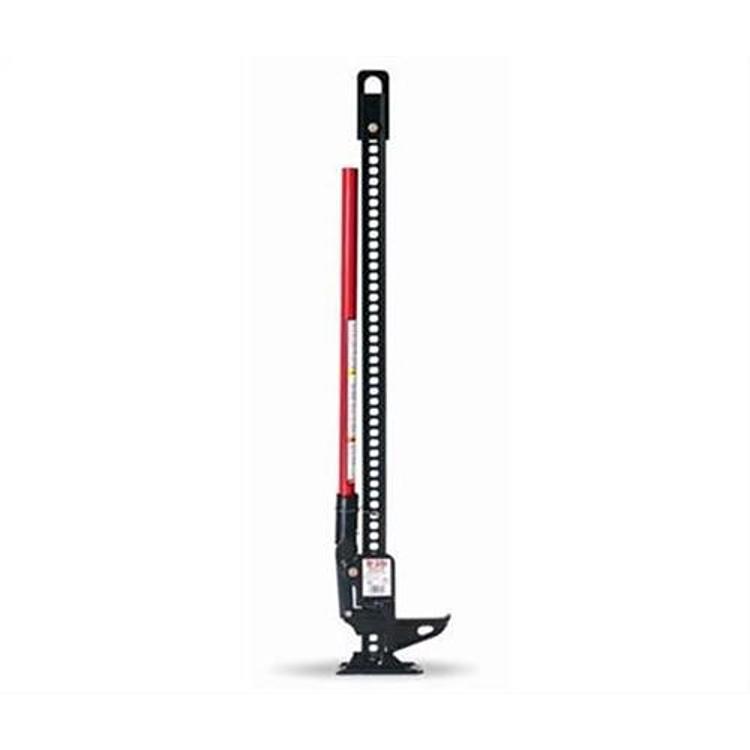

The Hi-Lift Jack HL-604 is a 60 inch cast and steel jack with a black powder coat finish and a maximum lift height of 48 inches. It weighs 31lbs and is a universal fit jack with a jack height of 60 inches.
Hi-Lift says every jack comes with an adjustable top clamp/clevis for clamping and winching. The safety bolt is designed to shear at 7,000 lbs. (3175 kg), the lifting unit drops away automatically when the load is removed, and the steel bar can be reversed for longer life. The lifting nose is 4-1/2 inch (11cm) long, the low pickup is 4 1/2 inch (11cm) and the base plate is 28 square inch.
Key features
- 60 inch overall length
- Maximum lift height of 48 inches
- Cast and steel construction with a black powder coat
- Adjustable top clamp/clevis for clamping and winching
- Safety bolt designed to shear at 7,000 lbs. (3175 kg)
- Lifting unit drops away automatically when the load is removed
- Reversible steel bar
Safe jack habits on the trail
A trail jack is a lifting tool, so its job ends when the vehicle is supported on stands or other approved supports. Set it on firm, level ground and keep the base plate fully seated, because a jack that sinks or tilts can slip. Before each lift, confirm the lifting point is solid and that no one is standing where the vehicle could drop.
The jack’s clamping and winching features expand what it can do, but they also raise the load on the parts. Keep the top clamp tight on the work, avoid side loads, and stay clear of the steel bar when it is under tension. Keep the mechanism clean and lightly lubricated so the handle moves smoothly, and store it where it will not be bent or cracked.
- Set the base on firm, level ground
- Support the vehicle on jack stands before going underneath
- Keep hands clear of the handle travel
- Inspect the cast body and steel bar for cracks or bends
Specifications
| Brand | Hi-Lift Jack |
|---|---|
| Part number | HL-604 |
| UPC | 52767006047 |
| Product type | Trail jack (cast and steel) |
| Overall length | 60 inches |
| Maximum lift height | 48 inches |
| Weight | 31lbs |
| Finish | Black powder coat |
| Safety bolt | Designed to shear at 7,000 lbs. (3175 kg) |
| Lifting nose | 4-1/2 inch (11cm) long |
| Low pickup | 4 1/2 inch (11cm) |
| Base plate | 28 square inch |
| Fit type | Universal fit |
Vehicle fitment
It is a universal fit jack and is not tied to a vehicle. Check that your vehicle has suitable jacking or lifting points before use.
This jack is universal fit and not tied to one vehicle. Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
A jack is a lifting tool, not a support. Never get under a vehicle held by a jack alone, and always support it on jack stands. Use the jack on firm, level ground, lift only at points approved for your vehicle, and follow the instructions for the lifting nose and load. Keep your hands clear of the handle’s travel and the lifting mechanism. Read all warnings on the jack before using it for clamping or winching.
What’s included
Hi-Lift Jack says every jack comes complete with an adjustable top clamp/clevis.
