Overview

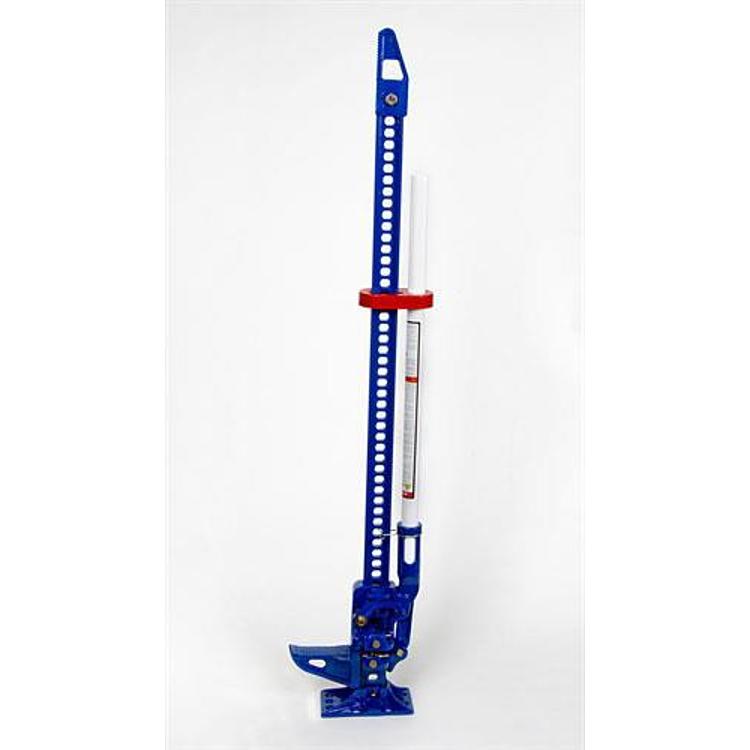

The Hi-Lift Jack PAT-605 is the Patriot Edition 60 inch all cast jack from Hi-Lift Jack. It has a blue powder coat finish, a white steel handle with a red handle keeper, and a tested capacity of 7,000 lbs.
The jack is built from all cast construction, with climbing pins of specially processed steel and a handle of 14-gauge high-yield structural tubing. Hi-Lift Jack Company, which calls itself an American company, says it donates a portion of its proceeds for every Patriot Jack sold to Hope for the Warriors, a group that works to restore a sense of self, the family unit and hope for post-9/11 service members, their families and families of the fallen who have sustained physical and psychological wounds in the line of duty.
Key features
- All cast construction
- Blue powder coat finish
- White handle with red handle keeper
- Tested capacity 7,000 lbs
- Climbing pins of specially processed steel with 125,000 PSI tensile strength and 100,000 PSI yield
- Steel handle of 14-gauge high-yield structural tubing with minimum yield of 55,000 PSI
- Handle measures 1-5/16 inch diameter by 30 inches long
- A portion of proceeds donated to Hope for the Warriors
Lift height and jack length
Jack length matters on trails as much as capacity. A longer jack gives more reach for lifting a vehicle with bigger tires or more suspension lift, but it is also heavier and takes more room to carry. Measure your clearance and planned lift before choosing, and consider whether the jack will ride inside the vehicle or on a mount.
Trail jacks work best with an accessory kit for stability, such as a base plate, when the ground is soft. Keep the climbing pins clean, and keep the lift mechanism lubricated as the owner guidance suggests. Re-check the handle and pins after rough use, and replace worn parts before the next trip.
- Measure ground clearance before choosing a length
- Consider a base plate on soft ground
- Keep the lift mechanism clean and lubricated
- Replace worn pins or handle parts
Specifications
| Brand | Hi-Lift Jack |
|---|---|
| Model | PAT-605 |
| UPC | 52767060506 |
| Length | 60 inches |
| Construction | All cast |
| Finish | Blue powder coat |
| Handle | White, 1-5/16 inch diameter by 30 inch long, 14-gauge high-yield structural steel tubing, minimum yield 55,000 PSI |
| Climbing pins | Specially processed steel, 125,000 PSI tensile strength, 100,000 PSI yield |
| Tested capacity | 7,000 lbs |
| Included hardware | Red handle keeper |
Vehicle fitment
It is universal fit, so no year, make or model is tied to it. Check your vehicle’s requirements before using a trail jack on it.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
The jack includes a red handle keeper. No other included items are named.
