Overview

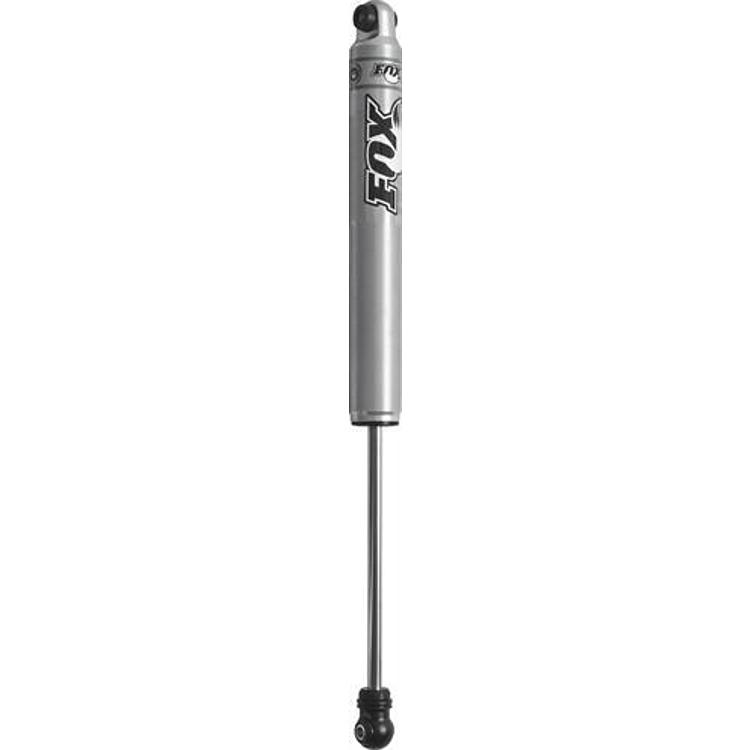

The Fox Racing Shox 985-24-130 is a rear Fox 2.0 PS Smooth IFP shock, sold individually, for three Jeep models: the 1986–1992 Jeep Comanche, the 1999–2004 Jeep Grand Cherokee (WJ) and the 1993–1998 Jeep Grand Cherokee (ZJ). Fox’s stated lift range is 1 to 2 inches, while a feature line gives 1 to 1.5 inch.
The shock uses an internal floating piston (IFP), which separates the oil from the nitrogen gas inside the body. The travel figure of 8.6 is printed without a unit, so compare it with your original shock if you need an exact match.
Key features
- Smooth body Fox 2.0 design in the rear position
- Internal floating piston separating oil and nitrogen gas
- Direct fit for a 1 to 2 in. lift range
- Travel of 8.6, stated without a unit
- Sold individually
Choosing a rear shock setup
Rear shocks on older Jeep Grand Cherokee and Comanche models share the work of controlling axle movement and body roll on rough roads. The internal floating piston separates the oil from the nitrogen gas, which helps the shock keep consistent damping under repeated hard use. Measure the installed height first and confirm it falls within 1 to 2 inches, then compare the collapsed and extended lengths with your current shock before choosing a unit.
A travel figure without a unit is hard to compare, so compare length and stroke instead. Inspect the seals, shaft and mounting bushings at each service, and replace worn rear bushings together with the shock to keep the axle location tight. Because this shock is sold individually, plan for a second unit if the other side also needs replacing.
Specifications
| Brand | Fox Racing Shox |
|---|---|
| Part number | 985-24-130 |
| UPC | 700007524761 |
| Series | Fox 2.0 PS Smooth IFP |
| Mounting position | Rear |
| Fitment type | Direct fit |
| Lift height | 1 – 2 in. lift |
| Lift height (feature line) | 1 – 1.5 inch |
| Extended length | 23.65 (no unit given) |
| Collapsed length | 15.05 (no unit given) |
| Travel | 8.6 (no unit given) |
| Sold as | Individual shock |
Vehicle fitment
It fits the 1986–1992 Jeep Comanche, the 1999–2004 Jeep Grand Cherokee (WJ) and the 1993–1998 Jeep Grand Cherokee (ZJ), in trims such as Base, Laredo, Limited and Sport.
Cherokee (XJ), Wrangler and Liberty models are not in this fitment. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Measure the installed height and confirm it falls within 1 to 2 inches, and within 1 to 1.5 inches for the narrower figure, before fitting.
What’s included
It is sold individually. Confirm whether mounting hardware is needed for your installation before starting.
