Overview

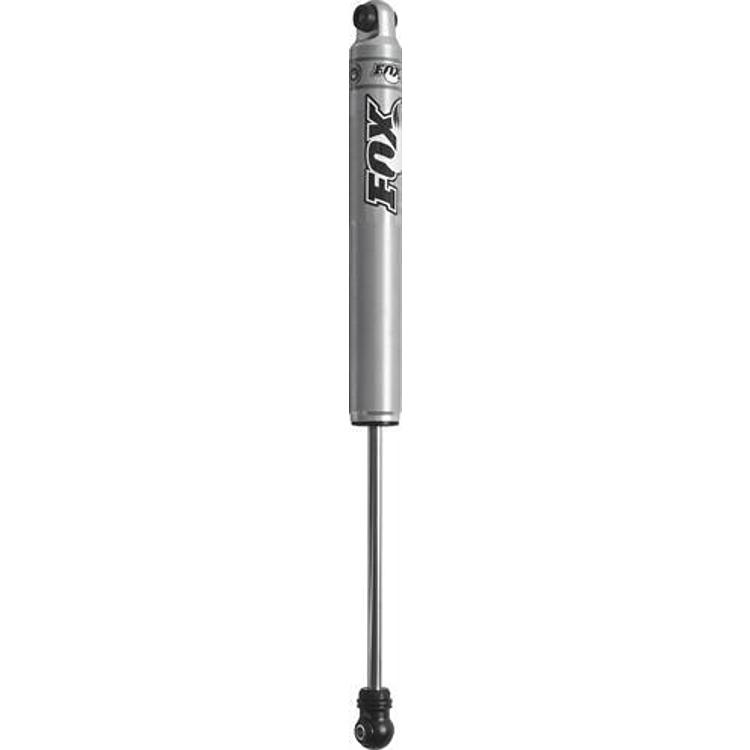

The Fox Racing Shox 985-24-132 is a rear Fox 2.0 PS Smooth IFP shock, sold individually. It fits the 1986–1992 Jeep Comanche, the 1999–2004 Jeep Grand Cherokee (WJ) and the 1993–1998 Jeep Grand Cherokee (ZJ). Lift coverage is given as 3.5 to 6 inches and as 3.5 to 4.5 inches, so measure your installed lift before ordering.
It uses an internal floating piston to keep the shock oil apart from the nitrogen gas in the body. Its extended length is 29.55, collapsed length is 18.45 and travel is 11.1, all printed without a unit.
Key features
- Rear mounting position for the three listed Jeep models
- Internal floating piston separating oil from nitrogen gas
- Stated direct fit for a 3.5 to 6 in. lift
- Travel of 11.1, the longest figure in this range
- Sold individually
Choosing and replacing a rear shock
Rear shocks control body movement when a Jeep crosses ruts, washboard and whoops. A worn unit usually shows up as bouncing after bumps, a nose-dive under braking or oil on the outside of the body. Before removing the old shock, measure its collapsed and extended lengths, note the stroke and compare the eye style with the replacement so the mounts line up without forcing.
Rear shocks are often replaced in pairs so damping stays even from side to side. If the Jeep has been lifted, check that the new unit still allows full droop and compression without hitting the bump stops or stretching the brake lines. Bushings and mounting hardware are worth inspecting during the same job, because a worn bushing can make a fresh shock feel loose.
- Check eye and stud style before removing the old shock
- Inspect bushings and bolts during the same job
- Look for oil seepage or a dented body
Specifications
| Brand | Fox Racing Shox |
|---|---|
| Part number | 985-24-132 |
| UPC | 700007524781 |
| Series | Fox 2.0 PS Smooth IFP |
| Mounting position | Rear |
| Fitment type | Direct fit |
| Lift height | 3.5 – 6 in. lift |
| Lift height (feature line) | 3.5 – 4.5 inch |
| Extended length | 29.55 (no unit given) |
| Collapsed length | 18.45 (no unit given) |
| Travel | 11.1 (no unit given) |
| Sold as | Individual shock |
Vehicle fitment
It fits the 1986–1992 Jeep Comanche, the 1999–2004 Jeep Grand Cherokee (WJ) and the 1993–1998 Jeep Grand Cherokee (ZJ), with trims such as Base, Chief, Laredo, Limited and Overland.
Cherokee (XJ), Wrangler and Liberty models are not in this fitment. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Shock length matters at the chosen lift, so confirm the length figures against your original shock before fitting.
What’s included
It is sold as one individual shock. Check the package contents against your installation before starting.
