Fox Racing Shox Fox 2.0 Factory Series Smooth Body Remote Reservoir Shock – 980-02-120-1

Fox Racing Shox

Shop Fox Racing Shox Shock Absorbers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fox 2.0 Factory Series remote reservoir shock, part 980-02-120-1
  • Externally adjustable, position-sensitive damping
  • Part of Fox’s bypass racing shock line
  • UPC 700007524591
  • Confirm length and mounting for your vehicle before choosing

Description

Overview

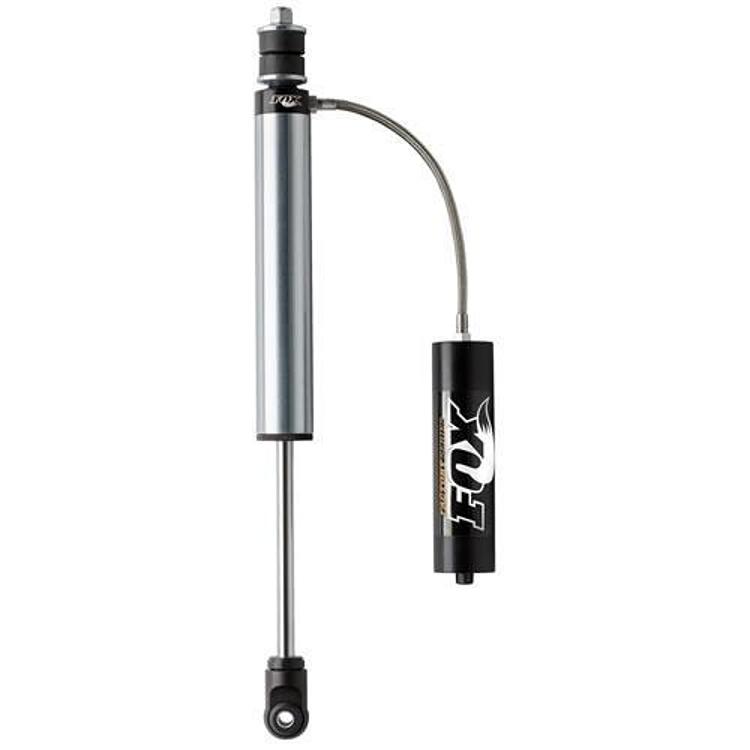

The Fox 2.0 Factory Series smooth body remote reservoir shock, part number 980-02-120-1, is a Fox Racing Shox shock in Fox’s bypass racing shock line. It is externally adjustable and position-sensitive, a tuning feature for off-road suspension.

Measure your current shock’s length, stroke and mounting points, then compare them with this part before choosing it.

Key features

  • Externally adjustable damping
  • Position-sensitive off-road design
  • Bypass racing shock design
  • Remote reservoir.
  • Tunable for varied terrain

Bypass shock tuning basics

A bypass shock routes oil through an external circuit instead of relying only on internal valving, which gives the owner a way to change damping without rebuilding the shock. Externally adjustable settings are usually set by feel on a familiar trail, then fine-tuned after a few runs. Start from the middle of the range and make one change at a time so the effect is clear.

Position-sensitive designs respond differently depending on where the shaft sits in its stroke, so a setting that feels right on a flat run can behave differently on a steep climb. Keep the reservoir hose and adjuster clear of rocks and tire contact, and check the adjuster for play after rough runs. Pair the shock with bushings and mounts that are in good shape, since loose ends change how it works.

  • Mark the stock adjuster position before changing it
  • Recheck clearance at full compression
  • Inspect mounts after rough trail days

Specifications

Brand Fox Racing Shox
Part number 980-02-120-1
UPC 700007524591
Series Fox 2.0 Factory Series
Design Bypass racing shock design
Reservoir Remote.

Vehicle fitment

Fitment is not confirmed for part 980-02-120-1. Confirm the length, stroke and mounting points against your vehicle before ordering.

Confirm your vehicle’s year, model and trim before ordering.

What’s included

Plan the mounting spot for the remote reservoir and check hose clearance before installing.

SKU: FOX980-02-120-1 Category:

Specification

Shipping weight 7.00 lbs
Package dimensions 31.50 × 17.50 × 8.50 in
brands

Questions & Answers

What is Fox part number 980-02-120-1?

It is the Fox 2.0 Factory Series remote reservoir shock with UPC 700007524591. It belongs to Fox's bypass racing shock line, with externally adjustable, position-sensitive damping.

Which vehicles does 980-02-120-1 fit?

Fit is not confirmed for a specific truck or Jeep. Confirm your vehicle's year, model and trim before ordering, then compare the length, stroke and mounting points with your current shock.

Is it externally adjustable?

Yes, it is externally adjustable. Its bypass racing design has damping that can be adjusted from outside the body, and the position-sensitive design is intended for off-road tuning.

How do I know when a bypass shock needs service?

Look for oil seepage at seals, uneven damping on the same bump, or an adjuster that moves without a setting change. Have a qualified shop check it before the next trip.

Can I run a bypass shock with stock bump stops?

It depends on the stroke and the vehicle. Check how far the axle travels before the body or stops contact the frame, and adjust stops if the shock changes the available travel.
