Overview

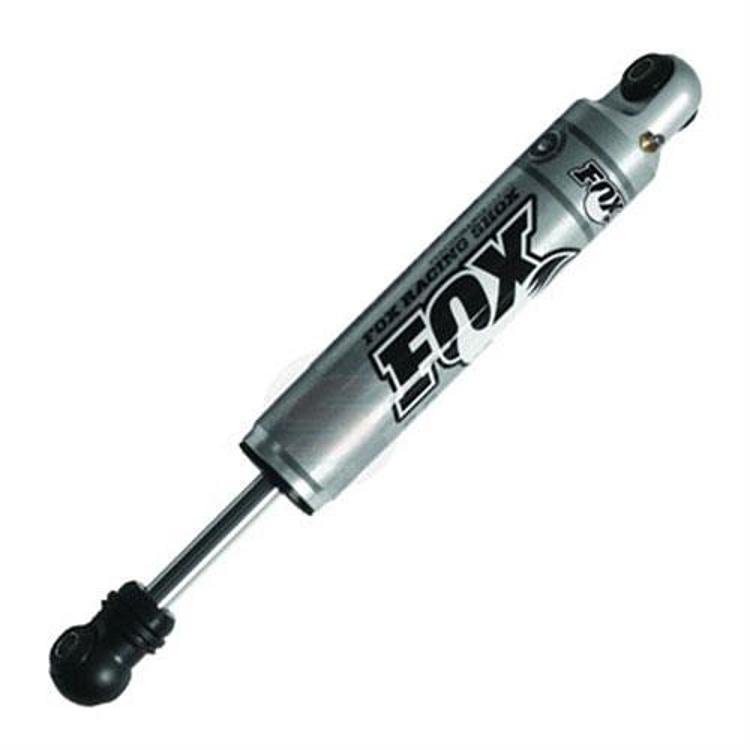

The Fox Racing Shox 2.0 Performance Series Smooth Body IFP Stabilizer, part number 985-24-072, is a steering stabilizer built to take load off the steering components on vehicles running oversized off-road tires. It helps keep the front end tracking straight and true.
Fox explains that large knobs and an open tread pattern on oversized tires tend to seek traction in any direction, which can make the front end wander on or off the road. Fox says its damping technology gives a comfortable on-road feel and predictable handling across a range of off-road conditions. It is supplied as a single-configuration stabilizer only.
Key features
- Internal Floating Piston (IFP) design separates the shock oil from the high-pressure, nitrogen-charged gas chamber.
- The IFP is intended to eliminate oil aeration, so the factory-tuned precision valving can work as designed.
- 5/8 inch alloy steel shock shaft adds strength and rigidity.
- NitroSteel hard-coated shafts resist pitting and scratches that can damage the shaft seals.
- Damping tuned for a comfortable on-road feel and predictable off-road handling.
- Single-configuration stabilizer; brackets and shock boot are not included.
Choosing a steering stabilizer
A steering stabilizer sits between the axle and the steering linkage and absorbs the side-to-side forces that build up when tires are large or heavily treaded. On trail, that damping helps the front wheels resist kickback from rocks and ruts. On the road, a well-matched unit keeps the steering from feeling loose at speed. The right stabilizer depends on tire size, steering geometry and how the vehicle is used, so confirm the tire and lift setup before comparing parts.
Stabilizers wear over time. Look for fluid weeping at the shaft seal, play at the mounting points, or a steering wheel that wanders more than it used to. Replacement often coincides with checking the tie rods, drag link and track bar bushings, since worn parts change how loads reach the stabilizer. A front-end alignment after any stabilizer or steering change keeps tire wear even.
- Measure collapsed and extended length before buying
- Check tie rod and drag link condition
- Inspect seals and mounts at each service
Specifications
| Brand | Fox Racing Shox |
|---|---|
| Part number | 985-24-072 |
| UPC | 70000681352 |
| Product line | 2.0 Performance Series, Smooth Body IFP |
| Material | Aluminum |
| Configuration | Single |
| Stabilizer type | Stabilizer only |
| Extended length | 18.55 in. |
| Collapsed length | 12.35 in. |
| Stroke | 6.2 in. |
| Shock shaft | 5/8 inch alloy steel |
| Shaft coating | NitroSteel hard-coated |
| Brackets | Not included |
| Shock boot | Not included |
Vehicle fitment
No vehicle years, makes, models or chassis codes are confirmed for this stabilizer. Confirm fit for your vehicle’s year, model and trim before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes

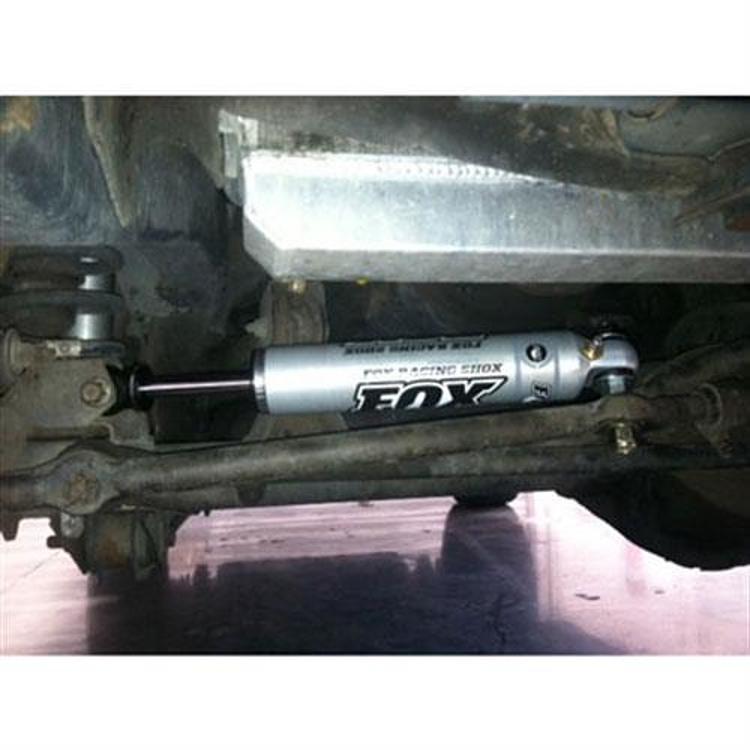

Brackets and shock boot are not included, so confirm the mounting hardware your steering setup needs before you start. After installation, have the front-end alignment checked, since a steering stabilizer affects how the front wheels track.
What’s included
A single-configuration stabilizer, supplied as stabilizer only.
Not included: Brackets and shock boot.
