Fox Racing Shox 2.0 Performance Series ATS Stabilizer – 983-02-088

Fox Racing Shox

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fox 2.0 Performance Series ATS steering stabilizer kit, part number 983-02-088
  • Complete kit with brackets and mounting hardware included
  • 5/8 inch shaft with 24 clicks of external adjustment
  • UPC 700006894631; fitment not listed

Description

Overview

The Fox Racing Shox 983-02-088 is a 2.0 Performance Series ATS steering stabilizer complete kit with brackets included. ATS stands for Adjustable Through Shaft, a single unit that takes the place of two conventional opposing stabilizers. Confirm fit for your steering setup before deciding whether the kit suits your vehicle.

The design cancels unwanted steering forces in both directions. The integrated reservoir adds fluid capacity and supports cooling during demanding use. The kit also includes relocating hardware that moves the stabilizer up and out of the way.

The 5/8 inch shaft and high-flow piston are the main hardware details.

Key features

  • Adjustable Through Shaft design that replaces two opposing stabilizers
  • 24 clicks of external adjustment to tune the steering feel

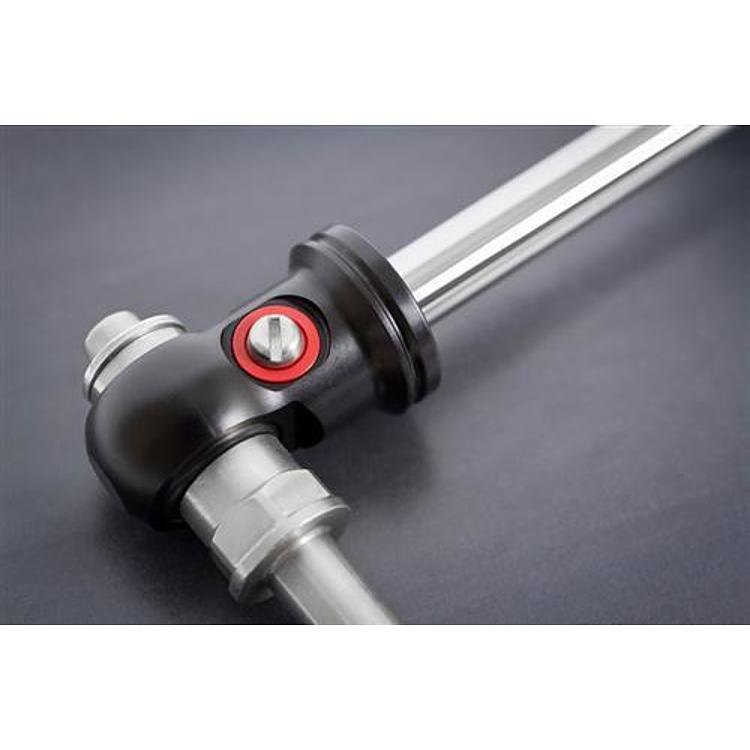

  • Integrated external reservoir for extra fluid capacity and cooling

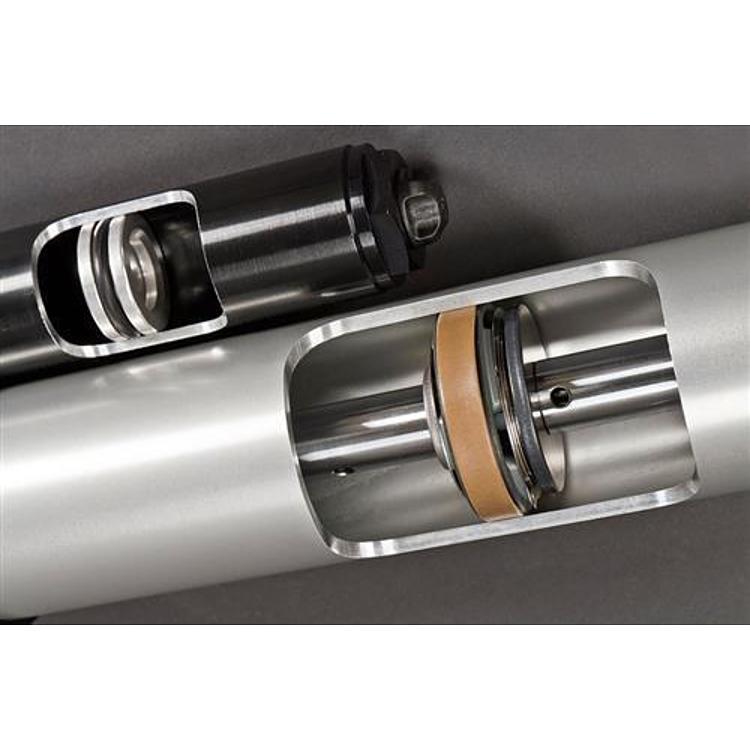

  • High-flow piston and aluminum body

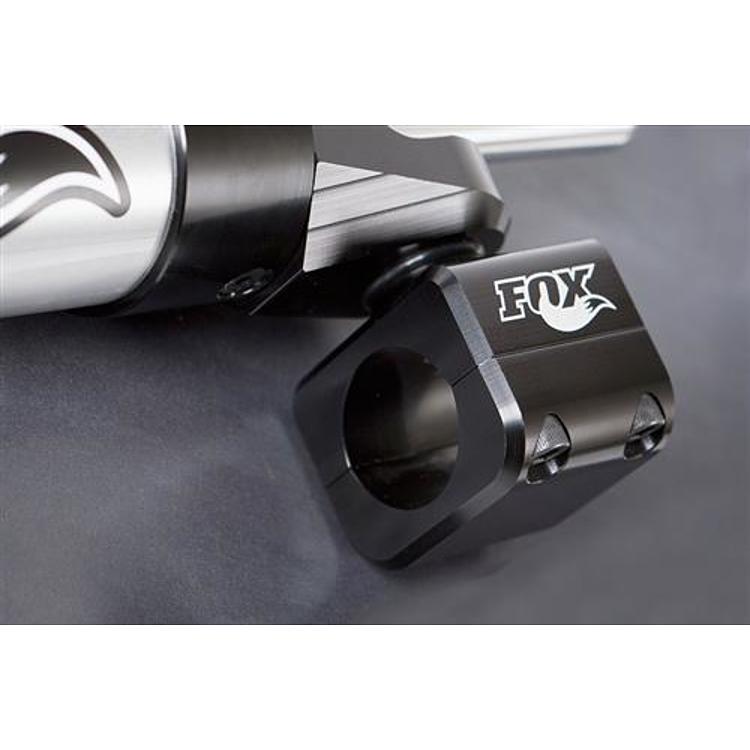

  • Relocating hardware with a new track bar relocation bolt and tie-rod mounting clamp
  • Mounting hardware included for a direct bolt-on install

Choosing an adjustable stabilizer

An adjustable through-shaft stabilizer works as a single damper that controls steering movement from both sides. Compared with two separate opposing stabilizers, one unit reduces the number of mounting points and linkage parts that can wear. That makes it attractive for vehicles with lift kits or larger tires, where steering geometry tends to change.

Before installing, confirm the track bar and tie-rod are in good condition, since a stabilizer cannot fix worn joints. Check that the brackets and relocating hardware clear the axle and steering components at full turn and full compression. Use a proper torque wrench on every fastener and recheck them after the first few drives.

Adjustment is easiest to set on a test drive. Make small changes to the external clicks, then recheck the steering feel on straight highway runs and slow off-road turns. Keep a note of the setting you choose so you can return to it after service.

  • Inspect track bar and tie-rod joints first
  • Check clearance at full turn
  • Torque all fasteners and recheck
  • Note the click setting after tuning

Specifications

Brand Fox Racing Shox
Part number 983-02-088
UPC 700006894631
Series 2.0 Performance Series
Type Complete kit
Stabilizer count Single
Shaft diameter 5/8 inch
Adjustment External, 24 clicks
Body Aluminum
Brackets Included
Shock boot Not included

Vehicle fitment

Check your vehicle’s year, model and trim against this kit before buying.

The kit includes a tie-rod mounting clamp, so match it to your steering setup. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The kit uses a new track bar relocation bolt and a tie-rod mounting clamp, so both are part of the install. Steering loads are significant, so confirm every bolt and clamp is secure before driving.

What’s included

The kit includes the ATS stabilizer, mounting brackets, relocating hardware and mounting hardware. Not included: the shock boot.

SKU: FOX983-02-088 Category:

Specification

Shipping weight 7.00 lbs
Package dimensions 18.00 × 3.00 × 3.00 in
brands

Questions & Answers

Does the Fox 983-02-088 ATS kit fit my Jeep?

Verify your year, model and trim against the kit's coverage before buying. Compare your steering setup with the brackets, relocating hardware and tie-rod mounting clamp before ordering.

Does this kit include brackets and mounting hardware?

Yes. Brackets and mounting hardware are included, along with the relocating hardware: a new track bar relocation bolt and a tie-rod mounting clamp. The shock boot is not included.

What does ATS mean on the Fox 983-02-088?

ATS stands for Adjustable Through Shaft. It is one unit that takes the place of two conventional opposing stabilizers, with 24 clicks of external adjustment and a 5/8 inch shaft.

Is an adjustable stabilizer a replacement for worn steering parts?

No. An adjustable stabilizer controls steering movement but does not repair worn tie-rod ends, ball joints or track bar bushings. Inspect those parts first, and replace any that are loose before fitting the kit so the stabilizer is not working against play.
