Overview

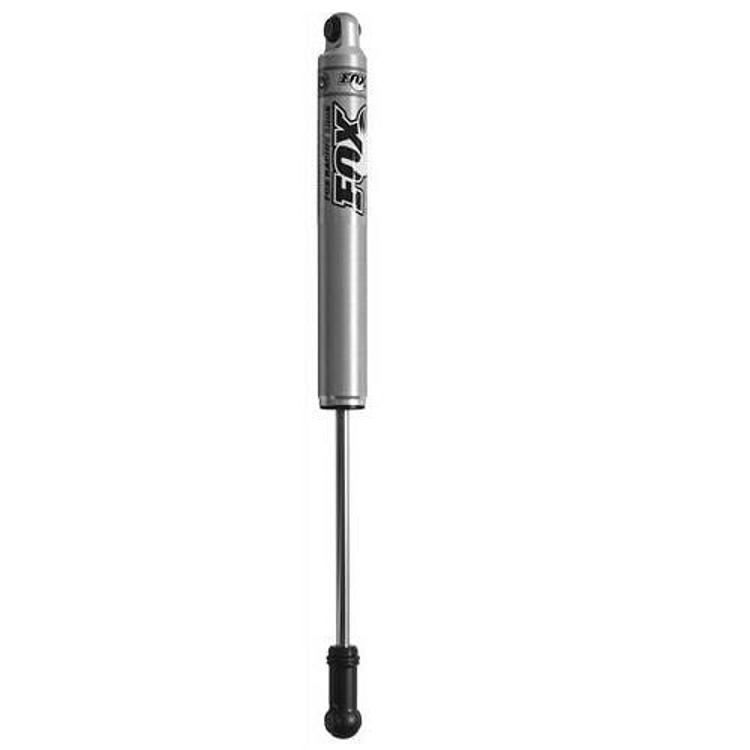

The Fox Racing Shox 985-24-006 is a 2.0 Performance Series Smooth Body IFP shock absorber with a bushing mount. Its extended length is 31.75 in and its collapsed length is 19.65 in. Fox positions the smooth body line as available in a broad range of sizes that can be valved for specific driving needs, with several mounting options.
IFP stands for internal floating piston, a design that separates the oil from the gas charge inside the shock. It is a universal fit shock, so the length, mount style and dimensions decide suitability.
Key features
- 2.0 Performance Series smooth body construction
- IFP (internal floating piston) design
- Gas charged, listed under the 2.0 Shock Series
- Bushing mount style
- Multiple mounting options across the smooth body range
- Valving can be matched to driving needs
Gas charged shock basics
A gas charged shock uses pressurized gas to limit foaming of the oil during repeated compression, which helps damping stay steady. The gas is sealed inside the body, so the shock should be handled with care and kept intact. Mount it with the bushings or hardware that match the vehicle’s eyes.
On a bushing mount, the bushing takes the movement at the eye, so worn bushings can add noise and play. Replace them when they crack or flatten. Plan mounting clearance around the shock’s full length and stroke, and check that it does not contact the body at full extension.
- Check bushings for cracks or flattening
- Keep the shock clear of heat sources
- Look for oil at the shaft after use
- Confirm clearance at full extension
Specifications
| Brand | Fox Racing Shox |
|---|---|
| Part number | 985-24-006 |
| UPC | 70000617856 |
| Series | 2.0 Performance Series Smooth Body IFP |
| Shock type | Hydraulic / gas charged |
| Mount | Bushing |
| Dimensions | 2.0 X 12.0 |
| Extended length | 31.75 in |
| Collapsed length | 19.65 in |
Vehicle fitment
It is a universal fit shock, not built for a single vehicle, so its length, mount style and dimensions decide whether it suits your application. Check the 2.0 X 12.0 dimensions and mounting against your vehicle before choosing an application.
Universal fit does not confirm compatibility with any particular vehicle. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Measure your current shock’s extended and collapsed lengths and its mount style before ordering, then compare them with the 31.75 in extended and 19.65 in collapsed figures for this Fox shock. Gas charged shocks hold pressurized gas, so never heat or open the body.
What’s included
Check the package contents for included hardware and accessories, including any mounting hardware needed for the bushing mount, before installing.
