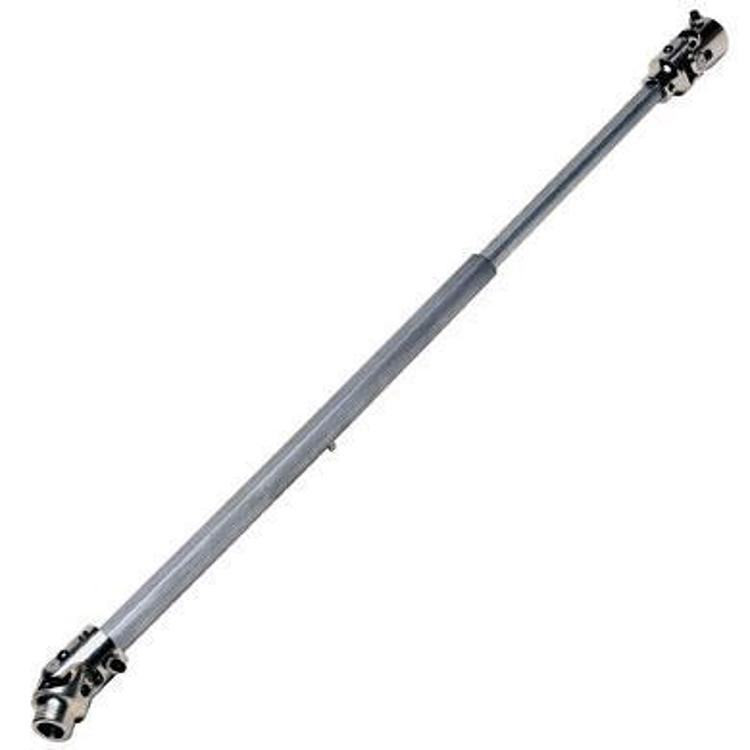

Flaming River Heavy-Duty Replacement Steering Shaft – FR1519-87P/M

Flaming River

Shop Flaming River Steering Shafts on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Heavy-duty replacement steering shaft from Flaming River
  • Works with factory or Flaming River columns, manual or power steering
  • Slip and collapse design with needle bearing style universal joints
  • Includes a 36DD shaft that can be cut to size and a protective bellow
  • Part number FR1519-87P/M; no vehicle years are named

Description

Overview

The Flaming River FR1519-87P/M is a heavy-duty replacement steering shaft that Flaming River says is designed to completely update the OEM steering system. The company notes factory shafts were never intended to handle bigger tires and body and chassis lifts.

It fits factory or Flaming River columns in manual or power steering setups. Confirm your column type and your vehicle’s year, model and chassis before ordering.

Key features

  • Slip and collapse action intended to eliminate binding from chassis flex on and off the road
  • Needle bearing style universal joint at the column end
  • Slip-universal joint at the steering box end
  • 36DD shaft that can be cut to size
  • Protective bellow included with the shaft
  • Works with factory or Flaming River columns, manual or power steering

Care and inspection

Steering shafts link the column to the steering box and carry the driver’s input through every joint. On a vehicle that has been lifted or fitted with larger tires, the joints and slip section work harder, so their wear tends to show up as play, clunking or a steering wheel that feels loose on center.

Inspect the boot and joints regularly. Look for torn bellows, grease leaks, cracked joint seals and any movement in a joint when you rock it by hand with the vehicle safely supported. Tighten clamps and pinch bolts after the first few trail runs, and recheck them after any suspension work.

Keep the bellow in place and clean. Dirt packed around the slip section can stiffen it, so wipe it down after mud runs and apply grease where the design calls for it. A shaft that binds when turned lock to lock needs checking before further driving.

  • Check the bellow for tears after off-road use
  • Look for play at both universal joints
  • Recheck clamp and pinch bolts after the first trail runs

Specifications

Brand Flaming River
Part number FR1519-87P/M
UPC 70000429367
Shaft 36DD, can be cut to size
Column compatibility Factory or Flaming River
Steering type Manual or power
Joints Needle bearing style at column, slip-universal joint at steering box
Protection Protective bellow

Vehicle fitment

Match the column connection and steering box end to your vehicle before cutting or installing. Confirm fit for your vehicle’s year, model and trim before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The 36DD shaft can be cut to size, so measure the installed length before cutting and do not trim it until the joints line up. Steering is safety-critical, so have the finished installation checked before driving.

What’s included

The shaft, its needle bearing style and slip-universal joints, and a protective bellow are described. No hardware or cutting tools are named.

SKU: FLMFR1519-87P/M Category:

Specification

Shipping weight 8.66 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Questions & Answers

Does the Flaming River FR1519-87P/M work with power steering?

Yes. It works with manual or power steering systems and with factory or Flaming River columns. Confirm your column type before ordering so the joints line up.

Can the 36DD shaft be cut to size?

Yes. The 36DD shaft can be cut to size. Measure the installed length first, and do not trim it until both joints line up with the column and steering box. Trimming too early can leave the shaft too short to fit.

Will it fit my Jeep or other vehicle?

Confirm fit for your vehicle's year, model and trim before ordering. Check that the column connection and steering box end match your steering setup, since the shaft works with factory or Flaming River columns.

Does it include a bellow?

Yes. A protective bellow is included with the shaft. The shaft also has needle bearing style universal joints at the column end and a slip-universal joint at the steering box end.

How can I tell if the steering shaft needs replacing?

Replace the shaft if you notice play or clunking at the joints, a torn bellow that lets in grit, or binding when the wheel is turned. Have the steering checked after any replacement.
