Fabtech 8 Inch 4 Link Lift Kit w/Dirt Logic SS 4.0 Coilovers & Rear Dirt Logic SS Shocks – K2141DL

Fabtech

Shop Ford F-250 Super Duty Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Lists the 2008–2015 Ford F-250 Super Duty and 2014 F-350 Super Duty
  • 8-inch 4-link system with Dirt Logic SS 4.0 coilovers and rear Dirt Logic SS shocks
  • 1-inch ID stainless Uniball arms with the upper ball joint removed
  • Tire fit of 295/70R17, 275/65R18 and 285/55R20
  • Factory aluminum suspension only; not for AutoRide, all-wheel drive or standard cab

Description

Overview

The Fabtech K2141DL is an 8-inch 4-link lift with Dirt Logic SS 4.0 coilovers and rear Dirt Logic SS shocks. It has a lift height range of 7 inches and up and fits 2008–2015 Ford F-250 Super Duty and 2014 Ford F-350 Super Duty trucks. Shocks are included.

Each arm replaces the factory arm directly and uses a 1-inch ID stainless American Uniball that fits the factory ball joint taper, so the upper ball joint is removed from the design. The 4340 heat-treated Uniball pin needs no spindle modification. The arms add caster to help after a leveling kit, and the chromoly tubing reduces flex compared with factory arms.

The system is designed for Dirt Logic 2.5 coilover shocks, which allow more wheel travel. It fits only factory aluminum suspension, including 2014 models.

Key features

  • 8-inch lift, range 7 inches and up
  • Upper ball joint removed by the arm design
  • 1-inch ID stainless American Uniball
  • 4340 heat-treated Uniball pin
  • Chromoly tubing reduces flex.
  • Dirt Logic SS 4.0 coilovers and rear Dirt Logic SS shocks

Upgrades that go with coilovers

Coilover shocks work best when the bump stops, sway bar links and track bar are in good condition. Worn bump stops can let the axle travel into the frame, while loose sway bar links can make the steering feel loose on rough roads. Replace these parts with the same care as the shocks.

Coilover shocks also benefit from regular cleaning and inspection. Wipe the shaft after off-road use, check the seals for leaks, and confirm the mounting hardware is tight. Sudden changes in ride height or uneven shock travel can signal damage, and a worn shock may need rebuilding or replacement.

Tire pressure, wheel weight and load all change how coilovers feel, so note any changes after installation and recheck the alignment.

Specifications

Brand Fabtech
Part number K2141DL
UPC 700007272185
Lift height 8 inches (range 7 inches and up)
Suspension type 4-link with coilovers
Uniball 1-inch ID stainless American
Tire and wheel fit 295/70R17 on 17×8, 275/65R18 on 18×8, 285/55R20 on 20×9; 4 1/2-inch and 5-inch backspacing
Suspension requirement Factory aluminum suspension only
Shocks Dirt Logic SS shocks included

Vehicle fitment

It fits 2008–2015 Ford F-250 Super Duty, including Cabela’s, FX4, Harley-Davidson, King Ranch, Lariat, Platinum, XL and XLT models, and 2014 Ford F-350 Super Duty.

Trucks with Factory AutoRide shocks, all-wheel drive or standard cab are not covered. The F-350 fit applies to 2014 only. Confirm fit for your vehicle’s year, model and trim before ordering.

Installation notes

Check the factory suspension for the aluminum or steel version before installing, since this kit is only for the aluminum type. The OEM wheel and tire cannot be used, so the tire and wheel combinations listed have to be used with minor trimming.

What’s included

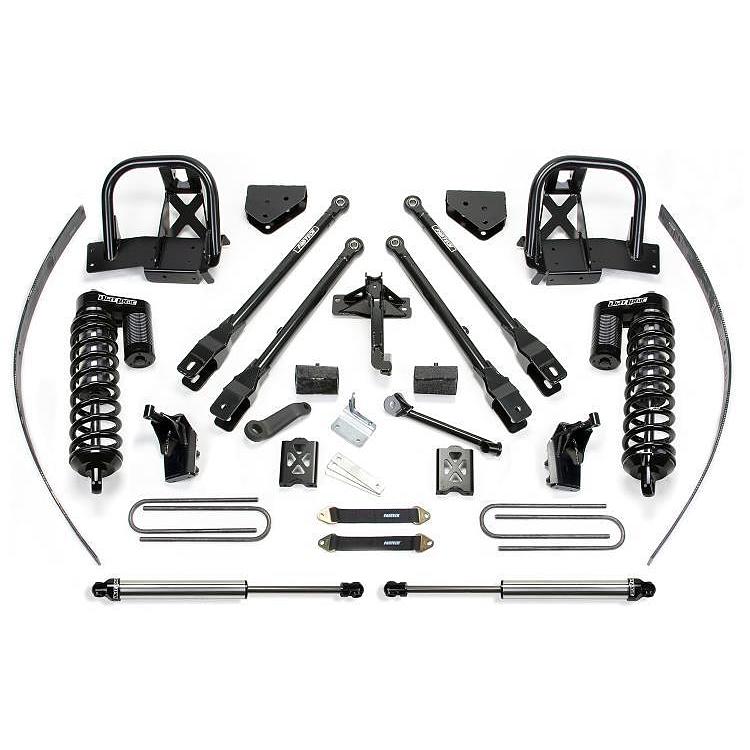

Four-link arms with 1-inch Uniball pins, Dirt Logic SS 4.0 coilovers at the front, the rear Dirt Logic SS shocks and the hardware for the kit.

SKU: FABK2141DL Category:

Specification

Shipping weight 484.00 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Ford F-250 Super Duty2008–2015Cabela's, FX4, Harley-Davidson Edition, King Ranch, Lariat, Platinum, XL, XLT
Ford F-350 Super Duty2014King Ranch, Lariat, Platinum, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K2141DL fit a 2014 F-350 Super Duty?

Yes, if the truck has factory aluminum suspension. The fitment covers 2014 Ford F-350 Super Duty trucks with that suspension type. Confirm the suspension type on your truck before ordering.

Will the K2141DL work with AutoRide shocks?

No. The kit does not fit trucks with Factory AutoRide shocks, so check your shock type before choosing this kit. Confirm your suspension setup before ordering.

Can I run stock wheels with the K2141DL?

No. The OEM wheel and tire cannot be used. Plan on 17x8, 18x8 or 20x9 wheels with the listed tire sizes, which need minor trimming.

How should I maintain coilover shocks?

Wipe the shaft clean after off-road runs, check for oil leaks at the seals, and keep dust boots intact. Re-check mounting hardware periodically. Rebuild or replace shocks that lose damping or leak.
